How Back Contact Solar Cells Eliminate Microcrack and Thermal Stress Failures

The solar industry has a hidden reliability problem. Traditional solar panels develop tiny fractures called microcracks that quietly steal efficiency and shorten panel life. These invisible failures cost installers warranty claims, hurt customer trust, and create unexpected replacement expenses.

Back contact (BC) cell architecture solves this problem at its source. By redesigning where electrical contacts sit on the solar cell, BC technology removes the main trigger point for cracks and thermal damage.

Here’s exactly how it works—and why it matters for your solar projects.

The Real Problem: Why Standard Solar Panels Crack

Microcracks Start Small but Grow Dangerous

Microcracks are fractures in silicon solar cells, often just 10-100 micrometers wide at first. You can’t see them with your eyes. They form during manufacturing, transport, installation, or from weather stress over time.

⚠ Research shows microcracks cause power losses up to 2.5% when cells don’t fully separate. When cracks do isolate cell sections, losses jump much higher.

More concerning: these tiny fractures often trigger hot spots where damaged cells overheat, potentially reaching temperatures above 50°C.

Safety Risk: Hot spots accelerate panel degradation and create fire risks. In extreme cases, localized heating can burn through silicon above 1,400°C, cracking front glass and causing permanent damage.

The Thermal Mismatch Problem

Standard solar cells face a fundamental physics challenge. Metal busbars and silicon expand at drastically different rates when temperature changes.

Every sunrise and sunset creates a thermal cycle. Metal contacts heat up and expand faster than silicon underneath. When temperatures drop at night, metal contracts faster. This constant push-pull creates internal tension at the metal-silicon interface.

The Numbers: Copper thermal expansion is roughly 17 × 10⁻⁶/°C. Silicon sits around 2.6 × 10⁻⁶/°C. That’s a 6.5× difference creating stress with every temperature change.

Over months and years, this repetitive stress concentrates at busbar edges and solder joints. That’s exactly where most microcracks begin.

Front-Side Contacts Create Stress Concentration Zones

Traditional solar cells place metal busbars and thin grid fingers directly on the sun-facing surface. These front contacts serve an important purpose—they collect generated electricity.

But they also create mechanical weak points:

• Rigid metal on brittle silicon. Busbars act like stiff lines across fragile material. Any mechanical load from snow, wind, or installation pressure concentrates stress along these metal strips.
• Soldering stress. Connecting cells requires soldering ribbons to busbars at temperatures above 300°C. This thermal shock introduces immediate stress, especially in ultra-thin wafers now common in manufacturing.
• Uneven thermal expansion. Front busbars heat unevenly in direct sunlight, creating thermal gradients across the cell surface. These gradients translate to localized stress points.

Studies using finite element analysis show thermal stress concentrates primarily in silver paste and adjacent solder, with maximum tensile stress at solder outer corners. These are exactly the initiation points for crack propagation.

How Back Contact Architecture Eliminates the Weak Point

Moving All Contacts to the Rear Side

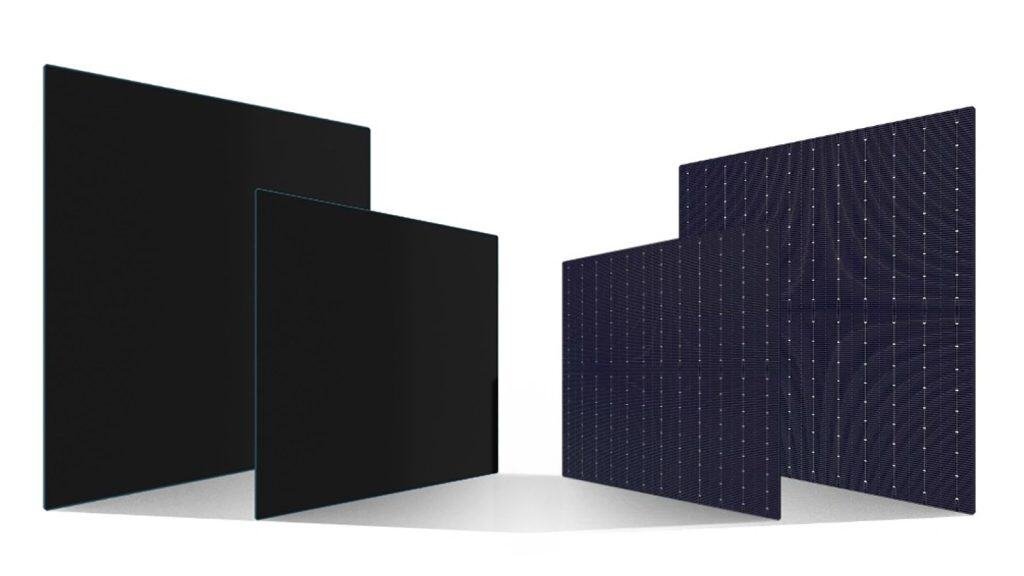

Back contact cells relocate both positive and negative electrical contacts to the cell’s rear surface. The front side facing the sun stays completely clean—just pure silicon with anti-reflective coating.

This simple architectural change eliminates the primary failure mechanism

• No front-side metal stress lines. Without busbars crossing the front surface, there are no rigid metal-silicon interfaces where cracks typically start.
• No localized thermal expansion zones. Heat from sunlight distributes evenly across the front silicon surface.
• No solder joint vulnerability. Front-contact cells require ribbons soldered across the active surface, creating tension during thermal cycling. BC cells eliminate this entire stress source.

Even Stress Distribution Across the Cell

Back contact designs spread mechanical and thermal stress more uniformly. Instead of concentrated pressure at busbar locations, force distributes across the entire rear surface.

★ Manufacturer testing indicates BC cells can reduce microcracking by 20-30% compared to standard front-contact designs.

For flexible solar applications where bending stress adds additional challenge, this improvement becomes even more critical.

Shorter, More Flexible Interconnections

Traditional cells require ribbons running from the back of one cell to the front of the next, creating mechanical tension and bending stress during lamination.

BC architecture uses rear-side pads with shorter, evenly distributed connections. These interconnections:

• Run straight instead of crossing from back to front
• Create less bending moment on thin silicon wafers
• Allow denser cell packing without stress buildup
• Reduce cumulative strain during thermal cycling

Better Temperature Performance Under Load

Temperature coefficient measures how much efficiency drops when solar panels heat up. Standard cells typically lose -0.39% to -0.45% of power output for every degree Celsius above 25°C (measured at Standard Test Conditions).

Quality back contact cells achieve coefficients around -0.26% to -0.29%/°C. In practical terms: a BC PV panel maintains higher output when temperatures rise during peak sun hours.

Technology	Temperature Coefficient	Performance in Hot Climates
Standard PERC	-0.39% to -0.45%/°C	Baseline
Back Contact (BC)	-0.26% to -0.29%/°C	Excellent
TOPCon	-0.30% to -0.31%/°C	Very Good
HJT	-0.21% to -0.27%/°C	Best-in-class

For context: BC technology offers excellent thermal performance among mainstream commercial options. For installations in hot climates—RV roofs baking under desert sun, boat decks in tropical waters, or commercial rooftops in summer—this performance advantage directly translates to more energy harvested over the panel’s lifetime.

The Electrical Advantage: Better Crack Tolerance

Multiple Current Pathways Prevent Isolation

Even when microcracks do occur (remember, some cracking during manufacturing and transport remains nearly impossible to eliminate entirely), BC cells handle them better.

Back contact designs feature interdigitated contact patterns on the rear. These create multiple parallel current collection paths. If a crack crosses one region, electricity can still flow through neighboring paths.

Compare this to front-contact cells: a crack crossing a front busbar can immediately electrically isolate large cell areas. That isolated section stops contributing power and often becomes a resistive hot spot consuming energy instead of generating it.

Reduced Hot Spot Risk

Front busbars don’t just create mechanical stress—they also cause optical shading. Each busbar blocks 2-5% of incoming sunlight from reaching active silicon.

BC cells eliminate all front-side shading. The entire surface absorbs light uniformly. This removes one trigger for hot spot formation and improves overall current matching.

Real-World Reliability Benefits

Extended Service Life

Standard solar panels typically warranty 25-year performance. Top-tier BC panels push warranties to 30+ years because the underlying technology genuinely lasts longer.

Fewer microcracks mean:

• Slower degradation rates over decades
• Lower failure probability from crack-induced hot spots
• Better power output retention approaching end of warranty period

Reduced Warranty Claims and Replacements

For distributors and installers, warranty claims create real costs: labor to diagnose, cost to source replacement solar panels, crew time to swap modules, lost customer confidence.

BC technology’s improved mechanical reliability translates directly to:

• Fewer premature failures requiring replacement
• Lower warranty claim rates from microcrack-related degradation
• Reduced logistics costs managing failed panels

Better Performance in Demanding Applications

Some solar installations face especially harsh conditions:

Application	Key Challenges	BC Advantage
Marine Environments	Constant vibration, salt spray, temperature swings	Mechanical robustness handles movement and corrosion
RV & Vehicle Mounting	Road vibration, flexing, varied climates	Even stress distribution handles travel conditions
Building-Integrated PV	Curved facades, aesthetic requirements	Clean front surface + mechanical reliability
Remote Off-Grid	Difficult maintenance access, critical reliability	Longer service life reduces replacement needs

Manufacturing Quality Matters

Not all “back contact” solar panels deliver the same reliability benefits. Manufacturing quality determines whether you get genuine performance advantages or just marketing claims.

What to Look For:

1. Interdigitated Contact Precision – Advanced laser patterning and careful passivation techniques
2. Encapsulation Material Selection – High-quality EVA or POE encapsulants with appropriate flexibility
3. Rigorous Quality Testing – EL imaging before and after lamination, thermal cycling beyond IEC 61215

Quality Testing Checklist:

• Electroluminescence (EL) imaging before and after lamination
• Thermal cycling tests beyond standard IEC 61215 requirements
• Mechanical load testing simulating snow, wind, and installation stress

Technical Specifications to Verify

When evaluating BC panels for your projects, look beyond marketing claims:

Specification	What to Look For	Quality Benchmark
Efficiency Rating	Laboratory vs. commercial performance	Lab: up to 27.81% | Commercial: 24-25%
Temperature Coefficient	Performance in hot conditions	Better than -0.30%/°C
Mechanical Load Rating	Snow/wind resistance certification	≥5,400 Pa | Premium: 7,000+ Pa
Degradation Warranty	Annual degradation after year 1	≤0.4% annually

The Bottom Line: Engineering Out Failure Points

Back contact cell architecture doesn’t just incrementally improve solar panels—it fundamentally redesigns where and how failures occur.

By moving electrical contacts off the stress-prone front surface, BC cells eliminate:

• The metal-silicon interfaces where most microcracks originate
• Thermal expansion mismatches that fatigue cells over years
• Solder joint stress from front-to-back interconnections
• Hot spot triggers from front busbar shading

The result: Panels that genuinely last 30+ years instead of degrading prematurely from preventable mechanical failures.

Making the Right Choice for Your Projects

Solar technology continues advancing rapidly. Back contact represents one of the most significant reliability improvements for applications demanding long service life and consistent performance.

The key isn’t choosing BC panels for every project—it’s matching technology to requirements:

For marine, RV, remote, or mission-critical applications where replacement difficulty or reliability requirements justify premium investment, BC technology delivers measurable value through reduced failure rates and extended service life.

For standard residential and commercial installations in moderate climates, evaluate whether the reliability improvements justify cost differences for your specific customer needs.

For projects requiring maximum efficiency in limited space or premium aesthetics, BC’s combination of high efficiency and clean appearance often proves worth the investment.
