| Model | CLM-020M-F |
|---|---|
| Solar Cell | PERC |
| Dimensions LxWxH | 430×345×2.5mm, Customizable |
| Weight | 1.08kg |
| Glass | ETFE |
| Pmax | 20 Watts |
| Vmp | 23.6V |
| Imp | 1.02A |
| Voc | 23.6V |
| Isc | 1.10A |
| Junction Box | ≧ IP67 Rated |

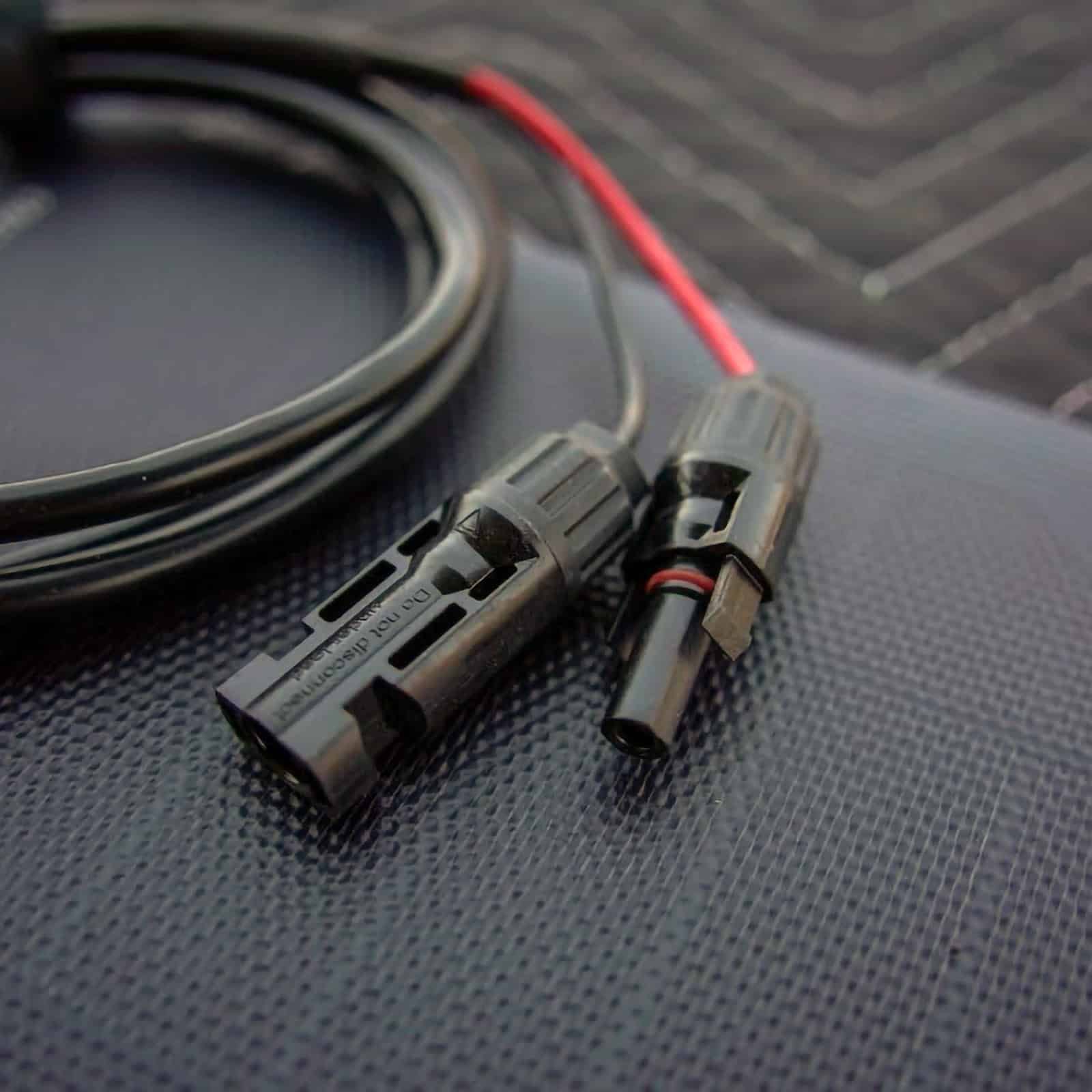

| Connectors & Cable | MC4, 2.5mm², Length Customizable |
| Operating Temperature | -40℃ ~ +85℃ |
| Max. Series Fuse Rating | 5A |
| Maximum System Voltage | 600V DC |
| Pcs in CTN/Pallet/40HQ | 600/6000/12000 |
| Product Warranty | 3 – 5 Years |
| Performance Warranty | 15 Years |
| Certificates & Standards | IEC 61215 & IEC 61730 |

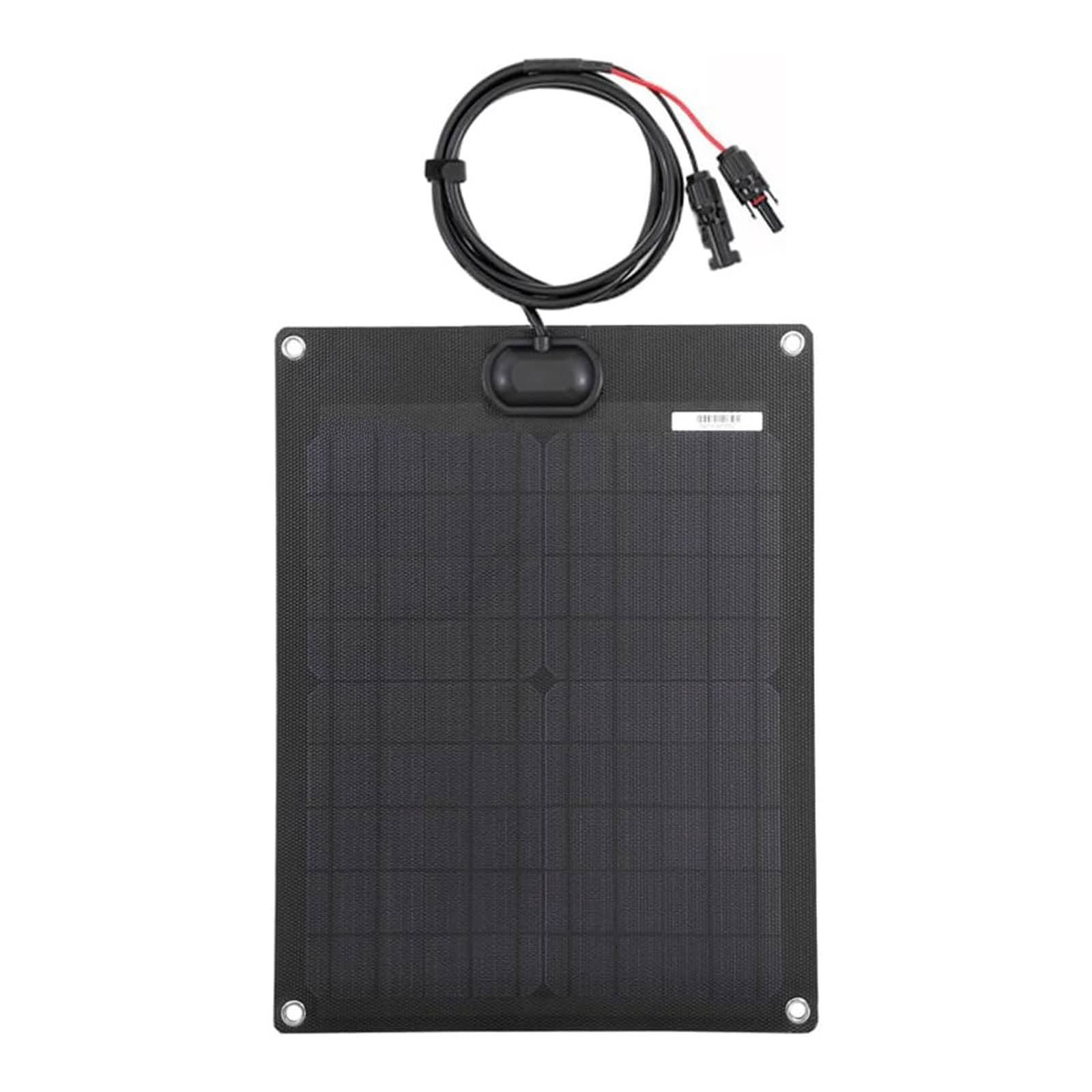

20W ETFE Flexible Solar Panel – Lightweight Power Solution
Lightweight. Durable. Built for Custom Integration
This 20W flexible ETFE solar module combines high-output mono cells with rugged, lightweight construction—perfect for OEMs, energy system integrators, and buyers seeking off-grid, curved-surface solutions. The ETFE front film ensures excellent self-cleaning, UV resistance, and long-term clarity, helping reduce maintenance costs.
Looking for custom sizes, power ratings, or branded packaging? OEM/ODM welcome.
$0.45
Reliable Solar Power That Actually Works
This 20W flexible solar panel gives you real power without the weight problems. It’s super thin, weighs just 2.4 pounds, and bends to fit curved surfaces. Perfect for marine, RV, and mobile applications.
Why This Solar Panel Outperforms Others
Built for Harsh Conditions
- Works great on boats, RVs, and campers
- Handles bad weather and salt water
- Won’t crack or break like glass panels
High-Efficiency Performance
- High efficiency means more power per square foot
- Self-cleaning surface reduces maintenance
- Installs in minutes with basic tools
- No heavy structural work needed
Advanced ETFE Technology
- Lets 95% of sunlight through (better than glass)
- Stays clean in rain and wind
- Won’t fade or peel over time
- Resists heat, fire, and UV damage
Four Easy Installation Options
Install these panels using:
- Adhesive backing for permanent mounting
- Pre-drilled holes with screws or bolts
- Zip ties or velcro for removable setups
- Grommets for fabric or canvas surfaces
No special training required. No expensive roof modifications needed.
Key Applications
Marine Use: Salt-water resistant design handles ocean conditions.
RV Industry: Lightweight design doesn’t affect fuel economy or handling.
Mobile Power: Flexible design fits curved roofs and irregular surfaces.
Fleet Applications: Easy way to add solar power to work vehicles.
Technical Specifications
- Dimensions: 17″ x 12″ x 0.1″ thick
- Weight: Only 2.4 pounds
- Output: 20 watts at 19.6 volts
- Bend radius: Up to 30 degrees safely
- Waterproof rating: IP67
The Real Advantage
This solar panel ships lighter, installs faster, and works where glass panels fail. Reliable power generation with minimal installation hassle.
Couleenergy – Custom Solar Panels that offer Maximum flexibility for real-world applications.
