Remark: customized frame color and cable length available upon request.
Module Type: CL100M6-36 Series
Brand: Coulee (OEM Available)
Maximum Power: 100Watt / 105Watt / 110Watt / 120Watt
Lead Time: In 7 working days for quantity ≤ 20000pcs
Lead Time: Negotiable when quantity ＞ 20000pcs
Shipping: By air or by sea from China
Payment Terms: T/T, L/C, D/P, Paypal, Western Union

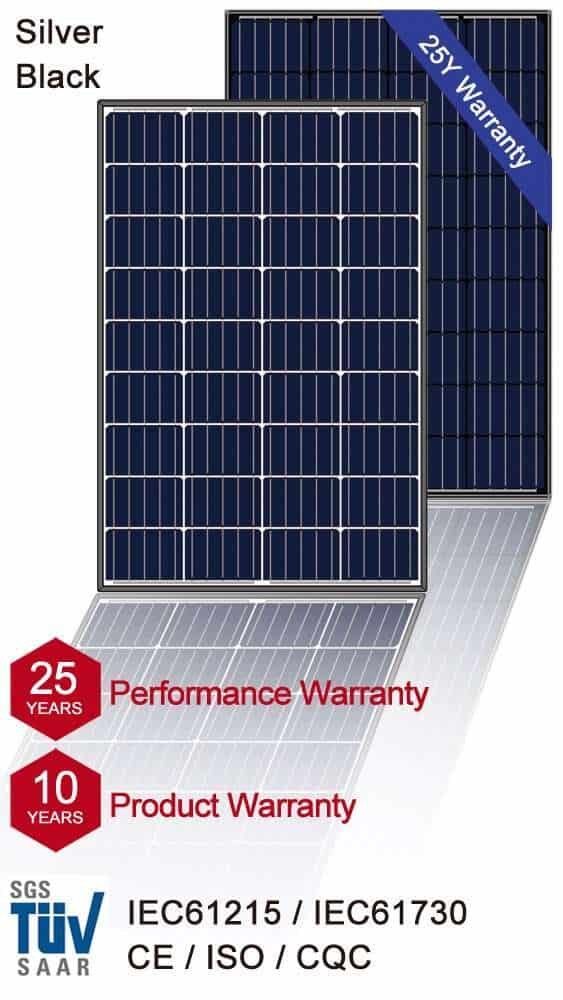

10-Year Product Warranty
25-Year Performance Warranty
IEC61215, IEC61730 Certified Product

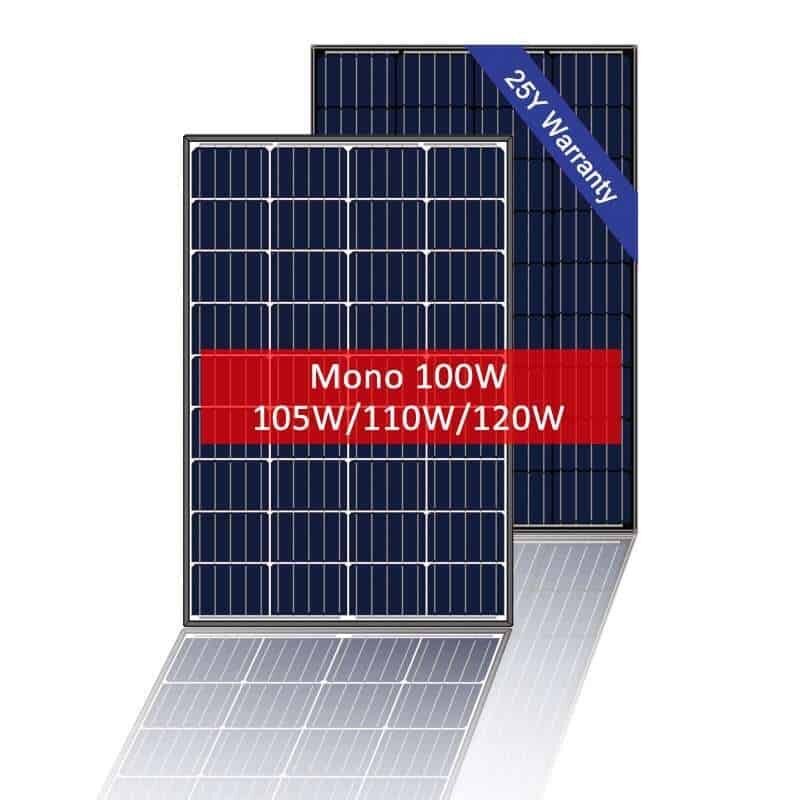

Coulee Limited’s TUV certified 100watt, 105watt, 110watt, 120watt monocrystalline solar panel (CL100M6-36 / CL105M6-36 / CL110M6-36 / CL120M6-36) is ideal for recharging small electronics while being away from the Power Grid. This exceptional panel is small and light-weight, making it easy to store, reposition when needed. Featuring an IP75 junction box with MC4 plugs, connecting the panel to a charge controller or additional panels is as easy as 1-2-3. The panel can withstand heavy wind load 2400Pa & snow load 5400Pa. Start producing free, clean power from the sun with Coulee Limited solar panels!
Specifications
| Module Type | CL100M6-36 | CL105M6-36 | CL110M6-36 | CL120M6-36 |
|---|---|---|---|---|
| Maximum Power at STC - Pmax | 100Wp | 105Wp | 110Wp | 120Wp |
| Maximum Power Voltage - Vmp | 18.1V | 18.2V | 18.3V | 18.4V |
| Maximum Power Current - Imp | 5.52A | 5.77A | 6.01A | 6.52A |
| Open Circuit Voltage - Voc | 22.1V | 22.2V | 22.3V | 22.5V |
| Short Circuit Current - Isc | 5.86A | 6.12A | 6.31A | 6.85A |
| Temperature Coefficients of Pmax | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ |
| Temperature Coefficients of Voc | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ |
| Temperature Coefficients of Isc | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC:
Irradiance: 1000W/m²
Cell Temperature: 25°C
AM = 1.5
NOCT:
Irradiance: 800W/m²
Abmient Temperature: 20°C
AM = 1.5
Wind Speed: 1m/s
Packaging:
4pcs per Carton
Customized Package Available
Mechanical Characteristics
| Cell Size (mm) | 156.75 × 104.5 Mono |
|---|---|
| Module Dimensions (mm) | 1000 × 670 × 30 |
| Number of Cells | 36 (9 × 4) |
| Moduel Weight (kg) | 8.0 |
| Front Glass | 3.2mm,LowIron,TemperedGlass |
| Backsheet | TPT (White OR Black) |
| Frame | AnodizedAluminiumAlloy (Silver OR Black) |
| Junction Box (Protection Degree) | ≥ IP67 |
| Cables & Plug Connectors | 4.0mm² & MC4 Compatible, CustomizedLength |
Operating Conditions
| Max. System Voltage | 1000VDC (IEC) |
|---|---|
| Operating Temperature Range | -40℃~+85℃ |
| MaximumSeriesFuseRating (A) | 10 |
| Max. Static Load , Front (e.g., snow) | 5400Pa |
| Max. Static Load, Back (e.g., Wind) | 2400Pa |
| Max. Hailstone Load | 23m/s, 7.53g |
| NOCT | 45 ± 2℃ |
| Application Class | Class A |
