How PL and EL Imaging Keep Your Solar Panels Performing at Their Best

Have you ever wondered how solar companies make sure your solar panels will actually last 25+ years? Think about it – your car gets regular check-ups, so shouldn’t your solar investment get the same attention?

Here’s the thing: the most dangerous solar panel problems are ones you can’t see with your naked eye. That’s where special imaging tools come in. Two techniques – Photoluminescence (PL) and Electroluminescence (EL) imaging – act like X-rays for your solar panels. They reveal hidden issues before they cause real problems.

Let’s explore how these technologies work, when to use each one, and why they matter for your solar investment.

How These Technologies Work: The Basics

Photoluminescence (PL) Imaging: Using Light to Find Problems

Imagine shining a special flashlight on a solar panel and watching it glow back at you. That’s basically how PL imaging works!

Here’s the simple version: We shine a super bright light (usually a laser or powerful LED) onto the solar cells. This light energizes the electrons in the material. When these excited electrons calm down, they release light we can capture with a special camera.

Think of it like those glow-in-the-dark stars on your ceiling. The brighter areas in a PL image show healthy parts of the solar cell. The darker spots? Those are trouble zones with defects. (This is a simplified analogy for a complex quantum process, but it helps visualize how PL imaging works.)

Quick Fact: PL imaging can detect defects as small as 10-50 micrometers in size – many even smaller than a human hair (which is typically 50-100 micrometers thick). This incredible resolution is why PL is so powerful for spotting problems early!

The best part about PL imaging is that it’s completely hands-off. We don’t need to hook up any wires or touch the panels at all. This makes it perfect for checking raw materials before they even become solar panels.

Electroluminescence (EL) Imaging: Making Solar Panels Light Up

EL imaging works more like testing a light bulb. We connect the solar panel to electricity and make it light up from the inside out.

When we send electricity through the solar panel, it causes the solar cells to emit a faint glow (mostly infrared light that we can’t see with our eyes). A special camera captures this glow to reveal problems.

This technique shows us how electricity actually flows through the panel. Areas with poor connections or damage appear dark in the images.

The Big Differences: PL vs EL at a Glance

Feature	Photoluminescence (PL)	Electroluminescence (EL)
Excitation method	Light (laser/LED)	Electricity (forward bias)
Contact needed	No – contactless	Yes – electrical connections
Best application	Material quality, early manufacturing	Finished panels, field diagnosis
Primary defects found	Material impurities, bulk lifetime issues	Electrical connections, microcracks

How They Work:

• PL uses light: We shine light on the panel and watch what glows back. No wires needed!
• EL uses electricity: We hook up the panel to power and make it glow from within.

What They Show Best:

• PL images reveal material quality issues and early defects. It’s like checking the ingredients before baking a cake.
• EL images show electrical problems and connection issues. It’s like testing if all the lights on your Christmas tree work.

When to Use Each:

• PL works great for raw materials, half-finished products, and even complete solar panels.
• EL works best for finished solar panels and installed systems where we need to check electrical performance.

Real-World Uses: From Factory to Rooftop

In the Factory: Making Better Solar Panels

Catching Problems Early with PL

Have you ever noticed how finding a mistake early saves time and money? That’s exactly why PL imaging is so valuable in solar manufacturing.

PL lets us check solar materials before we even make them into cells. Think of it like examining flour before baking bread. We can spot bad ingredients early and set them aside.

With PL imaging, we can:

• Check raw silicon blocks for quality
• Sort wafers based on how well they’ll perform
• Find tiny cracks invisible to the human eye
• Identify material problems that would waste production time

When we use PL to reject poor materials early, we save money and increase the quality of our final products. It’s like having Superman’s X-ray vision for solar manufacturing!

Industry Example: Studies have shown that implementing PL imaging in solar production lines can reduce material waste by 20-30% and improve solar panel efficiency. A recent case study showed that one manufacturing facility achieved ROI in under a year after adding PL screening to their quality control process.

Final Quality Checks with EL

EL imaging works like a final exam for solar panels. Before panels leave the factory, we hook them up to electricity and check for problems like:

• Cracks that happened during assembly
• Poor soldering connections
• Broken internal wiring
• Uneven performance across cells

Companies using EL testing have cut warranty claims by up to 30%. That’s because they catch and fix problems before panels ever reach customers.

In the Field: Keeping Solar Systems Healthy

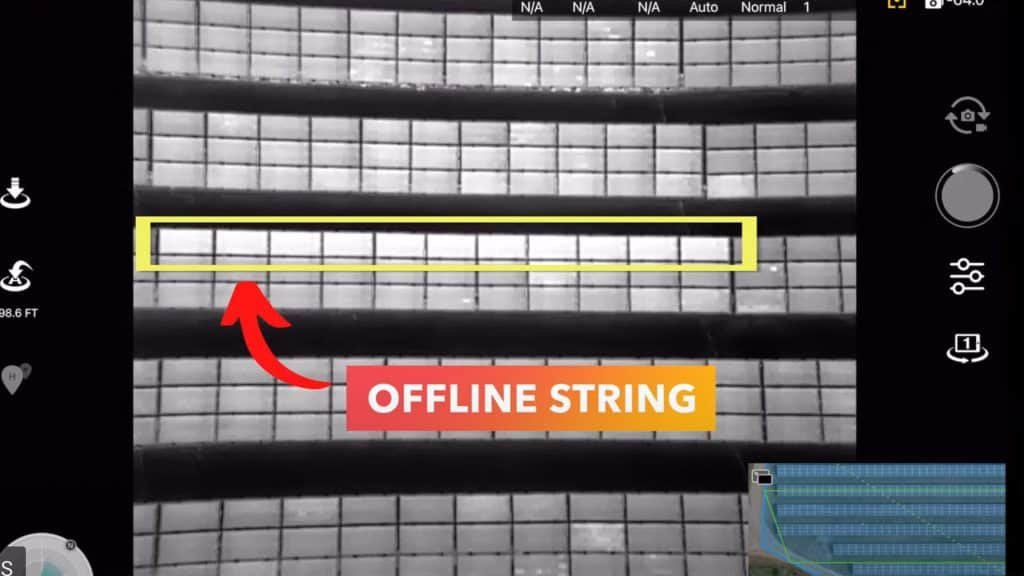

Using EL to Diagnose Installed PV Panels

Ever wonder how solar technicians figure out what’s wrong with underperforming PV panels? EL imaging is their secret weapon!

After solar panels are installed on your roof or in a solar farm, EL helps solve important problems:

1. Was it damaged during shipping or installation? EL can show the difference between factory defects and installation damage. This matters for warranty claims.
2. How is the system aging? EL can track tiny cracks as they grow over time. This helps predict problems before power output drops.
3. Did that hailstorm cause invisible damage? EL can reveal hidden cracks from weather events, which helps with insurance claims.

Research has shown that EL imaging can provide critical evidence in warranty disputes by differentiating between manufacturing defects and installation damage. In a documented case study, EL testing revealed significant installation-related damage that wasn’t visible to the naked eye, enabling the project purchaser to negotiate appropriate compensation.

New Ways to Use PL in the Field

New technology is making PL imaging possible for installed solar systems, too. Special equipment like the PLatypus system can check panels at night without disconnecting any wires.

Even more exciting, researchers have figured out how to do PL imaging during daylight hours! This means solar farms can be checked without shutting them down, saving time and money.

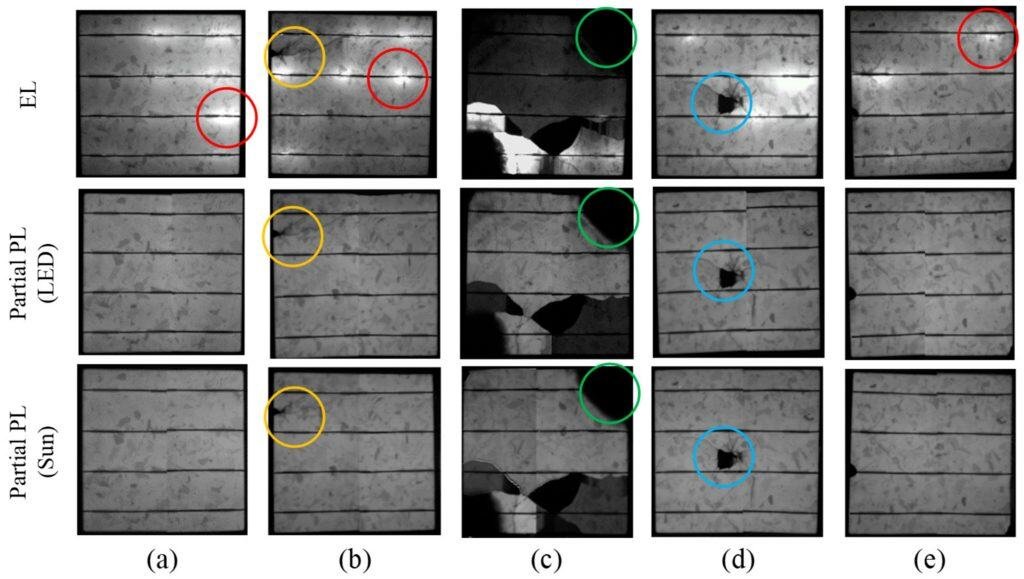

What Can Each Technology Actually Find?

Finding Different Types of Problems

Think of PL and EL as different medical tests – each one spots different issues:

PL is best at finding:

• Impurities in the silicon material (like finding dirt in your flour)
• Tiny cracks before metal contacts are added
• Areas that will convert less sunlight to electricity
• Problems created during manufacturing processes

EL is best at finding:

• Poor electrical connections
• Broken internal wiring
• Degradation from high voltage exposure
• Breaks in the metal grid lines
• Cracks that happened after manufacturing

Modern equipment can spot extremely tiny problems – some as small as a human hair!

Real-World Practicalities

The Equipment Needed

For PL systems, you need:

• Very bright lights (like powerful LEDs or lasers)
• Special cameras that can see infrared light
• Filters to separate different types of light
• A dark room or way to block outside light

For EL systems, you need:

• Power supplies to send electricity through the panels
• Special infrared cameras
• Ways to safely connect electricity to panels
• A dark environment (or special equipment for daytime testing)

Speed and Factory Use

PL checking can happen right on the production line without slowing things down. The fastest systems can check over 3,600 wafers every hour! That’s one wafer per second.

EL testing usually happens at the end of production or for sample testing. It’s slower because we need to connect each panel to power. In solar farms, modern systems can test about 1,500 panels in a single night.

Did you know? The open-source PLatypus system developed by NREL has made high-quality PL imaging much more affordable, providing 100-megapixel module images at a fraction of traditional costs.

Cost Comparison

PL tends to cost less over time because:

• It doesn’t need replacement parts that wear out
• It requires fewer workers to operate
• One machine can check materials at different stages

New designs like the PLatypus system have made PL much more affordable. This helps smaller companies compete in the solar market.

Beyond Just Finding Problems

Modern PL and EL systems don’t just find defects – they provide detailed performance data:

PL can tell us:

• How efficiently electrons move through the material
• Which parts of a cell will perform best
• How manufacturing changes affect quality
• How quickly panels might degrade over time

EL can tell us:

• Where electricity flows poorly
• What percentage of a panel is damaged
• How a panel will perform in real conditions
• Exactly how much power a panel will lose from defects

Some new systems even use artificial intelligence to predict panel performance just from these images!

What’s New and What’s Next

Cool New Technology Developments

The solar testing world is changing fast with exciting innovations:

• Daytime testing is now possible: “We can now do EL tests during the day!” This means solar farms don’t have to shut down for testing anymore.
• All-in-one testing systems: Imagine a Swiss Army knife for solar testing. New machines can do PL, EL, and other tests all with one piece of equipment. This saves time and money.
• No-contact PL for installed systems: Researchers have figured out how to do PL testing without disconnecting panels. They just use the system’s inverter and a camera.
• AI-powered defect spotting: Computers can now automatically find and classify defects in images. This is much faster than having humans look at thousands of pictures.

Working with Other Testing Methods

Think of PL and EL as part of a complete health check-up for solar panels. Other tests add even more information:

Infrared Camera Testing (IR):

• Finds hot spots where panels are overheating
• Works while panels are operating normally
• Can quickly scan large solar farms from drones
• Doesn’t show details as clearly as PL or EL

Lock-In Thermography (LIT):

• Uses special heat patterns to find hidden problems
• Great for finding delamination (layer separation)
• Shows how heat moves through the panel
• Complements what EL shows about electrical issues

Using these methods together gives us the complete picture of panel health. It’s like how doctors use X-rays, blood tests, and physical exams together.

Real-World Application: According to field studies, combining multiple imaging techniques (EL, PL and IR) can detect performance issues that wouldn’t be found through standard visual inspections. In large solar installations, this comprehensive approach has successfully identified the root causes of significant power losses and guided targeted repair strategies, avoiding costly full-array replacements.

Making Smart Choices: Which Test Should You Use?

When PL Makes More Sense

PL testing is your best bet when:

• You’re checking raw materials before making PV panels
• You need to inspect 100% of products on a production line
• You’re looking at cells that already have metal backing
• You want to check panels without connecting wires
• You’re developing new types of solar cells

When EL Is the Better Choice

EL testing works better when:

• You’re doing final quality checks on finished solar panels
• You’re troubleshooting power output problems
• You need evidence for warranty claims
• You want to document shipping or installation damage
• You’re monitoring how panels age over time

Pro Tip: If you’re buying solar panels, ask your supplier if they use both PL and EL testing in their quality control process. Panels that have passed both tests are much less likely to develop problems later.

Smart Ways to Use Both Technologies

Want the most complete quality control? Here’s how to use both techniques wisely:

1. Use them at different stages

• Start with PL for checking raw materials and early manufacturing
• Switch to EL for final product testing
• Consider combo systems if you do research and development

2. Save money while getting good results

• Use PL to test 100% of materials early on
• Use EL to check random samples of finished panels
• Save detailed testing for your most valuable products

3. Decide what to do in-house vs. outsource

• Consider hiring outside labs for occasional testing
• Build your own testing capabilities for core manufacturing
• Partner with specialists for checking installed systems

Wrapping It Up: Why Both PL and EL Matter for Better Solar Panels

Think of PL and EL like two different tools in a toolbox – each has its special job, but together they get the whole job done right.

PL is great for checking materials before and during manufacturing without touching anything. EL shows how the finished PV panel actually performs electrically. They’re perfect partners in making sure solar panels work right and last long.

For solar makers, using both tests at the right times leads to better products. For people who buy and maintain solar systems, knowing about these tests helps you make smart decisions about quality.

As solar technology keeps improving, these imaging tools will only get better too. They’ll help the whole industry make more reliable panels that produce more power for longer periods.

What’s Your Next Step?

Are you planning a solar project? Wondering about the quality of panels you’re considering? Have questions about how these tests relate to warranties?

Talk to Our Solar Experts

Explore Our Resources

Frequently Asked Questions

1. What do PL and EL testing actually tell me about the quality of solar panels?

PL and EL tests are like health check-ups for solar panels. PL testing reveals the quality of the materials used, while EL testing shows how well electricity flows through the finished panel. Together, they identify hidden defects that might cause problems down the road. Panels that pass both tests are much more likely to perform better and last longer—exactly what you want from your solar investment.

2. Do all solar panel manufacturers use these testing methods?

Not all manufacturers do, and that’s an important distinction. High-quality manufacturers use both PL and EL testing throughout their production process, while budget manufacturers might skip these steps to cut costs. When shopping for panels, ask if both tests are part of the quality control process—it’s a good indicator of a company’s commitment to quality.

3. How do PL and EL testing affect the warranties offered with solar panels?

Manufacturers that thoroughly test their solar panels with PL and EL technologies can often offer more robust warranties because they’re confident in their product quality. These tests help them identify and remove defective PV panels before they reach customers, reducing warranty claims. Always check if your warranty covers the types of defects these tests can detect—it could save you headaches later.

4. Can I request PL or EL test results for the panels I’m buying?

Yes! More transparent manufacturers will provide EL images of your specific panel batch upon request, especially for larger commercial installations. Some premium manufacturers even include individual panel “quality passports” showing test results. Don’t hesitate to ask—a reputable company should be willing to share this information or explain their testing protocols.

5. If I already have solar panels installed, can I still have them tested with PL or EL imaging?

Absolutely. If you’re experiencing unexplained performance issues or want to check for damage after extreme weather, you can hire specialized solar inspection services that offer on-site EL testing. Newer mobile PL testing is also becoming available. These tests can identify invisible cracks, connection problems, or degradation issues without removing the panels from your roof.

6. Do PL and EL testing matter more for certain climates or installation types?

Yes, especially if you live in areas with extreme temperatures, high humidity, or frequent storms. Solar panels installed in harsh environments benefit most from comprehensive testing because these conditions accelerate existing defects. Similarly, if you have a complex roof with multiple angles or partial shading, thoroughly tested panels will be more resilient to the uneven stress patterns these installations create.

7. How do I know if a solar company’s claims about testing are legitimate?

Look for specific details about their quality control process rather than vague marketing statements. Reputable companies will explain exactly when and how they test their solar panels, what defect types they screen for, and what standards they follow. Don’t hesitate to ask for sample test reports—quality manufacturers should be proud to share them.

---
