Why Dual-Glass Solar Panels with All-Back Contact Cells Are Leading in 2025

In the rapidly evolving solar industry, All Back Contact (ABC) dual-glass solar panels represent the pinnacle of photovoltaic innovation. These revolutionary panels combine cutting-edge ABC cell technology with premium dual-glass construction to deliver unprecedented performance, stunning aesthetics, and exceptional durability.

While industry leaders like AIKO, Maxeon, and LONGi drive BC technology innovation, manufacturers like Couleenergy specialize in bringing advanced dual-glass construction to market with flexible customization capabilities. This comprehensive guide explores the technology, benefits, and applications of ABC dual-glass panels.

🔬What Are All Back Contact (ABC) Solar Panels?

All Back Contact solar panels fundamentally reimagine solar cell design by moving all electrical contacts to the rear surface of the cell, eliminating the visible grid lines that characterize traditional panels. This innovative approach creates a 100% active front surface for maximum light absorption while delivering superior aesthetics.

The Technical Revolution Behind ABC Technology

Unlike conventional solar cells where silver busbars and grid lines cross the front surface, ABC technology employs an interdigitated back contact structure with positive and negative terminals arranged in alternating patterns on the rear side.

Advanced Manufacturing Process

Leading ABC manufacturers like AIKO use sophisticated “self-masked two-step processes” combined with laser patterning:

• Decouples formation of p-type and n-type contact regions for independent optimization
• Uses BSG and PSG as natural, self-aligned masks
• Eliminates external masking reducing contamination risk
• Improves yield and production consistency while reducing material consumption

🛡️Why Dual-Glass Construction Matters

Dual-glass solar panels replace traditional polymer backsheets with a second layer of tempered glass, creating a protective glass-glass sandwich around high-efficiency solar cells. This construction methodology delivers significant advantages over conventional panel designs.

Superior Durability and Weather Protection

The glass-glass architecture provides unmatched environmental resistance:

Protection Type	Dual-Glass Benefit	Impact
Moisture Protection	Complete barrier against humidity	Prevents internal corrosion
UV Stability	Glass maintains integrity under radiation	Long-term performance retention
Chemical Resistance	Protection against corrosive elements	Coastal/industrial applications
Mechanical Strength	Superior hail/wind resistance	Reduced maintenance costs
Fire Safety	Class A fire rating achievable	Enhanced building safety

Enhanced Performance Characteristics

• Better thermal management with improved heat dissipation
• Reduced degradation rates typically 0.4% annually for dual-glass versus 0.5% average for standard panels
• Extended lifespan of 30+ years with comprehensive warranty coverage
• Bifacial capability for 10-25% additional energy generation from reflected light

⚙️The Perfect Synergy: ABC + Dual-Glass Technology

The combination of ABC cell technology with dual-glass construction creates synergistic benefits that neither technology achieves alone. This perfect partnership addresses the solar industry’s key challenges while opening new possibilities for premium installations.

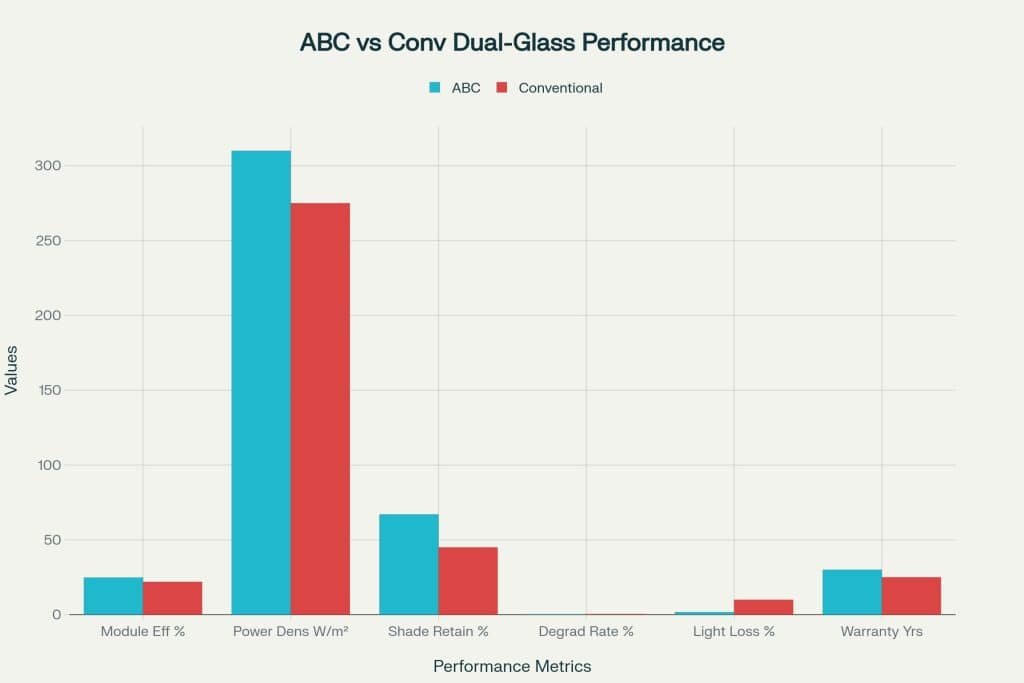

📊Performance Advantages of ABC Dual-Glass Solar Panels

Record-Breaking Efficiency Levels

ABC dual-glass technology achieves industry-leading efficiency ratings:

• Peak commercial efficiency: Up to 24.8% achieved by leading manufacturers like AIKO
• Typical commercial range: 23-24% for most ABC residential applications
• Laboratory achievements: Up to 27.81% efficiency demonstrated in research settings
• Performance advantage: 1-2 percentage points higher than conventional PERC technology
• Power density benefits: Higher power output per square meter compared to standard panels

Exceptional Shading Tolerance

One of ABC technology’s notable features is improved partial shading performance:

• Enhanced shading resilience: Significantly better performance when partially shaded compared to conventional panels
• Individual cell optimization: Leading manufacturers like AIKO report up to 30% better performance in shaded conditions compared to TOPCon modules (TÜV NORD testing)
• Distributed power management maintaining higher output across varying conditions
• Real-world validation: Field testing by leading manufacturers shows 4.94% to 50% better performance under various shading conditions

Enhanced Temperature Performance

ABC dual-glass panels excel in high-temperature environments:

Technology	Temperature Coefficient	Performance Impact
ABC (Premium)	-0.26%/°C	Superior heat tolerance
TOPCon	-0.30%/°C	Good performance
PERC	-0.34% to -0.40%/°C	Standard performance
HJT	-0.21%/°C	Excellent heat tolerance

📈Long-Term Performance and Reliability

Industry-Leading Degradation Rates

ABC dual-glass panels demonstrate exceptional long-term stability:

• First-year degradation: ≤1% for premium ABC modules
• Annual degradation: ≤0.35% for leading manufacturers (varies by brand, typical range 0.35-0.45%)
• Industry comparison: Better than standard panels (0.5% average) and comparable to other premium dual-glass panels (0.4% typical)
• 30-year power retention: Up to 88.85% guaranteed output for premium models
• Extended warranty coverage: 25-30 year performance guarantees available

Enhanced Bifacial Performance

The rear contact design optimizes bifacial energy generation:

💰Economic Benefits and Return on Investment

Reduced System Costs

Higher efficiency ABC dual-glass panels can provide economic advantages:

• Potentially lower BOS costs from higher power density (varies by installation)
• Fewer panels required for equivalent power generation
• Reduced installation complexity in some applications
• Enhanced energy yields throughout system lifetime
• Improved LCOE through combination of higher efficiency and longer lifespan

🏗️Couleenergy’s Dual-Glass Manufacturing Excellence

Manufacturing Capabilities

Capability	Specification	Benefit
Production Lines	Automated for 18-cell, 30-cell, 33-cell, 36-cell, 48-cell, 54-cell, 60-cell, 66-cell, 72-cell, custom formats	Flexible manufacturing
Power Range	30W micro-modules to 710W+ large-format	Diverse applications
Technology	Half-cut PERC, TOPcon, HPBC/IBC development	Advanced performance
Certifications	IEC 61215/61730, CE, TÜV	Global market access
Warranty	30 years, ≤0.5% annual degradation	Long-term reliability

Custom Solar Solutions Program

Couleenergy’s four-step OEM/ODM workflow enables customers to transform concepts into mass-produced modules:

1. Idea capture & feasibility assessment
2. Design optimization for size, shape, voltage, and aesthetics
3. Prototype & lab testing with comprehensive durability validation
4. Mass production with dedicated quality control teams

Business Model Advantages

Couleenergy’s unique positioning combines industrial-scale manufacturing with boutique flexibility:

🔬Technical Specifications and Standards

Performance Characteristics

Modern ABC dual-glass panels typically feature:

• Power output range: 400W-700W depending on configuration and manufacturer
• Module efficiency: 23-24.8% for leading commercial products
• Operating temperature: -40°C to +85°C for all-climate performance
• System voltage: DC1500V compatibility for large installations
• Load resistance: 5400Pa front/2400Pa rear loading capacity

Quality Certifications

All premium panels meet international quality standards:

⚖️Comparing ABC Dual-Glass to Alternative Technologies

Technology	Efficiency	Aesthetics	Durability	Cost
ABC Dual-Glass	24.8% peak	Excellent	30+ years	Premium
PERC	20-22%	Standard	25 years	Budget
TOPCon	23-24%	Good	25-30 years	Mid-range
HJT	22-25%	Good	25-30 years	Premium

🌱Environmental Impact and Sustainability

Reduced Carbon Footprint

ABC dual-glass technology supports environmental goals through:

🔮Future Developments and Industry Trends

Technology Roadmap

Innovation pipeline includes enhanced efficiency targets approaching 26% commercial production, advanced materials improving performance, smart panel integration with IoT capabilities, and expanded design possibilities.

Market Evolution

• Increasing efficiency requirements driving premium technology adoption
• Aesthetic considerations becoming critical in residential markets
• Durability demands favoring glass-glass construction
• Technology maturation making premium features more accessible
• Regulatory support encouraging high-performance installations

✅Conclusion: The Smart Choice for Premium Solar

All Back Contact dual-glass solar panels represent the convergence of cutting-edge technology, superior aesthetics, and exceptional performance. For residential homeowners, commercial developers, and utility-scale projects demanding advanced solar technology, ABC dual-glass panels deliver unmatched value.

Whether you’re seeking to maximize energy production, enhance property aesthetics, or invest in proven long-term performance, ABC dual-glass solar panels provide the advanced technology and premium quality that modern solar installations demand. With specialized manufacturers like Couleenergy offering both standard and custom solutions, the future of solar energy combines technological excellence with application flexibility.
