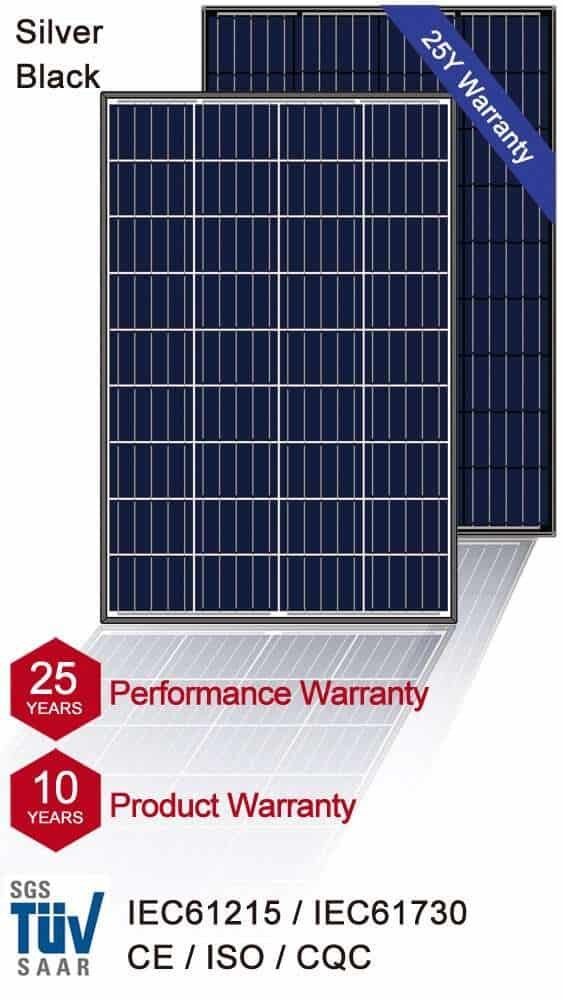

Remark: customized frame color and cable length available upon request.
Module Type: CL100P6-36 / CL105P6-36 / CL110P6-36
Brand: Coulee (OEM Available)
Maximum Power: 100Watt / 105Watt / 110Watt
Lead Time: In 7 working days for quantity ≤ 50000pcs
Lead Time: Negotiable when quantity ＞ 50000pcs
Shipping: By air or by sea from China
Payment Terms: T/T, L/C, D/P, Paypal, Western Union
10-Year Product Warranty
25-Year Performance Warranty
IEC61215, IEC61730 Certified Product

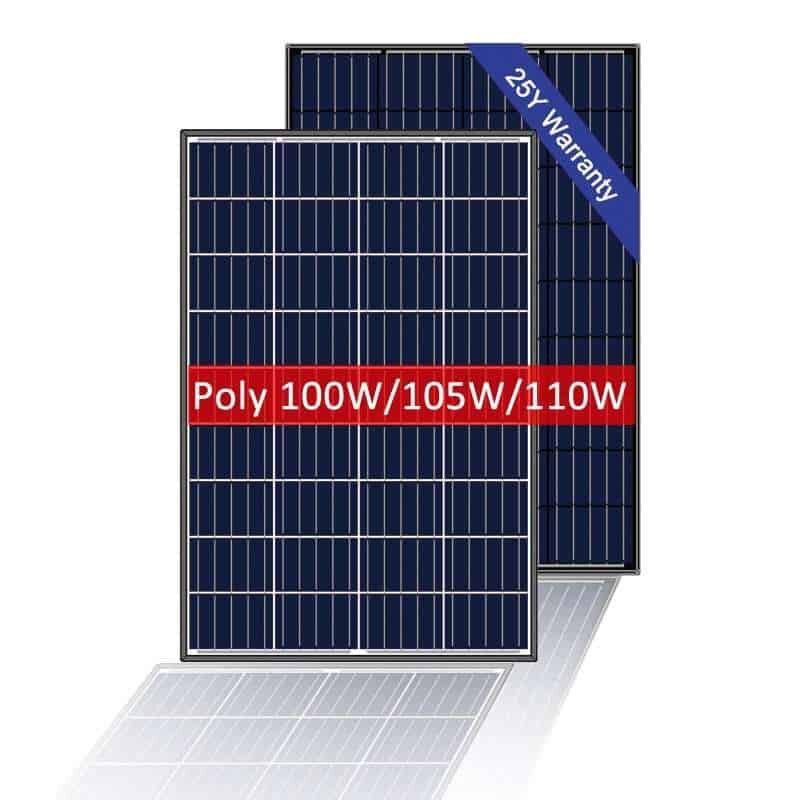

Not all solar modules are created equal. Coulee Limited has designed and manufactured PV modules with optimal performance. This polycrystalline 100W solar panel is perfect for permanent outdoor use, providing free electricity to charge a 12V battery that can power hundreds of devices and electrical appliances. When handling batteries with higher voltages such as 24 V or 48 V, 2 or 4 PV panels can be connected in series to generate the optimum battery charging voltage. Systems with higher power can be achieved by combining strings in parallel, to create extra power for your needs. Coulee solar modules are compatible with both Maximum Power Point Tracking (MPPT) and Pulse Width Modulation (PWM) charge controllers.
IP67 rated waterproof design ensures Coulee sun panels can be used in all weather conditions.
Specifications
| Module Type | CL100P6-36 | CL105P6-36 | CL110P6-36 |
|---|---|---|---|
| Maximum Power at STC - Pmax | 100Wp | 105Wp | 110Wp |
| Maximum Power Voltage - Vmp | 17.9V | 18.3V | 18.6V |
| Maximum Power Current - Imp | 5.59A | 5.74A | 5.91A |
| Open Circuit Voltage - Voc | 21.3V | 21.8V | 22.4V |
| Short Circuit Current - Isc | 5.92A | 6.08A | 6.21A |
| Temperature Coefficients of Pmax | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ |
| Temperature Coefficients of Voc | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ |
| Temperature Coefficients of Isc | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% |
STC:
Irradiance: 1000W/m²
Cell Temperature: 25°C
AM = 1.5
NOCT:
Irradiance: 800W/m²
Abmient Temperature: 20°C
AM = 1.5
Wind Speed: 1m/s
Packaging:
4pcs per Carton
Customized Package Available
Mechanical Characteristics
| Cell Size (mm) | 156.75 × 104.5 Poly |
|---|---|
| Module Dimensions (mm) | 1000 × 670 × 30 |
| Number of Cells | 36 (9 × 4) |
| Moduel Weight (kg) | 8.0 |
| Front Glass | 3.2mm,LowIron,TemperedGlass |
| Backsheet | TPT (White OR Black) |
| Frame | AnodizedAluminiumAlloy (Silver OR Black) |
| Junction Box (Protection Degree) | ≥ IP67 |
| Cables & Plug Connectors | 4.0mm² & MC4 Compatible, CustomizedLength |
Operating Conditions
| Max. System Voltage | 1000VDC (IEC) |
|---|---|
| Operating Temperature Range | -40℃~+85℃ |
| MaximumSeriesFuseRating (A) | 10 |
| Max. Static Load , Front (e.g., snow) | 5400Pa |
| Max. Static Load, Back (e.g., Wind) | 2400Pa |
| Max. Hailstone Load | 23m/s, 7.53g |
| NOCT | 45 ± 2℃ |
| Application Class | Class A |
