Remark: customized frame color and cable length available upon request.

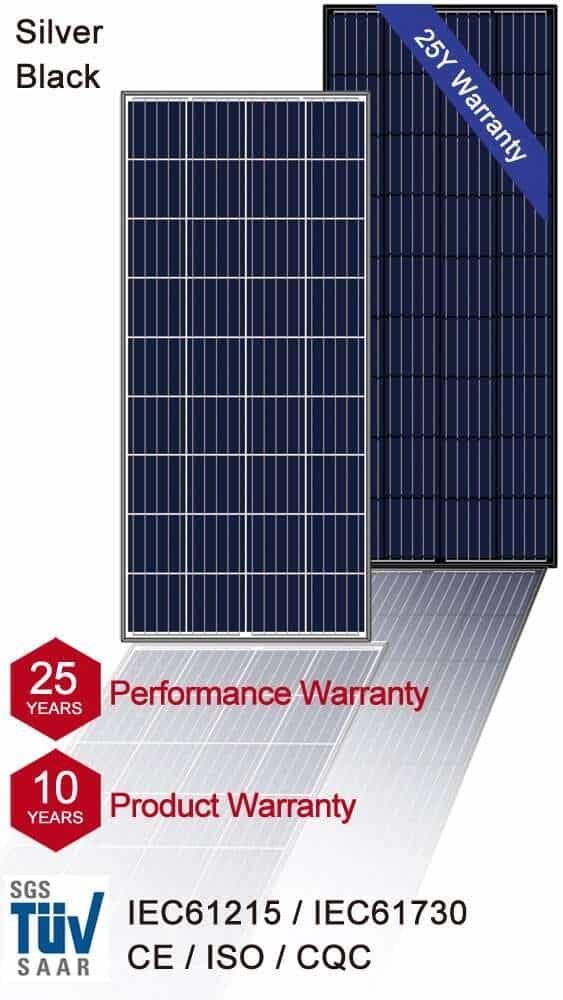

Module Type: CL150P6-36 Series
Brand: Coulee (OEM Available)
Maximum Power: 150Watt / 155Watt / 160Watt / 165Watt
Lead Time: In 7 working days for quantity ≤ 50000pcs
Lead Time: Negotiable when quantity ＞ 50000pcs
Shipping: By air or by sea from China
Payment Terms: T/T, L/C, D/P, Paypal, Western Union
10-Year Product Warranty
25-Year Performance Warranty
IEC61215, IEC61730 Certified Product
Coulee solar panels are produced in anti-dust clean workshops and with 100% qualified materials. We provide durable and reliable PV panels due to stringent quality control measures, testing, and strict selection of raw materials and components.
Coulee photovoltaic panels come with aesthetic design and anti-reflective glass to avoid any sunlight reflection, thus maximizing the observation of the entire spectrum of the sunlight and increasing the efficiency and performance significantly.

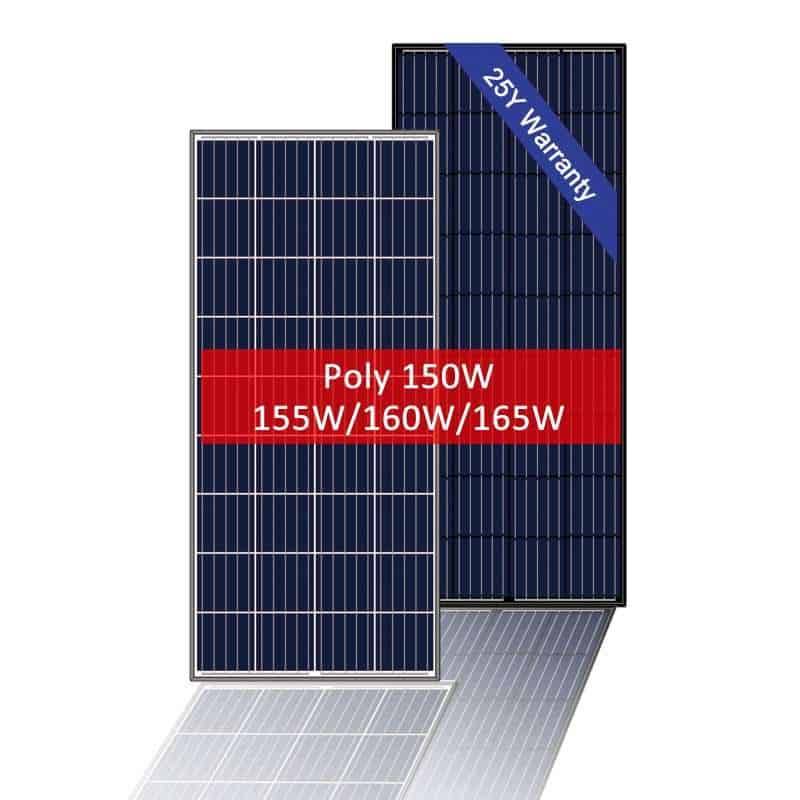

These polycrystalline 150W, 155W, 160W, 165W solar panels are ideal for permanent outdoor use. The 12V solar panels are compatible with both Maximum Power Point Tracking (MPPT) and Pulse Width Modulation (PWM) charge controllers.
Specifications
| Module Type | CL150P6-36 | CL155P6-36 | CL160P6-36 | CL165P6-36 |
|---|---|---|---|---|
| Maximum Power at STC - Pmax | 150Wp | 155Wp | 160Wp | 165Wp |
| Maximum Power Voltage - Vmp | 17.9V | 18.2V | 18.4V | 18.5V |
| Maximum Power Current - Imp | 8.38A | 8.52A | 8.70A | 8.92A |
| Open Circuit Voltage - Voc | 21.3V | 21.7V | 21.8V | 22.4V |
| Short Circuit Current - Isc | 8.88A | 9.03A | 9.22A | 9.45A |
| Temperature Coefficients of Pmax | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ |
| Temperature Coefficients of Voc | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ |
| Temperature Coefficients of Isc | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC:
Irradiance: 1000W/m²
Cell Temperature: 25°C
AM = 1.5
NOCT:
Irradiance: 800W/m²
Abmient Temperature: 20°C
AM = 1.5
Wind Speed: 1m/s
Packaging:
4pcs per Carton
Customized Package Available
Mechanical Characteristics
| Cell Size (mm) | 156.75 × 156.75 Poly |
|---|---|
| Module Dimensions (mm) | 1480 × 670 × 35 |
| Number of Cells | 36 (9 × 4) |
| Moduel Weight (kg) | 11.5 |
| Front Glass | 3.2mm,LowIron,TemperedGlass |
| Backsheet | TPT (White OR Black) |
| Frame | AnodizedAluminiumAlloy (Silver OR Black) |
| Junction Box (Protection Degree) | ≥ IP67 |
| Cables & Plug Connectors | 4.0mm² & MC4 Compatible, CustomizedLength |
Operating Conditions
| Max. System Voltage | 1000VDC (IEC) |
|---|---|
| Operating Temperature Range | -40℃~+85℃ |
| MaximumSeriesFuseRating (A) | 10 |
| Max. Static Load , Front (e.g., snow) | 5400Pa |
| Max. Static Load, Back (e.g., Wind) | 2400Pa |
| Max. Hailstone Load | 23m/s, 7.53g |
| NOCT | 45 ± 2℃ |
| Application Class | Class A |
