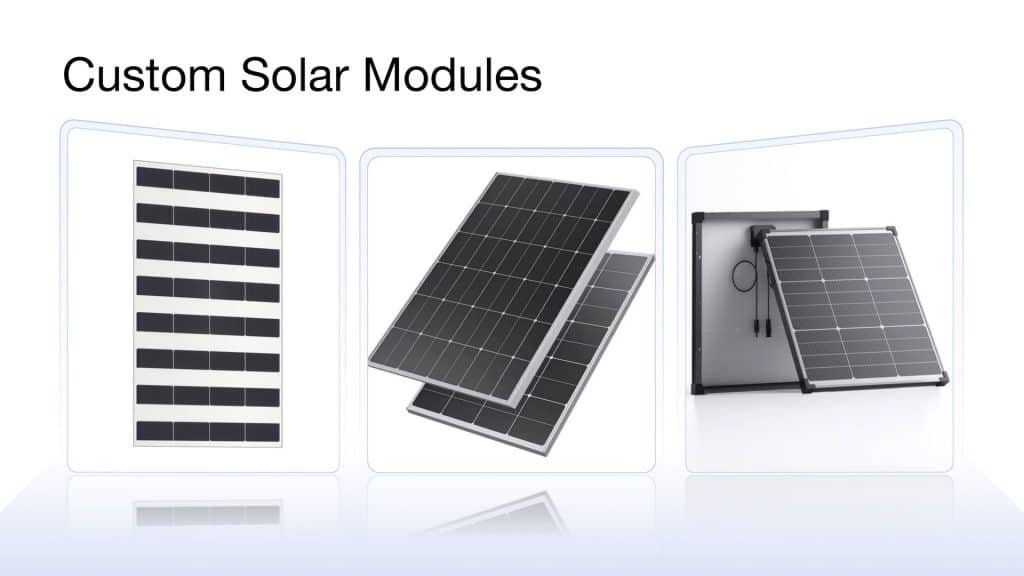

Non-Standard Solar Panel Design and Manufacturing

When standard solar panels don’t fit your space, non-standard design opens up new possibilities. Whether you’re installing solar on a curved RV roof, fitting panels between rooftop obstacles, or integrating photovoltaics into unique architectural designs, custom-sized panels solve problems that off-the-shelf products can’t.

What Makes a Solar Panel “Non-Standard”?

Non-standard solar panels differ from typical residential or commercial panels in size, shape, voltage, or configuration. Standard panels typically range from 1650-2100mm in length and 990-1150mm in width, with 60, 72, or 144 half-cut cells. They’re designed for rooftop installations where space isn’t the primary constraint.

Non-standard panels break these rules. They might be narrower to fit between roof vents. They could be longer to maximize coverage on a marine vessel. Some use custom cell arrangements to achieve specific voltages. Others bend to follow curved surfaces.

💡 Industry Evolution: The solar industry has evolved dramatically. What seemed impossible a decade ago is now routine. Modern manufacturing technology makes custom panels practical for smaller orders than ever before.

Why Choose Non-Standard Solar Panels?

📏 Space Constraints

Your rooftop doesn’t always cooperate with standard panel dimensions. Custom dimensions maximize every available square centimeter.

⚡ Voltage Requirements

Not every system runs on standard voltages. Custom cell arrangements deliver exact voltage specifications.

🔄 Curved Surfaces

Vehicles, boats, and some buildings have curved surfaces. Semi-flexible or fully flexible custom panels conform perfectly.

🔋 Maximum Efficiency

Custom panels using high-efficiency N-type cells and optimized layouts deliver more watts per square meter.

Space Constraints Drive Innovation

Your rooftop doesn’t always cooperate with standard panel dimensions. An RV roof might have only 1200mm of usable length between the air conditioner and a vent. A boat deck could offer a narrow 400mm width. Building facades might need panels that match architectural features.

Standard panels waste these opportunities. Custom dimensions maximize every available square centimeter.

Voltage Requirements Vary

Not every system runs on standard voltages. Some applications need 18V output to charge specialized battery banks. Others require precise voltage matching to existing equipment. Marine systems often have unique electrical configurations.

Custom cell arrangements deliver exact voltage specifications. You’re not forced to accept whatever the standard panel provides.

Custom solar panels aren’t just for exceptional cases anymore. They’re practical solutions whenever standard products don’t quite fit your needs.

Curved Surfaces Need Flexibility

Vehicles, boats, and some buildings have curved surfaces. Standard rigid panels create gaps and mounting challenges. Semi-flexible or fully flexible custom panels conform to these curves perfectly.

This isn’t just about aesthetics. Proper surface contact improves mounting security and can enhance thermal performance.

Efficiency in Tight Spaces

Sometimes you need maximum power from minimal space. Custom panels using high-efficiency N-type cells and optimized layouts deliver more watts per square meter than standard alternatives.

Understanding Custom PV Panel Dimensions

What Dimensions Are Actually Possible?

Most solar manufacturers work within certain equipment limitations. Standard lamination chambers handle panels up to approximately 2400mm in length and 1300mm in width. These aren’t absolute limits, but going beyond them adds significant complexity and timeline.

Dimension Type	Minimum	Maximum	Notes
Width	150mm	2200mm	Readily achievable
Length	150mm	3300mm	Extended lengths available
Thickness	3mm	8mm	Depends on panel type

Modern laser-cutting technology enables precise custom shapes within these boundaries. The key consideration is manufacturability. Dimensions that work with existing equipment cost less and ship faster.

Minimum Order Quantities Matter

Custom dimensions typically require minimum orders that vary by customization complexity:

Customization Level	Minimum Order Quantity	Timeline
Basic customizations (standard cell counts, slight adjustments)	100-200 panels	3-4 weeks
Standard non-standard sizes (custom dimensions within equipment limits)	200-500 panels	4-6 weeks
Complex custom specifications (irregular shapes, specialized arrangements)	500-3,000 panels	6-10 weeks

⚠️ Planning Note: Small quantities are possible through some manufacturers, but expect significantly higher per-panel costs. Quantities under 100 solar panels may require working with specialty manufacturers or accepting 50-100% cost premiums. Very small orders (10-50 panels) are rare and expensive—often 2-3x the cost of volume production. Always get written quotes specifying exact MOQs and pricing tiers.

Cost Considerations for Custom Solar Panels

Custom solar panels command premium pricing over standard products:

Customization Level	Typical Cost Premium	When Worth It
Minor modifications	10-30% above standard	Slight dimension changes, cell count adjustments
Moderate customization	30-60% premium	Custom dimensions, junction box positioning
Complex custom design	60-100%+ premium	Irregular shapes, specialized configurations, very small quantities

These premiums reflect tooling costs, specialized production runs, and quality assurance for non-standard products. For applications where standard panels simply won’t work—like curved RV roofs, marine installations, or architectural integration—the premium is often justified by the value of making an otherwise impossible installation possible.

🔧 Need Help Designing Your Custom Solar System?

Our technical team provides personalized assistance with custom panel specifications, voltage calculations, and manufacturer selection.

📧info@couleenergy.com

📞+1 737 702 0119

Cell Arrangement and Configuration

How Cell Count Affects Your Solar Panel

Solar cells arrange in series and parallel configurations. Series connections increase voltage. Parallel connections boost current. The combination determines your panel’s electrical characteristics.

Each standard monocrystalline cell produces approximately 0.5-0.6V. To achieve 12V nominal charging voltage (actually 18-22V output), you need around 36 cells connected in series. For 24V systems, that doubles to 72 cells.

💡 Design Flexibility: Custom panels often use non-standard cell counts. A 42-cell configuration might better fit your dimensional constraints while still delivering adequate voltage.

Cell Cutting Opens Design Flexibility

When solar panel dimensions don’t align with full cell sizes, manufacturers cut cells to fit. Modern laser cutting achieves precision within 0.1mm tolerance, processing up to 4,000 custom cells per hour.

Cell cutting maintains voltage but reduces current proportionally. A full cell producing 9 amps becomes a half-cut cell producing 4.5 amps. Voltage per piece stays constant at roughly 0.5-0.6V.

This principle is powerful for custom designs. You can fit more cells in series within a narrow panel by using third-cut or half-cut cells. The voltage you need comes from cell count, not cell size.

Performance Implications of Cut Cells

Cutting cells does affect efficiency. Each cut introduces small losses from laser kerf (material removed) and edge effects.

Efficiency loss values vary by cutting method, cell quality, and manufacturer process. These figures represent typical industry ranges but should be confirmed with your specific manufacturer. Request test data for cut cells to verify actual performance characteristics before committing to large orders.

Despite losses, cut cells offer advantages. They provide better shading tolerance because a shaded portion affects fewer cells. This can improve overall system performance in partially shaded conditions.

✅ Shading Benefit: Bypass diodes maintain approximately 60-70% panel output when one section shades completely, compared to near-zero output without proper bypass protection.

Voltage Customization Methods

Achieving Specific Voltage Outputs

Your electrical system dictates voltage requirements. RV systems commonly use 12V or 24V battery banks. Marine applications might need 18V. Grid-tie systems could require 48V or higher.

Panel voltage comes primarily from cell count. Each cell contributes approximately 0.5-0.6V. Want 20V open-circuit voltage? Use 36 cells in series.

⚠️ Temperature Warning: Temperature affects voltage significantly. Panels lose about 0.3-0.5% voltage per degree Celsius above 25°C. On a hot roof reaching 65°C, expect voltage drops of 3-4V for a typical 36-cell panel. Design for this by specifying slightly higher voltage at standard test conditions to ensure adequate charging performance in real-world heat.

P-Type vs N-Type Cell Voltages

Traditional P-type monocrystalline cells produce around 0.58V each. Newer N-type technologies like TOPCon generate approximately 0.62V per cell. This difference changes your cell count calculations.

💡 Voltage Variability Note: These voltage values are nominal approximations. Actual cell voltage varies by manufacturer, cell technology, temperature, and manufacturing tolerances. Always request actual specification sheets from your manufacturer showing voltage at standard test conditions (STC: 25°C, AM1.5 spectrum, 1000W/m²). Typical range: 0.55-0.60V for P-type, 0.60-0.65V for N-type.

Cell Technology	Voltage per Cell	Cells Needed for 21V	Temperature Coefficient
P-type monocrystalline	0.58V	36 cells	-0.30% to -0.35% per °C
N-type TOPCon	0.62V	34 cells	-0.25% to -0.29% per °C

You save two cells while achieving the same voltage. This matters when fitting solar panels into tight spaces. Fewer cells mean more design flexibility.

2-6%Higher efficiency from N-type TOPCon cells vs P-type (22-24% vs 20-22%), with 10-15% cumulative energy advantage over 30 years due to lower degradation

N-type cells also handle heat better. Their temperature coefficient averages -0.25% to -0.29% per °C compared to P-type’s -0.30% to -0.35%. Voltage stays more stable in hot conditions, maintaining better charging performance throughout the day.

💰 Cost Consideration: N-type TOPCon panels typically cost 15-30% more than comparable P-type panels. However, the higher efficiency, better temperature performance, and significantly lower degradation rates (0.4% vs 0.7% annually) mean they can deliver 10-15% more total energy over a 30-year lifespan, often justifying the premium for permanent installations.

Series-Parallel Configurations

Sometimes you can’t get target voltage from a single series string. Parallel configurations help. Two strings of 18 cells each, connected in parallel, give you the same voltage as one 18-cell string but double the current.

This approach works well when:

• Panel dimensions force awkward cell counts
• You need higher current output
• Shading tolerance is important

⚠️ Matching Requirement: Each parallel string must match electrically. Current variations between strings reduce efficiency—mismatched strings with 5% or greater current difference can lose 10-15% system efficiency as higher-current strings partially feed lower-current ones rather than the load. Specify that manufacturers performance-match all parallel strings within 2-3% tolerance.

Frame and Mounting Considerations

Frame Options and Profiles

Aluminum frames provide structural support and mounting points. Standard profiles measure 35mm × 35mm, 40mm × 35mm, or 45mm × 35mm, following IEC 61215 standards requiring 2400 Pa wind load and 5400 Pa snow load resistance.

Smaller panels (under 150W) typically use 35mm × 35mm frames. Larger panels need 40mm × 35mm or bigger for adequate rigidity. Your custom panel’s power and dimensions determine the appropriate frame size.

Frameless and Flexible Options

Different mounting approaches have distinct weight profiles:

Panel Type	Weight per m²	Best Applications
Flexible panels	2-4 kg/m²	Extreme weight constraints, curved surfaces
Frameless glass-glass	6-10 kg/m²	Balance of weight and durability
Framed rigid panels	10-15 kg/m²	Permanent installations, maximum durability

Frameless solar panels eliminate the aluminum border entirely. They’re ideal for curved surfaces or ultra-lightweight applications. These designs typically use ETFE or PET backing materials for protection.

💡 Material Comparison: ETFE offers superior UV resistance and 25+ year lifespan. PET costs less but typically lasts 7-10 years.

Junction Box Positioning

Junction boxes contain bypass diodes and electrical connections. They typically measure 100-120mm × 140-180mm × 60-80mm depth. Standard placement is bottom-center, approximately 150-200mm from the panel’s bottom edge.

Custom positioning helps avoid roof obstacles. Request side placement, corner positioning, or specific offset distances. Most manufacturers accommodate junction box location requests without additional cost as long as the position maintains at least 50mm distance from frame edges.

For curved installations, consider 90-degree cable entry glands. These let cables exit parallel to the panel face rather than perpendicular, reducing wind resistance and simplifying routing.

✅ Best Practice: Specify IP68-rated junction boxes for complete dust and water protection—essential for marine applications and advisable for all outdoor installations subject to pressure washing or submersion risk.

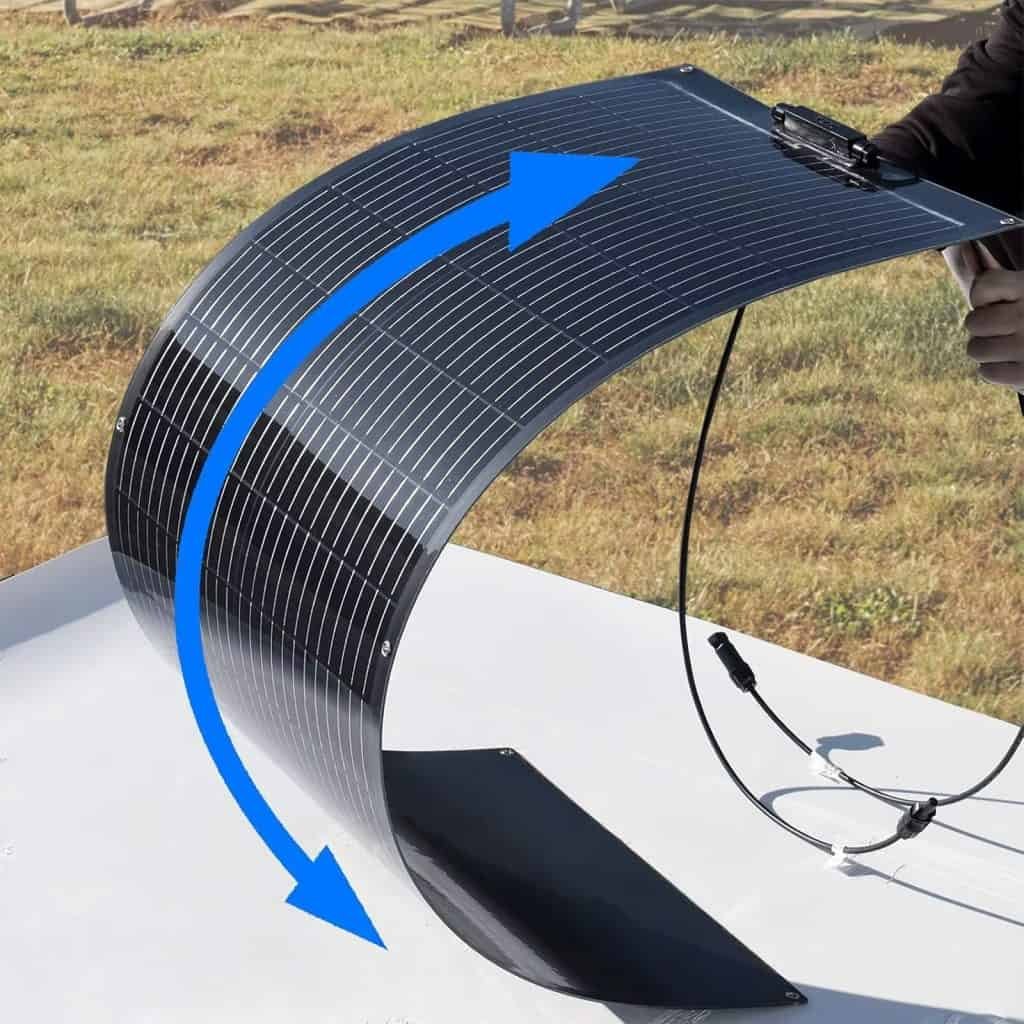

Flexible and Semi-Flexible Solar Panels

Understanding Flexibility Limits

Semi-flexible solar panels can bend along one axis to follow curved surfaces. Each panel has a minimum bending radius—the tightest curve it can safely handle without damaging cells.

Bending Direction Matters

Solar panels can only bend along one axis at a time. You cannot create compound curves where the panel bends lengthwise and widthwise simultaneously without stressing cells.

Orient your panel so it bends only in one direction. Usually this means bending along the length for RV roofs or boat decks. Mark the correct orientation clearly when ordering and during installation.

Thermal Considerations for Flexible Panels

Flexible panels mounted flush to surfaces face thermal challenges. Without air gaps, they run 15-35°F (8-19°C) hotter than elevated panels. This heat reduces efficiency by approximately 5-7% in hot conditions—a measurable power loss over the system’s lifetime.

✅ Cooling Solution: Consider mounting semi-flexible panels on low-profile brackets that create 25-50mm air gaps. Even small spaces dramatically improve cooling. If adhesive mounting is required, compensate by oversizing panel capacity by 10-15% to account for thermal efficiency losses.

Power Output Calculations

Estimating Real-World Performance

Calculate expected power output by starting with panel area. High-quality configurations deliver approximately 200-240W per square meter under standard test conditions, with premium N-type panels reaching 250W/m².

Example Calculation:

For a 1200mm × 600mm solar panel (0.72 m²):

Theoretical output = 0.72 × 220W = 158W

Apply derating factors:

• Temperature losses: 10-15%
• Wiring losses: 2-3%
• Soiling: 3-5%
• Age/degradation: 0-5%

Combined efficiency factor: 75-80%

Real expected output = 158W × 0.78 = 123W

Your actual performance depends on installation location, mounting method, environmental conditions, and panel quality.

Long-Term Performance Degradation

Solar panels degrade gradually over time. Performance expectations should account for this:

Cell Type	Annual Degradation	Expected Output After 25 Years
P-type cells	0.5-0.8%	80-87.5%
N-type TOPCon	0.4-0.6%	85-90%

N-type panels maintain better long-term performance, partially justifying their higher initial investment.

📊 Data Sources: Degradation rates based on field testing data from China’s National Photovoltaic Quality Inspection Center (2023), manufacturer warranties from leading producers (JinkoSolar, Trina Solar, 2024-2025), and IEA-PVPS Task 13 reliability studies. Actual degradation varies by installation conditions, maintenance practices, and climate. Some PERC installations show degradation as high as 1.38% annually in harsh conditions, while premium N-type installations may achieve rates as low as 0.25% annually.

Cut Cell Power Calculations

When using cut cells, power scales with area.

Total Panel Power Calculation:

Power = (Cells in series) × (Parallel strings) × (Power per cell)

Example with 40 third-cut cells:

40 × 1 × 1.34W = 53.6W nameplate rating

Apply system derating (0.78):

53.6W × 0.78 = 42W real-world performance

Application-Specific Design

RV and Camper Van Installation

RV roofs present unique challenges. Curved surfaces, obstacles like air conditioners and vents, and weight limitations all constrain panel design.

Custom panels sized to fit between obstacles maximize usable space. A 1200mm × 400mm panel might fit perfectly where standard 1650-2100mm panels won’t. Semi-flexible options conform to roof curves without creating stress points.

💡 Weight Target: Target under 8-10 kg/m² total system weight (including mounting hardware) for safe long-term structural integrity on RV roofs, especially lightweight travel trailers.

Aerodynamics matter: Low-profile mounting reduces wind resistance. Real-world testing shows panels mounted flush or within 50mm of the roof surface create minimal drag penalty (0.1 MPG), while high-profile mounting systems can reduce fuel economy by 2.5 MPG—a significant cost over thousands of miles.

Marine Applications

Boats need corrosion-resistant components that withstand harsh saltwater environments. Specify stainless steel junction box hardware and cable glands with EPDM seals. These handle salt spray and submersion better than standard materials.

• Use flexible panels on curved decks and cabin tops
• Mount with marine-grade adhesives rated for constant vibration
• Require IP68 waterproofing (non-negotiable for marine)
• Match voltage to 12V or 24V battery banks
• Account for temperature losses in tropical climates (70°C+)

Building-Integrated Photovoltaics

Architectural applications demand aesthetic customization. Custom sizes, shapes, and frame colors integrate panels into building designs rather than obviously adding them on.

Frameless designs create cleaner appearances. Glass-glass modules can be semi-transparent for certain applications. Custom cell spacing adjusts transparency levels for architectural effect.

💡 Design Trade-off: Building facades face different orientations than optimal roof angles. Size panels to maximize available vertical space. Accept lower annual energy production but gain architectural integration and additional generating surface area that wouldn’t otherwise exist.

Working with Manufacturers

What to Specify in Your Order

Clear specifications prevent miscommunication and costly mistakes. Use precise technical terminology rather than general descriptions like “12V panel.”

Dimensional Specifications:

• Exact panel dimensions (length × width × thickness in mm)
• Cell arrangement (cells in series × parallel configuration)
• Maximum bending radius if flexible (e.g., “2000mm minimum radius”)

Electrical Specifications:

• Open circuit voltage (Voc): e.g., “21-23V at STC”
• Voltage at maximum power (Vmp): e.g., “17-19V at STC”
• Minimum operating voltage: e.g., “16V minimum at 65°C”
• Current at maximum power (Imp): e.g., “2.8-3.2A”
• Power output tolerance: “±5%” is standard, request “±3%” if possible
• Temperature coefficient: “≤-0.4% per °C for Vmp”

Mechanical Specifications:

• Frame profile size: e.g., “35mm × 35mm aluminum, 6063-T5 alloy”
• Frame finish: “anodized silver” or custom color
• Junction box position: e.g., “200mm from bottom edge, centered”
• Cable specifications: length, gauge (typically 4mm²), connector type (MC4)
• Corner treatment: “5-10mm rounded radius” for curved mounting

Environmental Specifications:

• Operating temperature range: e.g., “-40°C to +85°C”
• Waterproofing requirements: “IP68-rated junction box”
• Wind load rating: “2400 Pa minimum”
• Snow load rating: “5400 Pa minimum”
• Corrosion resistance: “316 stainless steel hardware” for marine

Cell Specifications:

• Cell type: “Grade A monocrystalline N-type TOPCon”
• Efficiency: “22% minimum cell efficiency”
• Performance matching: “All cells matched within ±2% current output”
• Cutting method: “Laser cut with <0.1mm tolerance”

Communication Best Practices

When ordering from international manufacturers, clear communication prevents expensive mistakes:

📐 Provide Diagrams

Simple sketches showing dimensions, junction box location, and mounting holes eliminate ambiguity.

✅ Request Confirmation

Get CAD drawings before production. Review carefully—catching errors early saves months.

📝 Use Precise Terms

Say “Voc 21V at STC” not “voltage about 20V.” Specify millimeters, not ambiguous numbers.

📸 Photo Updates

Request production photos for large orders. Seeing actual panels helps catch issues early.

Timeline Expectations

Be realistic about production and delivery timeframes:

Project Phase	Duration	Notes
Standard customizations	3-4 weeks	Cell count adjustments, minor changes
Non-standard sizes	4-6 weeks	Custom dimensions within equipment limits
Complex custom designs	6-10 weeks	Irregular shapes, specialized tooling
Sea freight shipping	4-6 weeks	Most economical option
Air freight shipping	1-2 weeks	Expensive but fast
Customs clearance	1-2 weeks	Typical timeline

⚠️ Planning Timeline: Plan for 8-16 weeks from order to installation for most custom projects. Rush orders are sometimes possible but expect premium charges and reduced manufacturer flexibility.

Sample Orders and Prototyping

Consider ordering samples before committing to full production runs. A single prototype panel verifies fit, electrical performance, and integration with your system. This catches design errors before they multiply across hundreds of units.

Some manufacturers offer small prototype runs of 10-50 units at premium pricing but reduced minimum order requirements. These cost more per panel than volume orders but dramatically reduce risk.

Quality Assurance and Testing

Pre-Shipment Inspection Requirements

Request comprehensive pre-shipment inspection reports. Reputable manufacturers provide these without additional charges for orders above minimum thresholds.

Essential Tests:

• Flash testing measures actual power output under controlled conditions. Request individual panel results, not just batch averages.

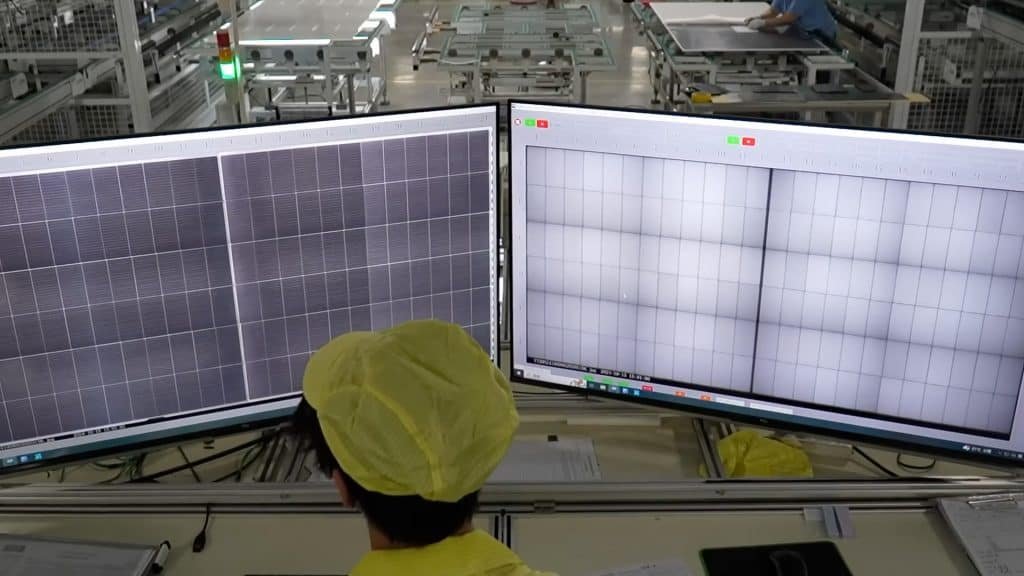

• Electroluminescence (EL) imaging reveals hidden cell cracks and manufacturing defects invisible to visual inspection.
• Insulation resistance testing verifies electrical safety (typically >100 MΩ between components and frame).
• Junction box waterproof testing confirms IP ratings through submersion or pressure washing.
• Visual inspection catches obvious defects like scratched glass or damaged frames before shipping.

Cell Quality Grades

Solar cells come in different quality grades that significantly affect performance and longevity:

Grade	Characteristics	Recommendation
Grade A	No visible defects, full performance specs	✅ Always specify for custom panels
Grade B	Minor cosmetic issues, adequate performance	⚠️ Only for non-critical applications
Grade C	Performance defects below specifications	❌ Avoid entirely

⚠️ Critical Warning: Mixing cell grades in one panel is problematic. The lowest-performing cell limits the entire series string, so one Grade B cell drags down all Grade A cells connected to it.

Warranty and Certification Considerations

Custom panels may have different warranty terms than standard products:

• Power output warranties: Typically 10-25 years guaranteeing 80-90% of original output. N-type panels increasingly offer 30-year warranties. However, custom panels may have shorter power warranties (15-20 years) or lower performance guarantees (75-85% at 25 years).
• Workmanship warranties: Usually 5-10 years covering manufacturing defects, frame integrity, and junction box failures. Custom designs may only carry 3-5 year workmanship warranties.

⚠️ Critical Warranty Warnings:

• Always get warranty terms in writing before ordering—verbal assurances don’t count
• Understand what voids the warranty (improper installation, modifications, extreme conditions)
• Verify the manufacturer will still be in business in 10-25 years (check financial stability, history)
• Non-standard designs sometimes carry exclusions for “custom specification failures” that wouldn’t apply to standard panels
• Shipping costs for warranty replacements are often not covered for custom orders

Certification Requirements:

• Grid-tie systems: Require IEC 61215, UL 1703, or equivalent certifications. Utility companies will absolutely not accept non-certified panels. Do not proceed with uncertified custom panels for grid-tied applications.
• Off-grid systems: More flexibility exists, but certifications often matter for building permits, homeowner’s insurance coverage, and fire safety compliance. Many insurance policies specifically exclude coverage for uncertified electrical equipment.
• International orders: Confirm panels meet destination standards (CE marking for Europe, UL listing for USA, AS standards for Australia/NZ). Customs may reject shipments lacking proper certifications.

⚠️ Financial Incentive Limitations: Custom panels frequently do not qualify for:

• Federal or state solar tax credits that require pre-approved product lists
• Utility rebate programs with specific certification requirements
• Solar renewable energy certificates (SRECs) in some jurisdictions
• Low-interest financing programs that mandate certified equipment

Always verify incentive eligibility BEFORE ordering custom panels. The lost incentives can exceed the cost of modifying your design to use certified standard panels.

Import and Shipping Considerations

When ordering custom panels internationally, factor in logistics beyond the panel purchase:

• Import duties and taxes vary by country (10-30% of landed costs). Research applicable tariffs.
• Shipping insurance is essential. Standard cargo insurance may not cover custom designs.
• Customs clearance typically adds 1-2 weeks. Work with experienced freight forwarders.
• Packaging requirements should be explicitly discussed. Custom dimensions may need special crates.
• Freight forwarder selection matters. Choose forwarders with solar panel experience.

Common Design Mistakes to Avoid

Insufficient Voltage Margin

❌ Common Mistake: Don’t calculate voltage requirements at standard test conditions (25°C) without accounting for temperature. Real panels operate much hotter, especially on roof surfaces.

Add 3-4V to your target voltage to compensate for thermal losses. A 12V system needs panels delivering 21-23V open-circuit voltage at STC, not 18-20V. This ensures adequate charging voltage even in summer heat when panels reach 60-70°C.

Mismatched System Components

Your panels, charge controller, and batteries must work together compatibly. A 24V panel doesn’t charge a 12V battery effectively with a PWM controller. MPPT controllers handle voltage mismatches better but aren’t universal solutions.

💡 Compatibility Check: Verify that your charge controller accepts the voltage range your custom panels will produce. Maximum voltage ratings matter—exceeding them damages expensive equipment permanently.

Ignoring Weight Distribution

Mobile installations have weight limits per square meter of mounting surface. RV roofs typically handle 8-12 kg/m² safely. Boat decks vary widely by construction type.

Calculate total panel weight including frames, mounting brackets, adhesives, and hardware. Distribute weight across roof supports, not just between them. Consider dynamic loads from wind and vibration during travel.

Over-Optimizing Dimensions

Sometimes a standard dimension with minor compromises works better than a fully custom size. A 1600mm panel might work almost as well as a 1650mm panel but costs less and ships faster.

Evaluate whether tight customization genuinely adds value. Is the extra 50mm worth a four-week longer timeline and higher per-unit cost? Sometimes “close enough” is actually better than “perfect” when you factor in all real-world constraints.

Neglecting Future Maintenance

Consider how you’ll access panels for cleaning and maintenance. Custom panels fitted into extremely tight spaces may be impossible to remove for service without disassembling surrounding components.

• Leave reasonable gaps between panels and obstacles
• Allow cable service loops for junction box access
• Think about replacing damaged panels years from now
• Plan for periodic cleaning and inspection

Getting Started with Custom Solar Panels

Assess Your Requirements

Start by understanding your constraints and goals:

Physical Constraints:

• Available installation area dimensions (measure precisely)
• Surface flatness or curvature (measure maximum arch height)
• Weight limitations (verify roof or mounting structure capacity)
• Mounting method possibilities (adhesive, brackets, through-bolt)
• Obstacles and clearances (vents, antennas, access hatches)

Electrical Requirements:

• Battery voltage (12V, 24V, 48V system)
• Daily energy consumption (watt-hours per day)
• Charge controller type and specifications (PWM vs MPPT)
• Maximum system voltage limits (controller input limits)
• Wire gauge and maximum run length (voltage drop calculations)

Environmental Factors:

• Operating temperature range (local climate extremes)
• Salt spray or corrosion concerns (marine or coastal)
• Wind and snow loads (local weather extremes)
• Expected panel lifespan (5-year temporary vs 25-year permanent)

Budget and Timeline:

• Total available budget (panels, shipping, installation)
• Project deadline (allow 8-16 weeks for custom orders)
• Warranty importance (balance cost vs coverage)
• Certification requirements (grid-tie vs off-grid)

Design Your Configuration

With requirements defined, calculate your panel specifications:

1. Determine necessary power output (size array for daily consumption plus safety margin)
2. Calculate required voltage (charge controller and battery bank requirements)
3. Select cell technology (P-type standard, TOPCon N-type, or premium HJT)
4. Calculate cell count needed (target voltage ÷ voltage per cell)
5. Arrange cells to fit dimensions (account for cell size and cutting if needed)
6. Specify frame type and size (balance weight, rigidity, and aerodynamics)
7. Position junction box strategically (avoid obstacles, consider cable routing)
8. Calculate expected real-world output (apply all derating factors)

Contact Manufacturers with Detailed Specifications

Reach out to manufacturers with comprehensive specifications document. Include:

• Technical specifications (voltage, current, power, dimensions)
• Application description (RV roof, marine, building-integrated)
• Quantity needed (be realistic about minimums)
• Timeline requirements (production plus shipping)
• Quality requirements (testing, certifications, warranties)
• Budget constraints (helps manufacturers suggest appropriate solutions)

🚀 Ready to Design Your Custom Solar Solution?

Contact Couleenergy for expert guidance on custom solar panel design and manufacturing. Our technical team helps customers worldwide design and source custom panels that perfectly match their unique requirements—from initial specification through delivery and installation support.

📧info@couleenergy.com

📞+1 737 702 0119

Whether you need ten panels or ten thousand, we provide the guidance and support to make your custom solar project successful.

Conclusion

Non-standard solar panel design solves real problems where standard products fail. Modern manufacturing capabilities make custom panels practical and economical for applications ranging from RV installations to architectural integration.

The key is understanding what’s possible, knowing how design choices affect performance, and specifying exactly what you need. This guide provides that foundation—from physical constraints through electrical calculations to quality assurance and international logistics.

✅ Key Takeaways:

• Start with your constraints: the space you have and the power you need
• Work through calculations for voltage, cell count, and power output
• Account for temperature, derating, and real-world conditions
• Consider mounting method, environmental exposure, and maintenance
• Communicate clearly with manufacturers using detailed specifications
• Budget for 30-100% cost premiums and 8-16 week lead times
• Verify warranty terms, certifications, and incentive eligibility upfront

Understanding the Trade-offs

Custom solar panels aren’t the right choice for every project. Consider standard panels first—they’re cheaper, faster to obtain, have proven track records, carry better warranties, and qualify for more incentive programs.

Choose custom panels when:

• Standard panels physically won’t fit your space
• Your application requires specific voltages impossible with standard configurations
• You need flexible panels for curved surfaces
• Architectural integration requires custom sizes or aesthetics
• The premium cost is justified by making an otherwise impossible installation possible

Stick with standard panels when:

• Standard panels will work with minor installation modifications
• Budget is tight and cost per watt matters most
• You need faster delivery (standard panels ship in days, not weeks)
• Tax credits or rebates require certified, pre-approved products
• Long warranties and proven reliability are priorities

For the right applications—curved RV roofs where standard panels create gaps, marine installations requiring specific voltages, or architectural projects where aesthetics matter—custom panels are worth every penny of their premium. They transform impossible installations into functioning solar systems that deliver decades of reliable power.
