Hot Solar Panels? Don’t Count on the Junction Box to Fix That

If you’ve been wondering whether those little junction boxes on your solar panels help keep them cool, you’re in for a surprise. The short answer? They don’t cool your solar panels at all. In fact, during partial shading conditions—when you’d most want cooling—they become significant heat sources.

Let’s clear up this common misconception and explore what actually works for keeping your solar panels at optimal temperatures.

🔥 The Junction Box Reality: Heat Sources During Shading, Not Cooling Systems

Many homeowners assume that junction boxes—those small enclosures on the back of solar panels—help with cooling. After all, they contain bypass diodes and other electronic components, so surely they must do something about heat management, right?

⚠️ Reality Check: Junction boxes with bypass diodes generate significant heat when their protective systems activate during partial shading conditions. Under normal full-sun operation, they stay relatively cool and generate minimal heat. But when part of your panel gets shaded, everything changes.

When shading occurs (whether from a tree branch, bird droppings, or passing clouds), the bypass diodes spring into action. But their job isn’t temperature control—these diodes work like electrical safety valves, redirecting power around the affected cells to prevent catastrophic damage.

The trade-off? This protective electrical work generates substantial heat in the very situations where you’d prefer your system to stay cool.

🌡️ How Much Heat Do Junction Boxes Generate During Shading?

The numbers during shading events might shock you. Research from multiple institutions shows that when bypass diodes activate, they can reach internal junction temperatures of 150-190°C (300-375°F)—hot enough to fry an egg. Junction box surface temperatures are typically 20-30°C lower but still significantly elevated above normal operating levels.

Operating Condition	Heat Generation	Junction Box Temperature	Temperature Rise Above Cells
Normal sunny conditions	Minimal heat	Close to cell temperature	0-5°C
Light partial shading	4-7 watts	Cell temp + 25-50°C	25-50°C
Heavy shading conditions	6+ watts	85-125°C surface temp	50-75°C

Note: Payback periods are estimates based on typical installations. Actual results depend on local electricity rates, system size, specific installation conditions, and climate severity. Consult with solar professionals for location-specific economic analysis.

Important context: This heating is intermittent, occurring only during shading events, not during normal full-sun operation when your solar panels are producing maximum power.

💰 Why Solar Panel Temperature Actually Matters for Your Investment

Before we dive into real cooling solutions, let’s understand why temperature control is crucial for your solar system’s performance and longevity.

Solar panels lose efficiency as they heat up. For every degree above 25°C (77°F), panels typically lose 0.4-0.5% of their power output. On a hot summer day when panels reach 60°C, you’re looking at a 15-20% efficiency drop compared to ideal test conditions.

📊 Real-world Impact on System Performance:

• At 40°C: Your panels operate at about 94% of rated efficiency
• At 60°C: Efficiency drops to roughly 86% of rated capacity
• At 80°C: You’re down to about 78% of maximum potential

💡 Pro Tip: For a typical home solar system, this temperature-driven efficiency loss can mean hundreds of dollars in reduced electricity generation each year, with the impact being most severe in hot climates and poorly ventilated installations.

❄️ What Actually Cools Solar Panels: Proven Methods That Work

Since junction boxes don’t provide cooling and actually generate heat during shading, what methods actually keep your panels running efficiently? Let’s explore solutions that have been proven effective in real-world applications.

🌬️ Passive Cooling: Simple and Cost-Effective Solutions

1. Proper Installation Spacing

The most effective cooling method costs nothing extra—it’s smart installation design. Mounting panels 4-6 inches above your roof creates natural airflow that can reduce operating temperatures by 10-15°C. This “chimney effect” lets hot air escape while drawing cooler air underneath panels.

2. Strategic Positioning and Ventilation

Ground-mounted systems naturally run cooler than roof-mounted ones due to superior airflow on all sides. If roof mounting is your only option, ensure proper spacing between panel rows and adequate eave and ridge ventilation to promote air circulation.

3. Heat Sinks and Enhanced Thermal Management

Adding aluminum or copper heat sinks to panel backs can reduce operating temperatures by 5-8°C while improving efficiency by 3-10% under optimal conditions.

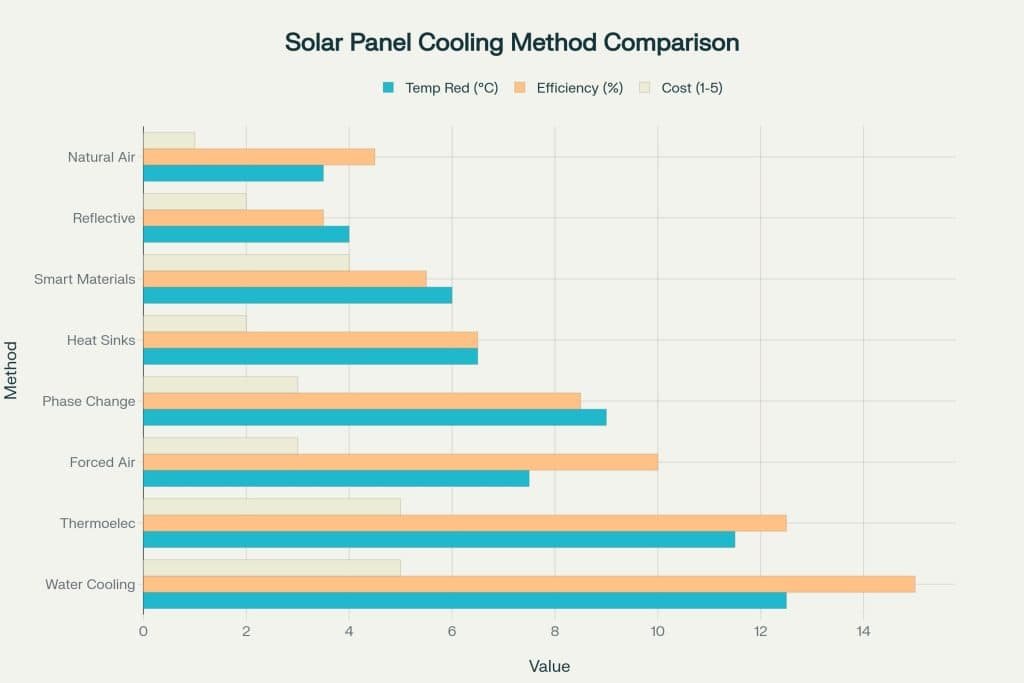

💧 Active Cooling: Maximum Temperature Reduction for Demanding Applications

Cooling Method	Temperature Reduction	Efficiency Improvement	Best For
Water Cooling (Spray)	10-15°C	9-15%	Hot, dry climates
Water Cooling (Backside)	10-15°C	9-15%	Combined with hot water systems
Forced Air Cooling	5-10°C	5-15%	Areas with consistent wind
Thermoelectric Cooling	8-15°C	10-15%	High-value installations
Phase Change Materials	6-12°C	5-12%	Temperature stabilization

⚠️ The Dangerous Myth: Why You Should Never Remove Junction Boxes

🚨 DANGER WARNING: Some misguided advice suggests removing junction boxes to eliminate their heat generation during shading. This is extremely dangerous and will destroy your panels while creating serious safety hazards.

Without bypass diodes, shaded solar cells experience catastrophic overheating, reaching temperatures of 305-550°C—hot enough to melt panel materials and ignite surrounding components.

🔥 What Happens Without Junction Box Protection:

1. Conventional panels without bypass protection: Severe burning and material bubbling within 30 minutes
2. Material destruction: Back sheets burning, encapsulant melting, glass cracking
3. Safety risks: Fire hazards, electrical dangers, and complete system shutdown

The heat generated by junction boxes during shading, while significant, is nothing compared to the catastrophic hot spots that form without bypass protection. Junction boxes are essential safety devices—their occasional heat generation is the price of preventing panel destruction.

🛠️ Practical Steps for Better Solar Panel Cooling

Here’s your action plan for keeping panels cool and efficient, with recommendations based on system size and climate conditions:

🎯 Immediate Actions (Free or Low-Cost)

• ✅ Verify adequate installation spacing during mounting—this is often the most impactful single factor
• 🧽 Keep panels clean—dust and debris trap heat and reduce efficiency
• ✂️ Trim vegetation that creates partial shading, which triggers junction box heating
• 🌡️ Monitor panel temperatures during peak heat periods using infrared thermometers

🔧 Medium-Term Improvements (Climate and Budget Dependent)

1. Add heat sinks to chronically hot panels in installations where high temperatures persist
2. Improve ventilation around junction boxes and panel mounting areas
3. Install temperature monitoring systems for larger installations where efficiency losses are costly
4. Consider reflective coatings for non-active surfaces in extreme heat environments

⚡ Long-Term Upgrades (For High-Value or Commercial Installations)

1. Evaluate active cooling systems for installations where efficiency gains justify costs
2. Consider advanced materials during system expansions or major maintenance
3. Integrate cooling strategies with other home energy improvements
4. Plan new installations with thermal management as a primary design consideration

💵 Making the Economics Work: When Cooling Investments Pay Off

Cooling improvements need to pay for themselves through increased electricity generation. The economics vary significantly based on system size, local climate, electricity rates, and installation specifics:

Cooling Strategy	Typical Payback Period	Best Applications	Climate Dependency
Simple improvements (spacing, cleaning)	2-4 years	All installations	All climates
Heat sinks and ventilation	3-6 years	Larger systems, hot climates	High temperature regions
Active cooling systems	4-8 years	Commercial, high-value residential	Hot climates with high energy costs

💡 Key Consideration: Most residential systems in moderate climates don’t require active cooling—proper installation design and maintenance are usually sufficient. Cooling investments typically make economic sense for systems larger than 10kW in regions where panels regularly exceed 70°C, especially in areas with electricity rates above $0.15/kWh.

🎯 The Bottom Line: Smart Thermal Management Starts with Understanding the Facts

Junction boxes serve a vital protective function, but cooling isn’t part of their job description. During shading events, they become necessary heat sources that prevent far more dangerous overheating in your solar cells.

🔑 Key Takeaways for Solar System Owners:

• Junction boxes generate heat only during shading conditions, not normal operation
• Proper installation spacing is often the most cost-effective cooling strategy
• Active cooling makes economic sense primarily for large systems in hot climates
• Never remove junction boxes—they prevent catastrophic panel damage
• Cooling effectiveness varies significantly based on local climate conditions

Remember, every degree you keep your solar panels cooler during operation translates directly into more electricity and better returns on your solar investment. The key is choosing the right thermal management approach for your specific situation, climate, and budget constraints.

Your solar panels are designed to last 25+ years. With proper temperature management based on facts rather than myths, they’ll deliver optimal performance throughout their entire lifespan, maximizing both your energy production and your return on investment.

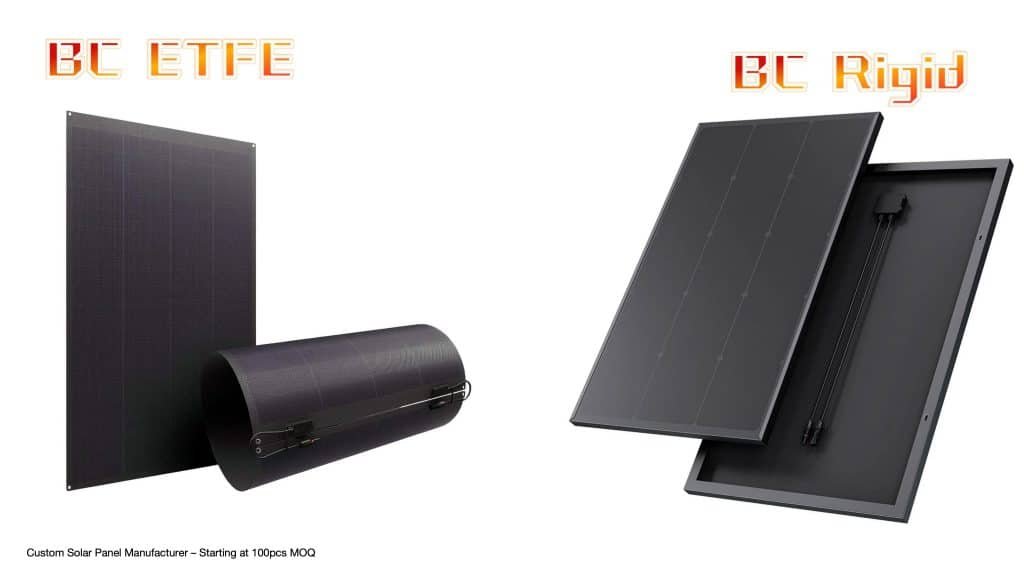

🚀 The Game-Changer: BC (Back Contact) Solar Panels Stay Naturally Cool

What if we told you there’s a solar panel technology that stays 67°C cooler during partial shading and eliminates most overheating problems altogether? Meet BC (Back Contact) solar panels—the breakthrough technology that’s revolutionizing how solar panels handle heat and shading challenges.

💡 Revolutionary Difference: While conventional panels can reach dangerous temperatures of 150-190°C during shading, BC panels maintain safe operating temperatures of just 78-103°C under the same conditions—a 70% reduction in temperature rise.

🔬 The Science: Why BC Panels Stay Cool

BC panels achieve their superior cooling through “soft breakdown” technology. Instead of the dangerous “hard breakdown” that conventional panels experience at 15-20 volts (creating concentrated hot spots), BC panels use gentle “soft breakdown” at just 2.3-5 volts.

Think of it like the difference between a pressure cooker explosion versus a gentle steam release valve—both handle excess energy, but one does it safely and smoothly.

📊 The Temperature Comparison That Changes Everything

Panel Technology	Shading Temperature	Temperature Rise	Safety Level
TOPCon (Conventional)	142°C	+84°C	❌ High risk
Ribbon Back Contact	153°C	+91°C	❌ High risk
HJT (Conventional)	162°C	+102°C	❌ High risk
BC/IBC Technology	78-103°C	+18 to +43°C	✅ Safe operation

Real-world example: On a day when your panels normally run at 60°C, partial shading would push conventional panels to a dangerous 142-162°C, while BC panels would only reach a manageable 78-103°C. That’s an average of 61.8°C cooler operation.

🛡️ Beyond Cooling: The Complete BC Advantage

1. Superior Heat Distribution

BC panels distribute heat uniformly across the entire cell surface instead of creating concentrated hot spots. It’s like the difference between a focused laser beam (conventional) versus a gentle warming lamp (BC technology).

2. Better Temperature Coefficients

• Conventional panels: Lose 0.34-0.38% power per °C temperature rise
• BC panels: Lose only 0.26-0.29% power per °C temperature rise

3. Enhanced Safety Profile

While conventional panels can reach catastrophic temperatures exceeding 550°C (creating fire risks), BC panels maintain safe operating temperatures even if protective systems fail.

⚡ Advanced BC Technologies Leading the Market

🌟 AIKO’s ABC Technology: Demonstrates 70% lower temperature rise compared to conventional TOPCon panels, with temperature coefficients as low as -0.26% per °C.

🌟 LONGi’s HPBC Technology: Prevents up to 70% of potential power losses due to partial shading through advanced soft breakdown features.

💰 The Financial Impact: Why BC Panels Pay Off

BC solar panels deliver superior value through:

1. Better Energy Production: Continue generating power efficiently even when partially shaded
2. Longer Lifespan: Lower operating temperatures mean less thermal stress and extended system life
3. Reduced Maintenance: Fewer temperature-related failures and degradation issues
4. Enhanced Safety: Significantly lower fire risk from overheating components
5. Future-Proof Investment: Superior performance in real-world conditions with obstacles like trees, buildings, or debris

🎯 Perfect For: Properties with unavoidable shading from trees, buildings, or other obstacles. BC technology handles real-world conditions that would cause conventional panels to overheat or underperform.

🌟 The Bottom Line: Why BC is the Smart Choice

BC solar panels don’t just solve the cooling problem—they eliminate it at the source. While other solutions try to manage heat after it’s created, BC technology prevents excessive heat generation in the first place through smarter electrical design.

For anyone serious about solar performance, longevity, and safety, BC panels represent the next generation of solar technology. You’re not just buying panels; you’re investing in technology that stays cool, safe, and productive when others would shut down or risk damage.

❓ Frequently Asked Questions (FAQs)

🌡️ Q1: How can I tell if my solar panels are overheating?

A: Use an infrared thermometer to check solar panel temperatures during peak sun hours. Based on industry standards, normal operating temperatures range from 45-65°C (113-149°F). If your panels consistently exceed 70°C (158°F) or you notice significant temperature differences between panels (more than 10°C), you may have overheating issues. Professional thermal imaging can identify hot spots and junction box problems that aren’t visible to the naked eye.

Note: Temperature thresholds may vary by panel type, consult your manufacturer’s specifications for exact operating ranges.

💰 Q2: Is it worth investing in cooling systems for a typical home solar installation?

A: For most residential systems in moderate climates, simple solutions like proper spacing and regular cleaning provide the best return on investment. Active cooling systems typically only make economic sense for:

• Large residential systems (10kW+) in very hot climates
• Installations where panels consistently exceed 70°C
• Commercial systems where small efficiency gains translate to significant dollar savings

🌍 Q3: How do different climates affect the need for solar panel cooling?

The following represents general guidance based on typical climate characteristics. Actual cooling needs depend on specific local conditions, installation design, and system size.

Climate Type	Cooling Priority	Commonly Effective Solutions
Hot & Dry (Arizona, Nevada)	High	Water cooling, heat sinks, enhanced spacing
Hot & Humid (Florida, Texas Gulf)	Medium-High	Forced air cooling, proper ventilation
Moderate (California, North Carolina)	Low-Medium	Proper spacing, regular cleaning
Cool (Northern states, Canada)	Low	Basic maintenance, ensure ventilation

Consult local solar professionals for region-specific recommendations based on your exact climate conditions and installation requirements.

🛡️ Q4: Will adding cooling systems void my solar panel warranty?

A: Warranty policies vary significantly by manufacturer. The following represents common industry practices, but always verify with your specific panel manufacturer before making any modifications.

Generally lower risk: External solutions that don’t directly attach to panels (ground-based cooling systems, improved spacing during installation). Potentially higher risk: Any modifications involving drilling, adhesives directly on panels, or electrical connections to panel circuits. Always required: Contact your panel manufacturer in writing before installing any cooling system and document their response to protect your warranty coverage. Many manufacturers provide specific guidelines for acceptable modifications in their warranty documentation.

⚠️ Q5: My junction boxes get very hot during shading. Should I be concerned?

A: Junction box heating during shading is normal, but monitor these warning signs based on industry observations:

• Immediate professional consultation needed: Junction box surface temperatures consistently exceeding 80-90°C, visible discoloration, burning smell, or crackling sounds
• Monitor closely: Surface temperatures consistently above 70°C during shading events
• Professional inspection recommended: If one junction box runs significantly hotter than others on the same system
• Remember: Some heating during shading is the normal trade-off for preventing catastrophic cell damage

Note: Internal diode junction temperatures can reach 150-190°C during heavy shading, which is normal operation. Surface temperatures are typically 20-30°C lower. Use infrared thermometers to measure surface temperatures safely.

🧽 Q6: How often should I clean my panels for optimal thermal performance?

A: Cleaning frequency recommendations based on general industry practice. Monitor your specific installation and adjust based on local conditions and visible dirt accumulation.

General guidelines by environment:

• Dusty/desert areas: Monthly inspection recommended, clean as needed
• Urban/suburban: Quarterly inspection, clean every 3-6 months or as needed
• Rural/clean air: Semi-annual inspection, clean twice yearly or as needed
• After events: Inspect and clean as needed after dust storms, pollen season, or heavy bird activity

Safety reminders: Clean early morning or late evening when panels are cool. Use soft brush, mild soap, and deionized water if available. Avoid pressure washers or abrasive materials that can damage anti-reflective coatings. Always follow your manufacturer’s cleaning guidelines and safety procedures.

---

📚 About This Article

This article is based on peer-reviewed research and industry studies on solar panel thermal management. Temperature data and cooling effectiveness claims are derived from controlled laboratory studies and field research. Economic estimates and maintenance recommendations represent general industry practices and may vary based on specific installation conditions, local codes, and manufacturer specifications. For recommendations specific to your installation, consult with certified solar professionals who can assess your unique situation, local climate conditions, and applicable building codes.
