ETFE Thickness in Flexible Solar Panels: Which Option Is Right for You?

When buying flexible solar panels, the thickness of the ETFE top layer makes a big difference. ETFE (Ethylene Tetrafluoroethylene) is the clear, tough material that protects your solar cells while letting sunlight through. Choosing the right thickness affects how long your panels last, how much power they produce, and where you can install them.

Unlike traditional glass solar panels, flexible panels with ETFE can bend to fit curved surfaces. They weigh much less and resist damage better. But not all ETFE solar panels are the same. The thickness of this special protective layer changes how your solar panels perform in different situations.

What Makes ETFE Special?

Before diving into thickness options, let’s understand why ETFE is the premium choice for flexible solar panels:

• Superior Light Transmission: ETFE lets up to 95% of sunlight reach your solar cells, compared to about 90% for cheaper PET material
• Self-Cleaning Surface: The non-stick surface lets rain wash away dirt easily
• UV Resistance: ETFE doesn’t yellow or degrade in sunlight like other plastics
• Chemical Resistance: It stands up to salt, acid rain, and pollution
• Long Lifespan: Quality ETFE panels typically last up to 10 years, while PET-based panels generally last only about 5 years

These properties make ETFE the gold standard for flexible solar panels, especially for demanding applications like marine use, RVs, and remote installations.

Three Main Thickness Options

Flexible solar panels come with three main ETFE thickness ranges:

Type	Thickness Range	Comparison
Thin	25-50μm	About the thickness of a fine plastic wrap
Medium	50-100μm	Similar to a standard plastic folder
Thick	100-150μm	Comparable to a thin plastic card

Let’s look at what each option means for your solar investment.

Thin ETFE (25-50μm): Maximum Flexibility

Thin ETFE panels offer maximum flexibility for curved installation surfaces.

Best For:

• Highly curved surfaces
• Portable and folding panels
• Ultralight applications
• Backpacking and camping gear
• Temporary installations

Benefits:

• Bends easily around curves
• Weighs the least
• Can be folded for storage
• Works well on uneven surfaces
• Allows maximum light transmission (approximately 94-95%)
• Typically costs less than thicker options

Drawbacks:

• Less protection against physical damage
• Generally shorter lifespan (approximately 5-7 years in typical conditions)
• Needs more careful handling
• More susceptible to scratches
• May degrade faster in harsh environments

The panels bend perfectly around the curved roof of my van, and they’re so light I barely notice the added weight.

– Ira Pennington, Van Life Enthusiast

Technical Details:

Thin ETFE allows for tighter bend radii, making it possible to install on more complex curved surfaces. The reduced material thickness provides less buffer against environmental degradation and physical damage, which is why these PV panels are better suited for controlled environments or occasional use rather than harsh, continuous exposure.

Medium ETFE (50-100μm): Balanced Performance

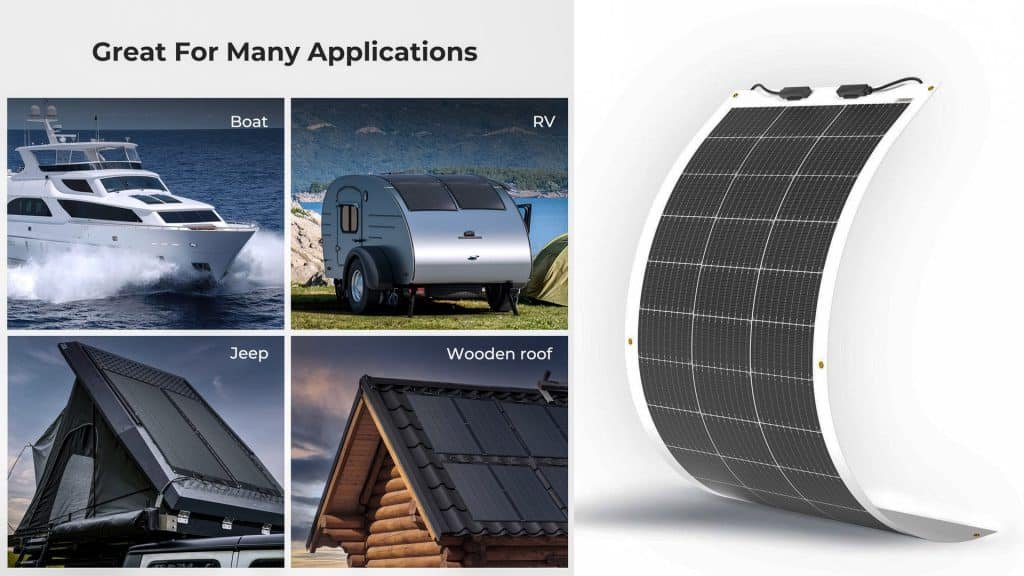

Medium ETFE PV panels offer a balance of flexibility and durability, perfect for RV installations.

Best For:

• RV roofs
• Boat decks
• Most vehicle installations
• Typical home flexible installations
• Semi-permanent setups

Benefits:

• Good balance of flexibility and strength
• Conforms to most curved surfaces
• Generally lasts 7-9 years in normal conditions
• Resists most environmental challenges
• Good light transmission (approximately 93-94%)
• Handles moderate impacts well
• Resists everyday wear and tear

Drawbacks:

• Slightly less flexible than thin options
• Weighs a bit more
• Typically costs more than thin options

Technical Details:

Medium thickness ETFE represents the most widely used option in the market. It provides good tensile strength (approximately 6,000 psi according to material specifications) while maintaining adequate flexibility for most common installation surfaces. This thickness range can typically handle moderate curves without causing stress to the solar cells, making it ideal for the gentle curves found on most RV and boat surfaces.

Thick ETFE (100-150μm): Maximum Durability

Thick ETFE solar panels provide maximum durability for harsh environments like marine applications.

Best For:

• Marine environments
• Harsh weather locations
• Industrial settings
• Remote installations
• Long-term permanent setups
• High-value commercial installations

Benefits:

• Longest potential lifespan (typically 10+ years under proper conditions)
• Best protection against impacts
• Superior resistance to salt and chemicals
• Lower maintenance needs
• Better long-term performance stability
• Most resistant to scratches and abrasion
• Better protection in extreme environments

Drawbacks:

• Less flexible for curved surfaces
• Highest weight (though still much lighter than glass)
• Typically most expensive option
• Usually requires gentler curves for installation

We installed thick ETFE panels on our sailboat four years ago. Despite constant salt spray and tropical sun, they still perform at close to their original output.

– Clive Mortan, Ocean Voyager

Technical Details:

Thick ETFE PV panels offer maximum protection with the material’s inherent resistance to environmental factors. ETFE as a material has high temperature resistance (up to 180°C in material testing), though in actual solar panel applications, operating temperatures are typically much lower. The increased material thickness creates a substantial buffer against UV degradation and environmental factors. Research indicates that quality ETFE maintains excellent optical properties after extended environmental exposure.

How The Inside Structure Works With ETFE Thickness

Quality flexible solar panels use a multi-layer design:

1. ETFE Front Layer: Protects everything beneath it
2. EVA Layer: Bonds components together and seals out moisture
3. Fiberglass Layer: Provides structure and heat dissipation
4. Solar Cells: Convert sunlight to electricity
5. Second Fiberglass Layer: Balances the structure
6. Second EVA Layer: More protection and bonding
7. KPF Backsheet: Seals the back against elements

The ETFE thickness affects how the whole system performs. Thicker ETFE provides better protection for all the layers beneath it. Thinner ETFE makes the entire system more flexible but may allow more stress on inner components when bent.

How Thickness Affects Performance

Light and Power

All ETFE thicknesses allow excellent light transmission to the solar cells:

ETFE Type	Light Transmission	Impact on Power
Thin (25-50μm)	~94-95%	Maximum initial power output
Medium (50-100μm)	~93-94%	Balanced initial and long-term output
Thick (100-150μm)	~92-93%	Slightly lower initial but more stable long-term

These small differences mean thicker solar panels might produce slightly less power initially than thinner ones. However, thicker panels often maintain their performance longer in harsh conditions, potentially making them more productive over their entire lifespan.

The temperature of solar cells affects output significantly. Cells lose efficiency as they get hotter (typically 0.3-0.5% per degree Celsius above standard test conditions). Proper installation with adequate airflow beneath panels is generally more important for temperature management than ETFE thickness alone.

Flexibility and Installation

The thinner the ETFE, the more the panel can potentially bend:

• Thin solar panels can typically conform to tighter curves
• Medium panels work on most moderately curved surfaces
• Thick panels generally require gentler curves

The specific bend radius capabilities vary by manufacturer and overall solar panel design, not just ETFE thickness. Always consult manufacturer specifications for exact bend limitations.

Forcing panels to bend beyond their rated flexibility can damage the solar cells inside. Microcracks that form may not be visible but will reduce solar panel output and lifespan.

Weight Differences

Weight matters for portable systems or weight-sensitive installations:

• Thin ETFE is the lightest option
• Medium ETFE adds modest weight
• Thick ETFE is the heaviest ETFE option

For reference, thin ETFE typically weighs approximately 44-87 g/m², while thick ETFE weighs approximately 175-262 g/m².

Even the heaviest ETFE PV panels generally weigh 70-80% less than traditional glass solar panels with aluminum frames. This significant weight reduction is why ETFE panels are popular for mobile applications, regardless of the specific thickness chosen.

Weather Resistance and Lifespan

All ETFE thicknesses resist UV radiation far better than alternative materials like PET, but thickness affects long-term durability:

• Thin ETFE: Good UV resistance but with less material buffer
• Medium ETFE: Very good resistance with moderate material buffer
• Thick ETFE: Superior resistance with maximum material protection

ETFE has demonstrated excellent resistance to weathering in accelerated testing. However, real-world performance typically varies with thickness:

• Thin ETFE generally maintains good performance for around 5-7 years in typical conditions
• Medium ETFE typically offers about 7-9 years of good performance before significant degradation
• Thick ETFE can potentially maintain performance for 10+ years in appropriate environments

Actual lifespan varies based on installation location, environmental conditions, installation method, and manufacturing quality.

Manufacturing Quality Matters Too

The thickness of ETFE is important, but so is manufacturing quality:

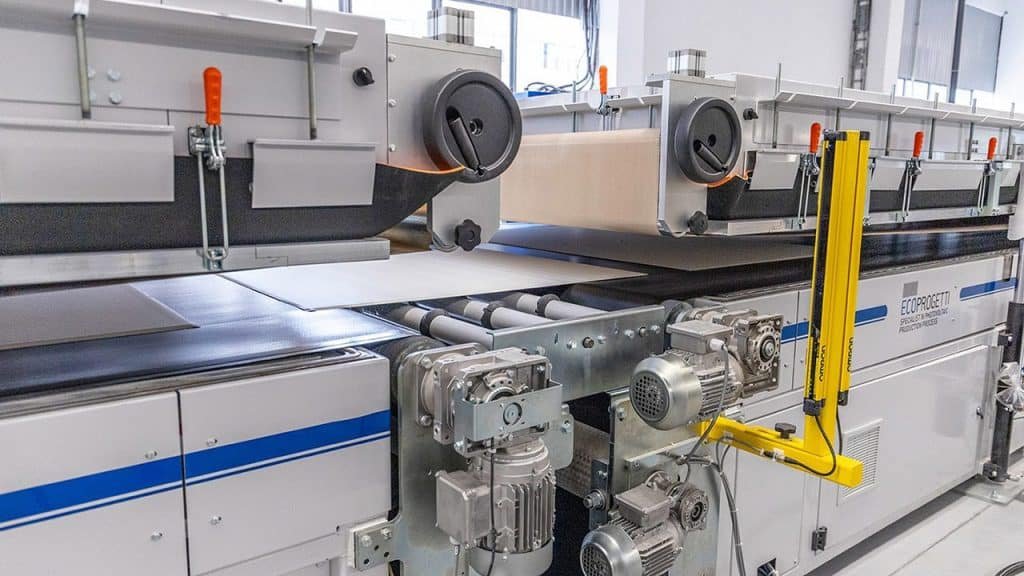

Lamination Process

How the layers are bonded affects durability. Quality solar panels use:

• Controlled vacuum lamination to eliminate air bubbles
• Precise temperature control during bonding
• Edge sealing to prevent moisture intrusion

Edge sealing is particularly critical for flexible solar panels as moisture intrusion at the edges is one of the primary failure modes. Poor lamination can cause delamination (layers separating) regardless of ETFE thickness.

Cell Quality

The solar cells beneath the ETFE matter too:

• Premium solar panels typically use high-efficiency monocrystalline cells (above 23% efficiency)
• Quality cells with proper connections better resist microcracks
• Better cells make more power in the same panel size

Cheap PV panels might use lower-quality cells beneath even thick ETFE, giving poor results.

Junction Box and Connections

Water intrusion at connections causes many panel failures:

• Quality solar panels use fully waterproof junction boxes
• Marine-grade connectors resist corrosion
• Proper strain relief prevents wire damage

Testing and Certification Standards

Quality ETFE solar panels typically undergo testing to industry standards:

• IEC 61215: Design qualification and type approval for terrestrial PV modules
• IEC 61730: Photovoltaic module safety qualification
• UL 1703: Standard for flat-plate photovoltaic modules and panels

While these standards don’t specify ETFE thickness, they set performance and safety requirements that influence manufacturers’ thickness choices for different applications.

Making the Right Choice for Your Needs

If You Need	Best Thickness	Why It’s Right
Maximum flexibility	Thin (25-50μm)	Best for tight curves and portable applications
Balanced performance	Medium (50-100μm)	Good for most common uses like RVs and boats
Maximum durability	Thick (100-150μm)	Best for harsh environments and long-term installations

Choose Thin ETFE (25-50μm) if:

• Your installation surface has significant curves
• Weight is a critical factor
• You plan to fold or roll the panels for storage
• You’re prepared for potentially more frequent replacement
• Your budget is limited
• You use panels occasionally rather than daily

Choose Medium ETFE (50-100μm) if:

• You need a good balance of flexibility and durability
• Your installation has moderate curves
• You want reliable performance for several years
• You’re looking for the best value for most common uses
• You use your system regularly in varied conditions
• You want good performance at a moderate price

Choose Thick ETFE (100-150μm) if:

• Long-term durability is your top priority
• Your panels will face harsh weather or saltwater
• Your installation surface is flat or has gentle curves
• You want maximum protection and potential longevity
• Your system is difficult to access for replacements
• You’re willing to pay more for premium protection
• The installation is permanent or semi-permanent

Real-World Applications

Marine Installations

Boats and marine environments demand durability. Salt spray corrodes most materials quickly. UV reflection from water intensifies sun exposure.

Recommendation: Thick ETFE (100-150μm)

• Resists salt corrosion
• Handles impacts from gear and weather
• Stands up to intense UV from direct sun and water reflection
• Requires less frequent maintenance
• Maintains seal integrity in constantly moving environment
• Withstands occasional cleaning when needed

Research indicates that marine environments accelerate degradation of standard PET-based panels, while ETFE panels offer significantly better durability in these conditions.

RVs and Camper Vans

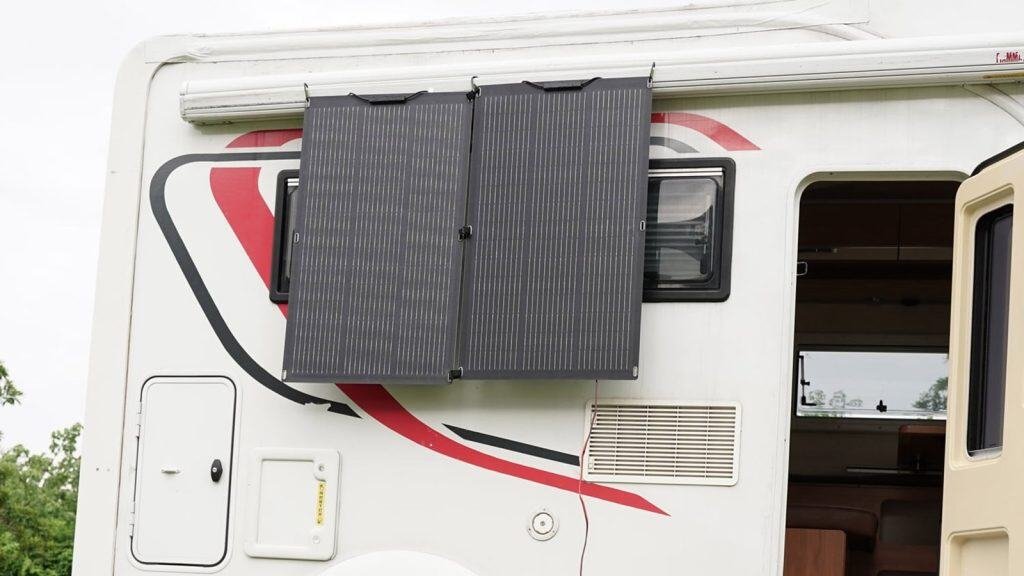

Medium ETFE panels installed on an RV roof, balancing flexibility with durability for mobile applications.

RV installations need to handle road vibration, low-hanging branches, and various weather conditions.

Recommendation: Medium ETFE (50-100μm)

• Flexes with the typical curves of RV roofs
• Withstands highway-speed wind forces
• Balances weight and durability concerns
• Provides good service life for most travelers
• Handles temperature fluctuations during travel
• Resists tree branch scrapes at campgrounds

Medium-thickness panels offer a good compromise between flexibility and durability for the typical conditions encountered in RV applications.

Portable and Emergency Power

For systems you’ll move frequently or store between uses, flexibility and weight are key factors.

Recommendation: Thin ETFE (25-50μm)

• Lightest weight for carrying
• Can fold or roll for compact storage
• Works well on uneven ground or temporary mounts
• Ideal for backpacking, camping, and emergency kits
• Easy to deploy quickly when needed
• Most affordable option for occasional use

Modern thin ETFE portable panels are significantly lighter than traditional panels, making them practical for mobile applications. Some designs can be folded or rolled to a fraction of their deployed size.

Installation Tips for Any ETFE Thickness

Proper installation maximizes the life of any ETFE panel:

1. Allow Airflow: Always leave space between the panel and mounting surface for cooling
2. Respect Bend Limits: Never force panels to bend more than manufacturer specs
3. Secure Edges: Ensure all panel edges are properly secured to prevent wind lift
4. Protect Wiring: Use proper strain relief and wire protection
5. Avoid Sharp Edges: Ensure no sharp edges contact the panel surface
6. Follow Mounting Instructions: Use manufacturer-recommended mounting methods

These practices help any thickness of ETFE panel perform better and last longer.

Key Takeaways

1. Thin ETFE (25-50μm) offers maximum flexibility but typically shorter lifespan
2. Medium ETFE (50-100μm) provides a good balance for most applications
3. Thick ETFE (100-150μm) delivers maximum protection in challenging environments
4. Quality manufacturing is as important as ETFE thickness
5. Installation method significantly affects panel performance and longevity
6. Consider your specific application environment before deciding

Choose the right ETFE thickness the first time, and your flexible solar panels will better meet your specific needs.

Final Thoughts

ETFE has significantly advanced flexible solar technology. Its properties make it superior to alternatives like PET, especially for demanding applications. By matching ETFE thickness to your specific requirements, you’ll get a better balance of flexibility, durability, weight, and value.

Remember that overall quality is equally important as thickness. Choose panels from reputable manufacturers who use quality materials throughout the entire panel construction, not just the ETFE layer.

With the right ETFE thickness and quality construction, today’s flexible solar panels can deliver impressive performance and durability for a wide range of applications.

Get Expert ETFE Panel Advice

Couleenergy offers premium flexible solar panels in all three ETFE thickness options. Our expert team can help you select the perfect solution for your application. Contact us today for personalized assistance with your solar project.

Frequently Asked Questions

How much does ETFE thickness affect solar panel price?

ETFE thickness typically affects the price of flexible solar panels, with thicker options generally commanding higher prices. The price difference varies by manufacturer, but choosing a thicker ETFE panel often means investing in longer potential lifespan and better durability. When evaluating cost, consider the total ownership cost over the expected life of the system rather than just the initial purchase price.

Can I install thick ETFE panels on a curved RV roof?

Yes, thick ETFE panels can be installed on curved RV roofs, but they require gentler curves than thinner options. Always check the manufacturer’s specifications for minimum bend radius before installation. Forcing thick ETFE panels to conform to tight curves can damage the internal solar cells, reducing performance and lifespan.

How do I clean ETFE solar panels?

ETFE solar panels are relatively easy to clean due to their non-stick surface. For routine cleaning, simply rinse with water and use a soft cloth or sponge if needed. Avoid abrasive cleaners or brushes that could scratch the ETFE surface. While ETFE has self-cleaning properties that allow rain to wash away most dirt, occasional cleaning helps maintain optimal performance, especially in areas with heavy pollution or bird activity.

Will ETFE panels yellow over time like other plastics?

Unlike many plastics, quality ETFE films are highly resistant to yellowing from UV exposure. This is one of ETFE’s major advantages over alternatives like PET. Accelerated weathering tests show ETFE maintains excellent optical properties after extended exposure. Thicker ETFE films typically provide even better resistance to any potential yellowing or degradation over time.

Are ETFE solar panels safe in storms with hail?

ETFE solar panels offer good resistance to hail impact, with thicker ETFE providing the best protection. Quality thick ETFE panels can withstand standard hail impact tests without damage to the underlying solar cells. While no flexible panel is completely immune to extreme weather, ETFE panels are generally more resilient than many alternatives when facing moderate storm conditions.
