Back Contact + Low-Glare Materials: Solving Solar Panel Glare Problems

Solar energy is clean and sustainable. But one problem keeps showing up: glare. When sunlight bounces off solar panels, it creates bright reflections. These reflections can blind pilots, distract drivers, and annoy neighbors.

Standard solar panels act like mirrors in the sky. They reflect concentrated beams of light from two main sources: smooth glass surfaces and reflective metal grid lines on the cell face. This isn’t just uncomfortable—it’s dangerous near airports and highways. It’s also becoming a major barrier for solar projects in residential areas.

✓ Proven Solution: Back Contact (BC) cell design eliminates metal grid lines that cause the brightest flashes. When combined with specialized low-glare surface materials, these panels reduce reflections by 74.5% to 90% compared to conventional modules—verified by independent testing laboratories.

⚡ Two Proven Approaches Covered in This Article:

• Glass-based Back Contact modules (like LONGi HPBC) use specially treated glass surfaces + nano-coatings
• Polymer-based flexible solar panels use ETFE (Ethylene Tetrafluoroethylene) covers with a textured finish
• Both leverage Back Contact technology but serve different applications and markets
• All data in this article is verified through independent testing labs and peer-reviewed research

The Growing Glare Problem

Glare from solar panels isn’t a small issue anymore. As solar installations spread across rooftops, farms, and industrial sites, the complaints are increasing. Projects are being delayed, permits are being denied, and some installations face legal challenges—all because of glare.

🚨 Where Glare Creates Real Problems

Near airports: Air traffic controllers and pilots need clear visibility. A flash of reflected sunlight can temporarily blind someone during critical moments. Retinal irradiance as low as 7-10 W/m² can cause flash blindness or discomfort to human eyes, according to solar glare research from Sandia National Laboratories. Aviation authorities now require formal glare assessments for solar projects near flight paths.

Along highways: Drivers traveling at high speeds can’t afford distractions. A sudden bright reflection from roadside solar arrays creates safety hazards. Transportation departments now scrutinize solar projects near roadways for potential glare impacts.

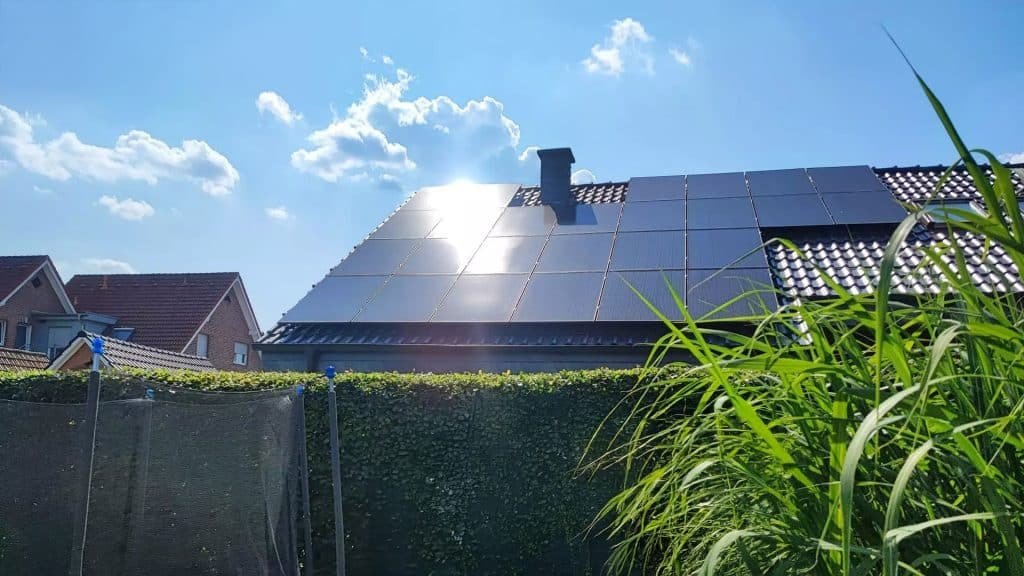

In neighborhoods: Homeowners complain about light pollution from neighboring solar installations. The constant reflection into windows makes rooms uncomfortably bright. Some communities have even blocked solar projects because of glare concerns, with documented cases in California, Arizona, and Texas.

The Technical Challenge

Traditional solar panels use 3.2mm thick tempered glass as a protective cover. Glass is smooth and highly reflective. When sunlight hits it at certain angles, the light bounces back in concentrated beams.

The bigger problem comes from metal grid lines on the cell surface. These silver “busbars” act like thousands of tiny mirrors. They create intense flashes called “glint.” Independent testing by China’s National Center of Supervision and Inspection on Solar Photovoltaic Product Quality (CPVT) shows these metal lines can be 99.28% brighter than the surrounding cell surface.

Combined, these two reflection sources make conventional solar panels highly visible and potentially blinding to nearby observers.

Understanding the Two Glare Sources

To solve glare effectively, you need to address both reflection sources. Let’s break down where the light comes from and how much each source contributes.

Glare Source	Conventional Panels	Back Contact + Low-Glare	Reduction
Glass/Surface Reflection	4-10% (specular beam)	0.5-2.5% (diffuse scatter)	50-90%
Metal Grid Glint	99.28% brighter spots	Zero (no front metal)	99.28%
Total Reflectivity	4-10%	0.9-2.5%	74.5-90%

Note: Reduction percentages verified by CPVT testing (LONGi HPBC vs TOPCon) and TU Delft research (ETFE vs glass, 2024).

Source 1: Glass or Polymer Surface

Standard solar panels use 3.2mm thick tempered glass. This glass protects the solar cells underneath. But it also creates reflection.

Modern solar panel glass with anti-reflective coatings typically reflects 2-5% of incoming light at normal incidence (when the sun is directly overhead). That sounds small, but it’s enough to create noticeable glare. The reflection is “specular”—meaning it acts like a mirror, bouncing light in predictable, concentrated directions.

📊 Research Finding: At high angles of incidence (around 80°), even treated glass can reflect up to 40% of incoming light. This creates severe glare hazards during sunrise and sunset when the sun is low on the horizon. (Source: TU Delft IEEE Journal of Photovoltaics, 2024)

Why angle matters: When the sun is low in the sky (early morning or late afternoon), light strikes the solar panel at a steep angle. At these angles, even excellent anti-reflective coatings become less effective, and reflection increases dramatically.

Source 2: Metal Grid Lines (Busbars)

Most solar cells have visible silver metal lines across their front surface. These lines collect electricity from the cell. They’re made of silver or silver-coated copper.

The problem? Metal is highly reflective. Testing by China’s National Center of Supervision and Inspection on Solar Photovoltaic Product Quality (CPVT) found that busbar brightness can be 99.28% higher than the surrounding cell surface in conventional panels.

This “glint” is different from general glare. It’s a momentary, high-intensity reflection. Think of it like someone flashing a mirror in your eyes. For pilots and drivers, even a split-second flash can be hazardous. The problem is that these grid lines cover 5-8% of the cell surface on conventional panels, creating hundreds of tiny reflective points per panel.

Solution 1: Back Contact Cell Technology

Back Contact solar cells represent a fundamentally different approach to cell design. Instead of putting metal grid lines on the front of the cell, all electrical connections move to the rear surface.

✓ Zero Front-Surface Metal: The Key Innovation

Traditional solar cells have visible busbars and fingers across the front. Back Contact cells eliminate this entirely. The entire front of the cell is pure silicon with an anti-reflective coating. There’s nothing metal to create glint.

This isn’t just a small improvement. Removing the metal grid eliminates the brightest reflection sources. Those momentary flashes that could blind someone? They’re gone completely. The front surface becomes uniformly dark and non-reflective.

📈 Verified Performance Data

Testing by CPVT (China National Center of Supervision and Inspection on Solar Photovoltaic Product Quality) confirmed the dramatic impact of Back Contact technology. These are independently verified test results, not marketing claims.

🏆 LONGi HPBC (Hybrid Passivated Back Contact) Technology Results:

• 74.5% reduction in reflectivity compared to conventional TOPCon modules (CPVT verified)
• 99.28% reduction in maximum busbar brightness—eliminating glint entirely (CPVT verified)
• 0.9% Total Solar Reflectivity (TSR) certified by Singapore’s SAC-accredited OTM Labs

These are independently verified test results from accredited laboratories, not manufacturer estimates.

Testing Standards: CPVT uses ISO-compliant testing protocols. OTM Labs holds Singapore Accreditation Council (SAC) certification.

→ View LONGi Official Test Results & Press Release

Multiple Manufacturers, Consistent Results

LONGi HPBC: Uses specially treated glass with nano-scale anti-reflective coating plus matte black cells. Recommended reflectivity input for glare modeling: 1.7-2.5%. Currently holds world record for module efficiency at 25.4% (Fraunhofer ISE certified, October 2024).

Aiko ABC (All Back Contact): Features “pure-black front without gridlines” design. Reflection rates in the 1.7-2.5% range with absorption exceeding 90%. Commercial residential panels achieve 24.3% efficiency.

Maxeon IBC: Long-established interdigitated back contact technology with proven 40-year warranties. Reflectivity approximately 2.0-2.5%. Gen 7 modules achieve up to 24.1% efficiency, with Gen 8 expected to exceed 25% in 2025.

Why these numbers matter: For procurement purposes, you’re looking at 24-25%+ efficiency from Back Contact modules versus 20-22% from conventional panels. That’s 10-15% more power from the same footprint, which can justify the premium cost.

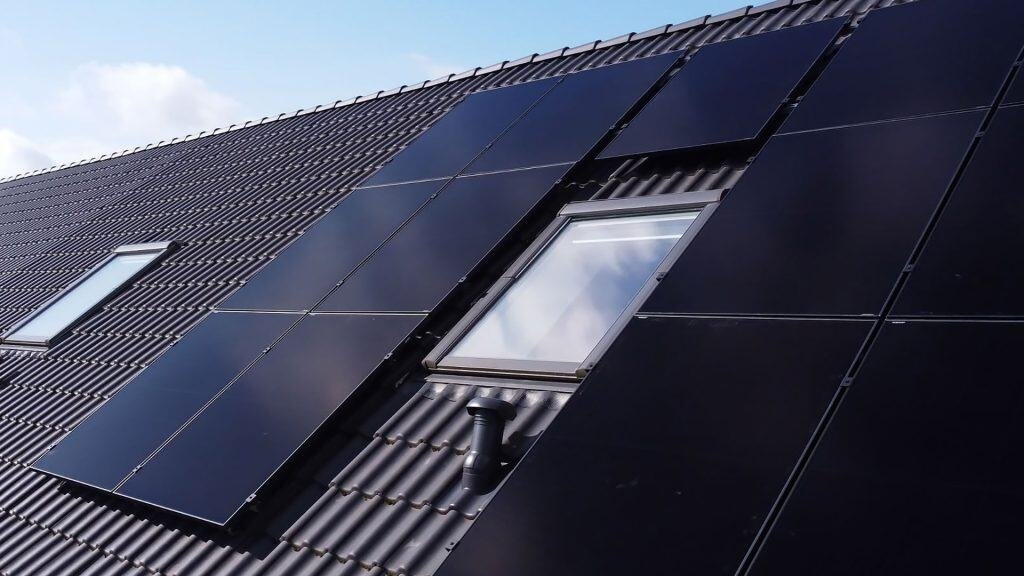

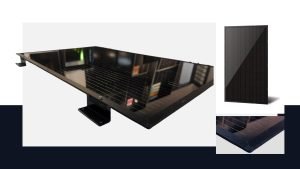

Uniform Black Appearance

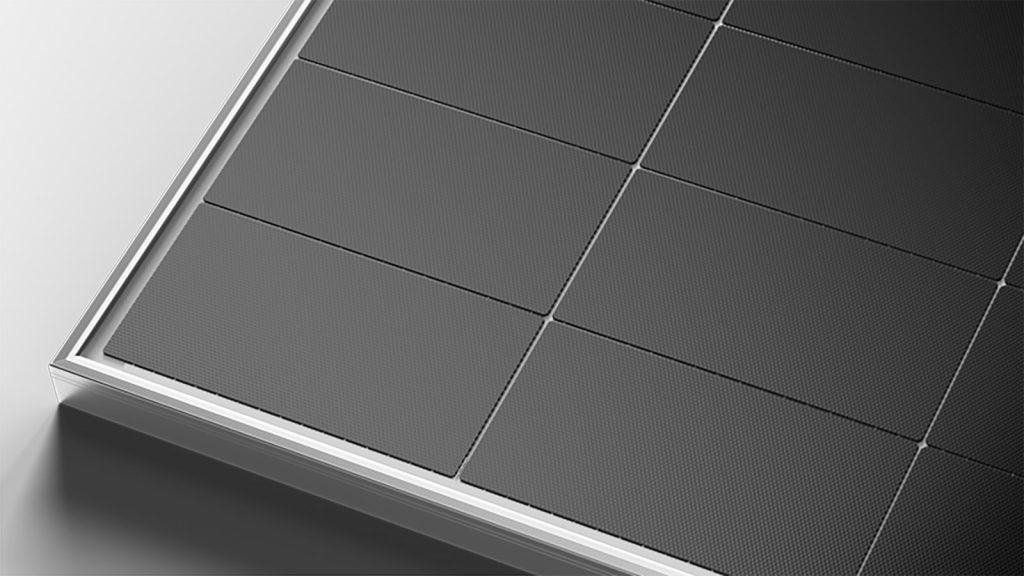

Back Contact cells appear completely black from the front. There are no visible metal lines, no silver busbars, no bright spots. Just a smooth, dark surface that absorbs light instead of reflecting it. This aesthetic advantage is particularly important for:

• Residential installations where homeowner associations have strict appearance requirements
• Commercial buildings seeking LEED credits and architectural integration
• High-visibility locations where public perception matters

Solution 2: ETFE Polymer Surfaces for Flexible Panels

ETFE (Ethylene Tetrafluoroethylene) is a fluoropolymer material used in flexible solar panels. It’s the same plastic used on stadium roofs like the Allianz Arena in Munich and greenhouses worldwide. When used as a solar panel cover, it behaves completely differently than glass.

🔬 Scientific Evidence: TU Delft Research (2024)

A peer-reviewed study published in the IEEE Journal of Photovoltaics (November 2024) provides definitive data on ETFE’s optical properties. Researchers at TU Delft in the Netherlands measured matte ETFE’s specular reflectance at less than 0.5%—compared to greater than 4% for standard glass at the same angle.

Study Details:
Title: “Comprehensive Glare Hazard Analysis of Ethylene Tetrafluoroethylene (ETFE) Based Frontsheet for Flexible Photovoltaic Applications”
Authors: Sreejith KP, Venkatesh V, Padmakumar G, Smets AHM
Journal: IEEE Journal of Photovoltaics, Vol. 14, No. 6, 2024
DOI: 10.1109/JPHOTOV.2024.3463961

This isn’t marketing hype. It’s verified scientific data from one of Europe’s leading technical universities, published in a peer-reviewed journal after rigorous scientific review. The study specifically examined ETFE-based frontsheets for flexible photovoltaic applications in glare-sensitive environments.

Key findings: Matte ETFE reduces specular reflectance to below 0.03 (3%) across all angles of incidence from 10° to 80°. In comparison, glass specular reflectance can reach 0.4 (40%) at 80° angle of incidence—meaning ETFE is 10-13x less reflective at steep angles where glare is most problematic.

Diffuse vs. Specular Reflection: Why It Matters

Here’s the critical difference that determines whether something causes glare:

• Glass creates specular reflection → Like a mirror. Reflected light stays in a tight, concentrated beam. This concentrated beam is what blinds people. The beam can travel hundreds of meters while maintaining intensity.
• ETFE creates diffuse reflection → Light scatters in multiple directions. Like comparing a mirror to white paper—both reflect light, but paper doesn’t create glare because the light spreads out immediately.

The TU Delft study confirms that reflection from matte ETFE is “highly diffusive in nature in contrast to glass.” This means even if some light reflects off ETFE, it’s scattered over a wide area and doesn’t create concentrated beams that can cause flash blindness.

📏 The Physics: Measured Scatter Angles

Material	Slope Error	Reflection Type	Glare Hazard
Standard Glass	0.1 milliradians	Specular (mirror-like)	High
Textured ETFE	10-15 milliradians	Diffuse (scattered)	Low/Green Zone

What this means practically: Slope error indicates how much the reflected beam spreads. Glass at 0.1 mrad maintains a tight, concentrated beam. ETFE at 10-15 mrad scatters light over a 100-150x wider area. When you look at sunlight reflecting off textured ETFE, you see a fuzzy, washed-out spot. It doesn’t hurt to look at. The TU Delft researchers confirmed that “ETFE panels produce glare comfortably below ocular discomfort thresholds.”

⚠️ ETFE Surface Finish Matters—Specify Correctly

Glossy/Smooth ETFE: ❌ Acts like a flexible mirror. High specular reflectance. Use only where glare isn’t a concern. Do not specify for airports, highways, or residential areas.

Textured/Matte ETFE: ✓ Features embossed patterns. The proven low-glare option validated by TU Delft study. Specular reflectance <0.5%. This is what you want to specify.

Fabric-finish ETFE: ✓✓ Maximum light scattering. Best for airports or highways. Highest diffusion, lowest glare.

Procurement Warning: When ordering flexible solar panels, you MUST specify “textured” or “matte” finish in your purchase order if glare is a concern. Request samples to verify surface treatment before placing large orders. Not all manufacturers default to textured finish.

Combining Solutions: Maximum Glare Reduction

The most effective approach combines Back Contact cells with low-glare surface materials. Each addresses one of the two main glare sources. Think of it as a layered defense system.

🏢 Glass-Based BC Modules (Rigid Installations)

Technology combination (what you’re actually buying):

1. Back Contact cells (eliminate front-surface metal glint—the brightest source)
2. Matte black cell finish (absorbs more light, reduces reflection from silicon surface)
3. Nano-scale anti-reflective glass coating (reduces glass reflection from 4% to 2%)
4. Sub-micron textured surface (scatters remaining reflection into diffuse pattern)

Measured result: 74.5% lower reflectivity than conventional panels (CPVT verified). Total Solar Reflectivity of just 0.9% (OTM Labs certified).

Best for: Rooftops, ground mounts, solar farms, permanent installations where weight isn’t a constraint

Real-world validation: LONGi successfully deployed Hi-MO X6 Anti-Glare modules at a Chinese airport in March 2025, demonstrating the technology works in aviation-adjacent applications—the most demanding glare environment.

Typical specifications:

• Module efficiency: 24-25.4%
• Power output: 430-670W (depends on size)
• Total Solar Reflectivity: 0.9-2.5%
• Warranty: 25-30 years product, 30-year performance
• Weight: Standard (similar to conventional glass panels)

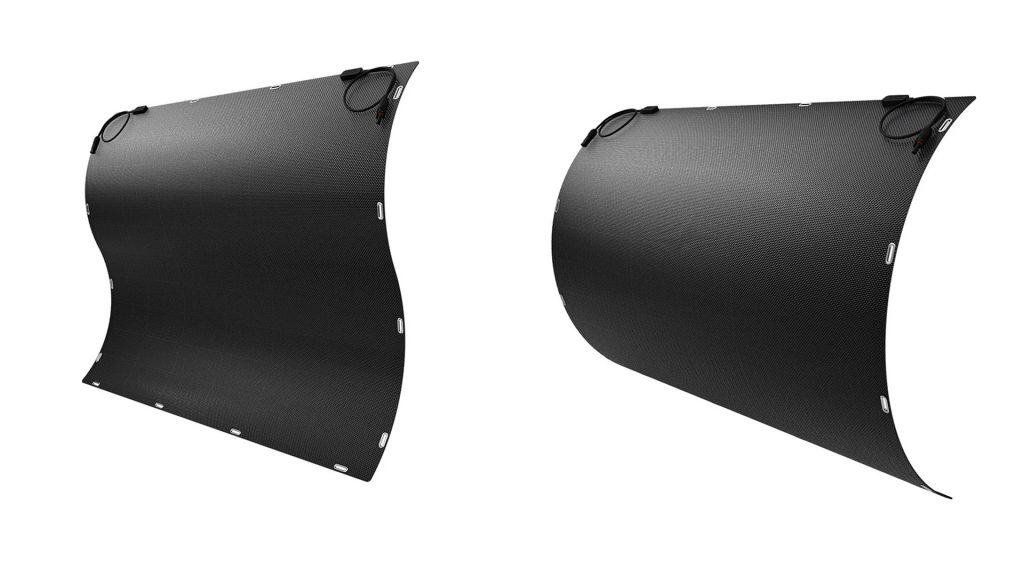

🚐 ETFE-Based Flexible BC Modules (Lightweight/Mobile)

Technology combination:

1. Back Contact cells (eliminate front-surface metal glint)
2. Textured ETFE cover (specular reflectance <0.5%, highly diffuse scatter per TU Delft 2024)
3. Black backsheet (absorbs light passing through cell gaps)
4. POE or EVA encapsulation (maintains flexibility while protecting cells)

Estimated result: Combined reflectivity 0.5-2.5% in scattered diffuse pattern. Approximately 80-90% less glare than conventional panels based on TU Delft comparative research.

Best for: Vehicles, boats, RVs, curved surfaces, temporary structures, weight-sensitive applications, portable solar systems

Typical specifications:

• Module efficiency: 18-22% (lower than glass due to ETFE transmission losses)
• Weight: 70-80% lighter than equivalent glass panel
• Flexibility: Can bend to 30° radius (varies by manufacturer)
• Reflectivity: <0.5% specular (textured ETFE)
• Applications: Mobile, marine, aerospace, building-integrated

🛡️ The Layered Defense Strategy

Think of it as multiple barriers against glare:

• Layer 1: Low-glare surface material (treated glass or textured ETFE) reduces and scatters reflection—cuts reflection by 50-75%
• Layer 2: Back Contact cells eliminate the brightest spots (metal grid reflections)—eliminates 99.28% of glint
• Layer 3: Black cell finish and backsheet absorb remaining light—reduces residual reflection by another 30-50%

Combined effect: 74.5-90% total glare reduction vs conventional panels

Critical Applications and Real-World Performance

✈️ Aviation Safety Zones

Airports require formal glare assessments using SGHAT (Solar Glare Hazard Analysis Tool) developed by Sandia National Laboratories. This tool is the industry standard and is recognized by the FAA and international aviation authorities.

Traditional solar panels with front-contact cells often fail glare assessments near runways. The metal grid reflections create unacceptable hazard levels for air traffic control towers and approach paths. Even solar panels located 1-2 miles from runways can create hazardous glare during certain times of day.

✓ Success Story: LONGi successfully deployed Hi-MO X6 Anti-Glare glass-based BC modules at a Chinese airport in March 2025 (press release dated March 19, 2025), validating the technology for aviation-adjacent applications. This represents the first documented large-scale airport deployment of BC anti-glare technology.

Significance: Airport projects undergo the most rigorous glare assessments. This deployment proves BC technology can pass these stringent requirements.

Back Contact modules consistently score in the “green zone” (low potential for after-image) for locations that would fail with standard panels. In SGHAT modeling, BC panels typically show:

• Zero “red zone” (retinal burn) results—not possible with non-concentrating PV
• Minimal “yellow zone” (after-image potential) minutes per year
• Majority “green zone” (low hazard) throughout the year

🚗 Highway and Transportation Corridors

Transportation departments worry about driver distraction. Roadside solar installations must not create sudden flashes that cause accidents. Several U.S. states now require glare assessments for solar projects within 500 feet of highways.

The diffuse reflection from low-glare materials doesn’t create the sudden flashes that impair vision. Drivers might notice dark panel surfaces, but they won’t be blinded by mirror-like reflections or metal glint. The difference is similar to driving past a dark building versus driving past a glass building at sunset—one is a non-event, the other can be dangerous.

Real-world consideration: Highway solar projects face increasing scrutiny. Back Contact panels can be the difference between permit approval and project denial.

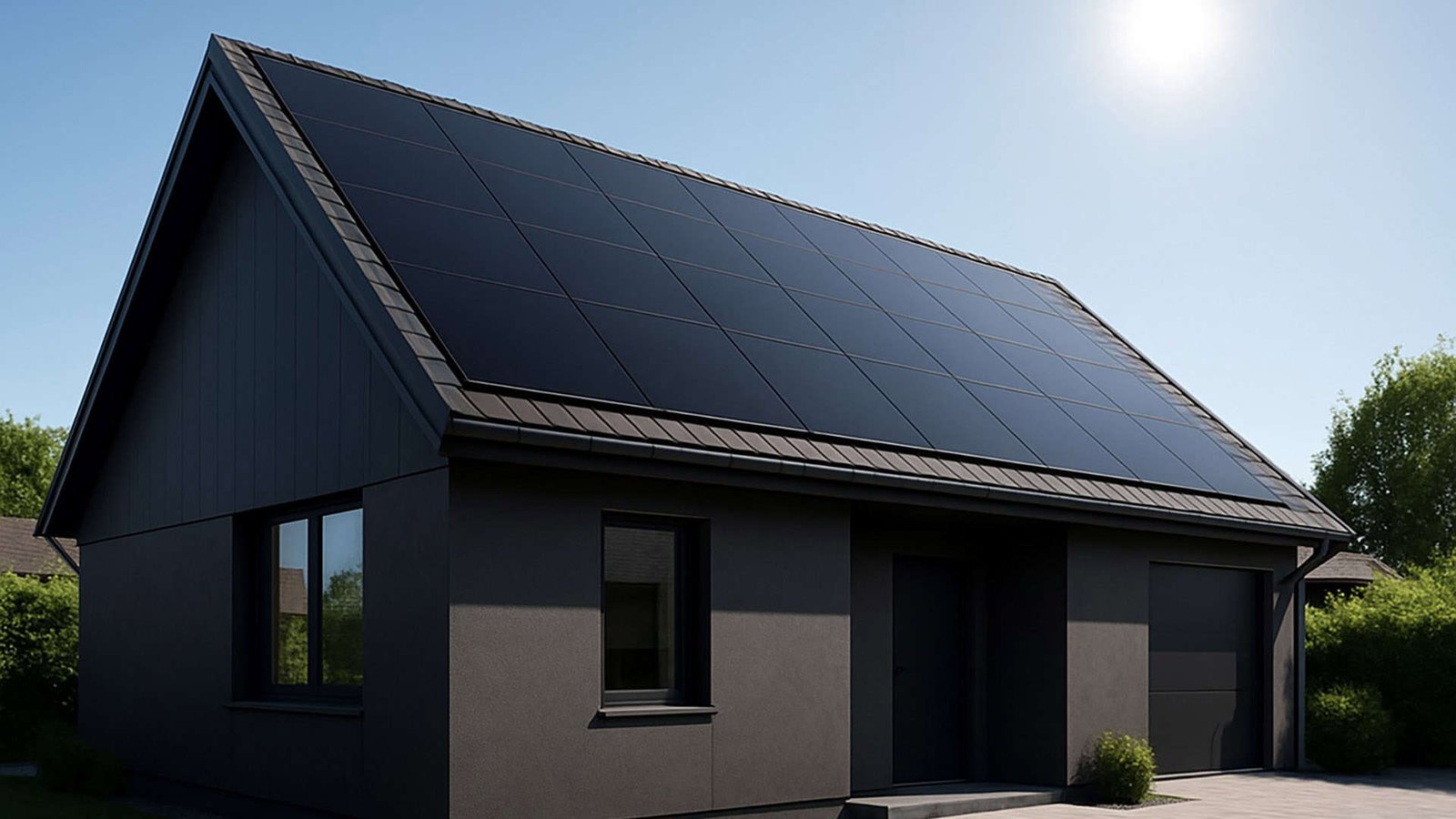

🏘️ Dense Residential Areas

Urban and suburban solar installations face neighbor complaints about light pollution. A solar array on one building can reflect intensely into adjacent windows, creating intolerable conditions for neighbors.

Back Contact modules with low-glare surfaces minimize these conflicts. The minimal, scattered reflection doesn’t disturb neighboring buildings. The all-black aesthetic also appeals to architects and building owners who don’t want visible grid lines disrupting building aesthetics.

Legal consideration: In some jurisdictions, proven glare impacts can result in nuisance lawsuits or forced panel removal. Low-glare panels are risk mitigation.

🚌 Commercial Vehicles and Mobile Applications

Flexible ETFE-based BC panels are the only practical choice for mobile applications. Standard rigid glass panels would:

• Create moving glare hazards as the vehicle moves
• Add excessive weight (glass panels weigh 15-20 kg/m²)
• Risk cracking from vibration and road shock
• Cannot conform to curved surfaces (RV roofs, boat decks)

The lightweight, flexible, low-glare ETFE panels provide power without these problems. Typical applications include:

• Recreational vehicles and campers
• Marine vessels and yachts
• Commercial trucks and delivery vehicles
• Emergency response vehicles
• Temporary/mobile military installations

Specifying Low-Glare Panels: Technical Requirements

If you’re planning a solar project in a glare-sensitive location, here’s exactly what to specify when ordering panels. Use this as a checklist for your RFQ (Request for Quotation).

For Rigid Installations (Rooftops, Ground Mounts)

✓ Cell Technology (CRITICAL):

• Specify: “Back Contact,” “HPBC,” “IBC,” or “ABC” cell design
• Confirm: Zero metal lines visible on front surface
• Verify: Request photos of actual cell front surface
• Ask: “Are all busbars and fingers located on the rear of the cell?”

✓ Surface Treatment:

• Request: “Nano-scale anti-reflective coating” or “specially treated glass”
• Specify: Matte or textured cell finish (not glossy)
• Ask: “What is the surface texture specification?”

✓ Performance Verification (ESSENTIAL):

• Request: Total Solar Reflectivity (TSR) specification
• Require: Third-party test data from CPVT, TÜV Rheinland, Fraunhofer ISE, or equivalent accredited lab
• Target: TSR ≤2.5% for glare-sensitive applications
• Obtain: Certified test reports, not just manufacturer datasheets

✓ Documentation for Permitting:

• Request: Reflectivity data suitable for SGHAT input
• Obtain: Slope error specification (should be <1.0 mrad for BC glass panels)
• Get: Certification letters for submission to aviation/transportation authorities

For Flexible Installations (Vehicles, Lightweight Structures)

✓ Cell Technology:

• Specify: Back Contact cells
• Confirm: Zero front-surface metallization
• Verify: Request cell architecture diagram

✓ Cover Material (CRITICAL FOR GLARE):

• Specify: “ETFE” as the front sheet material (not TPT, not PET)
• Reference: TU Delft IEEE study (DOI: 10.1109/JPHOTOV.2024.3463961) if vendor questions specification
• Require: Material certification from manufacturer

✓ Surface Finish (MOST IMPORTANT):

• EXPLICITLY STATE: “Textured,” “matte,” or “fabric finish” ETFE required
• EXPLICITLY PROHIBIT: Glossy or smooth finishes are NOT acceptable
• Request: Specular reflectance specification (must be <0.5% for matte ETFE)
• Obtain: Surface finish samples before placing order
• Verify: Physical inspection of sample under sunlight

✓ Performance Data:

• Request: Specular and diffuse reflectance measurements
• Ask: Slope error specification (should be 10-15 mrad for textured ETFE)
• Obtain: Angular reflectance data (10° to 80° incidence)

❓ Six Essential Questions to Ask Manufacturers

1. Is this a Back Contact cell design with zero front-surface metal?
2. What is the measured Total Solar Reflectivity? Can you provide certified test data from an accredited lab?
3. For ETFE panels: What is the surface finish and measured specular reflectance?
4. Can you provide the scatter angle or slope error specification for glare modeling?
5. Has this exact panel model been used in aviation, highway, or other glare-sensitive projects?
6. Can you provide completed glare assessment reports using SGHAT or similar tools for projects using these panels?

📊 Formal Glare Assessment Parameters for SGHAT

For critical applications (airports, highways, government facilities), run a formal glare assessment using SGHAT before finalizing your panel selection. Use these verified input values based on panel type:

Panel Type	Reflectivity (%)	Slope Error (mrad)	Surface Type
Glass-based BC	1.7-2.5	0.1-1.0	Low scatter/absorption
ETFE-based BC	<0.5	10-15	Diffuse scatter
Conventional	4-10	0.1	Specular + glint

Using these parameters: Input into SGHAT (free tool from Sandia Labs) along with panel location, tilt, azimuth, and receptor locations (air traffic control tower, runway approaches, highway positions, residential windows). The tool generates annual glare occurrence predictions with hazard levels (green/yellow/red zones).

Beyond Glare: Additional Considerations

💡 Additional Benefits of Glass-Based BC Modules

• Higher efficiency: 24-25.4% efficiency means 15-20% fewer panels needed for same power output. This reduces balance-of-system costs (racking, wiring, labor).
• Better aesthetics: All-black appearance with no visible grid lines looks professional and modern. Important for commercial buildings, high-end residential, LEED projects.
• Longer warranties: Premium BC modules often come with 30-year product warranties and 30-40 year performance warranties (vs 12-25 years for conventional). Lower degradation rates mean better long-term ROI.
• Lower temperature coefficient: BC panels perform better in hot climates. Typical temp coefficient: -0.26%/°C vs -0.35%/°C for conventional PERC.

⚡ Additional Benefits of ETFE-Based Flexible Modules

• Weight savings: 70-80% lighter than glass panels (typical: 2-3 kg/m² vs 12-15 kg/m² for glass). Critical for vehicle applications, retrofit installations, weight-restricted roofs.
• Flexibility: Can conform to curved surfaces with radii down to 30° (varies by manufacturer). Enables installations impossible with rigid panels.
• Durability in motion: Resists cracking from vibration and impact. No glass to shatter. Better for mobile applications, high-wind zones, hail-prone areas.
• Faster installation: Lightweight panels install faster, reducing labor costs. Can be installed by smaller crews without heavy equipment.

💰 Cost-Benefit Analysis for Glare-Sensitive Locations

Back Contact technology typically costs 10-30% more than conventional panels. However, for glare-sensitive locations, the premium often pays for itself through:

• Faster permitting: Fewer objections from aviation authorities, transportation departments, neighbors. Avoided delays can save months of carrying costs.
• Avoiding project cancellations: Some projects are impossible with conventional panels. BC panels enable projects that would otherwise be rejected.
• Preventing legal disputes: Glare nuisance lawsuits can cost $50,000-$500,000+ in legal fees, even if you win. Prevention is cheaper.
• Meeting safety requirements: Aviation and transportation authorities increasingly mandate low-glare panels. Non-compliance blocks project approval.
• Higher efficiency offset: 24-25% efficiency vs 20-22% means 12-20% fewer panels. This partially offsets the premium through reduced BOS costs.
• Better financing terms: Lower-risk projects (no glare complaints, solid permits) may qualify for better interest rates on project financing.

Common Misconceptions Debunked

❌ Myth: All black panels are low-glare.
✓ Reality: You need black cells AND proper surface treatment AND Back Contact design working together. A glossy black conventional panel with visible busbars will still create significant glare. The black color reduces silicon reflection slightly, but metal busbars still create intense glint. All three factors must be present.

❌ Myth: Flexible panels automatically have less glare.
✓ Reality: Some flexible panels use smooth TPT or PET covers that create substantial glare. Material type (ETFE) and surface finish (textured) determine performance, not flexibility alone. You must specify both ETFE material AND textured finish.

❌ Myth: Anti-reflective coatings on glass are enough.
✓ Reality: AR coatings reduce glass reflection from ~8% to ~2-4%, which helps. But they do nothing about metal busbar glint—which is often the brighter source (99.28% brighter than cell surface per CPVT testing). You need Back Contact technology to eliminate busbar glint.

❌ Myth: Glare is only a problem for aviation.
✓ Reality: Highways, residential neighbors, building occupants, wildlife, and even agricultural workers can be affected. We’ve seen projects blocked by homeowner associations, transportation departments, and local planning boards—not just aviation authorities.

❌ Myth: Glare assessments are optional.
✓ Reality: Many jurisdictions now mandate glare assessments for projects near airports (typically within 5 miles), highways (within 500-1000 feet), or residential areas. Check local requirements early in project planning.

The Future of Low-Glare Solar

As solar installations increase, glare concerns will only grow. Regulations are getting stricter. Public awareness is rising. Projects that once slipped through approval now face serious scrutiny. Industry trends indicate:

• Stricter regulations: More jurisdictions requiring mandatory glare assessments (2025 trend)
• Higher standards: “Yellow zone” glare increasingly considered unacceptable, not just “red zone”
• Expanded scope: Glare assessments required at greater distances from sensitive receptors
• Technology shift: Industry analysts predict BC technology market share will grow from ~5% (2024) to 20-30% by 2030 as costs decline

Back Contact technology combined with low-glare surfaces isn’t optional anymore for sensitive locations. Aviation authorities increasingly require formal proof of low-glare performance. Transportation departments want assurance that roadside solar won’t endanger drivers. Homeowner associations scrutinize appearance and glare impacts.

The good news? The technology is mature and available now. You don’t need to compromise on energy production to achieve low glare. Modern BC modules deliver industry-leading efficiency (24-25.4%) while solving the reflection problem. Major manufacturers (LONGi, Aiko, Maxeon) have significant production capacity—these aren’t experimental panels.

✅ Summary: Verified Performance Data

Glass-based BC modules (verified data):

• Up to 74.5% reflectivity reduction vs conventional TOPCon (CPVT testing, LONGi HPBC)
• 99.28% busbar brightness reduction—eliminating glint (CPVT testing)
• 0.9% Total Solar Reflectivity (OTM Labs Singapore, SAC-certified)
• 24-25.4% module efficiency (Fraunhofer ISE, multiple manufacturers)
• Successfully deployed at Chinese airport, March 2025 (LONGi press release)

ETFE-based BC modules (research data):

• Specular reflectance <0.5% for textured ETFE (TU Delft IEEE Journal, 2024)
• Highly diffuse scatter pattern—10-15 mrad vs 0.1 mrad glass (TU Delft)
• 80-90% less glare than conventional glass (TU Delft comparative research)
• Reflection “comfortably below ocular discomfort thresholds” (TU Delft conclusion)

Real-world validation:

• Airport deployment confirmed (most rigorous glare requirements)
• Proven assessment methodology via SGHAT (Sandia National Laboratories)
• Multiple manufacturers with production capacity (LONGi, Aiko, Maxeon)
• Independent verification by accredited labs (CPVT, OTM, Fraunhofer, ISFH)

All data sources cited are publicly verifiable through accredited testing laboratories and peer-reviewed research publications.

🎯 Ready to Explore Low-Glare Solar Solutions?

If you’re planning a solar project in a glare-sensitive location—near an airport, along a highway, or in a residential area—Back Contact panels with low-glare surface treatments aren’t just nice to have. They may be the only viable path to project approval.

The combination eliminates the two main sources of solar panel glare: front-surface metal grid reflections (99.28% reduction) and specular surface reflection (50-90% reduction). You get clean energy without the safety hazards or neighbor complaints that often plague solar installations.

Whether you’re a project developer, procurement manager, or facility owner, understanding glare performance should be part of your panel selection criteria. The investment in specialized low-glare panels often pays off through faster permitting, fewer complaints, safer operations, and avoiding project delays or cancellations.

Get Expert Guidance on Low-Glare Solar Solutions

Our team specializes in customized solar solutions for challenging installations.

Contact Couleenergy:

• Email: info@couleenergy.com
• Phone: +1 737 702 0119

Minimum order quantities start at 100 pieces. Serving distributors, installers, EPCs, and OEM partners globally.

Let’s work together to make your solar project both powerful and glare-free—backed by verified science, independent testing, and proven real-world performance.
