| Model | CLM-080M-36 Series |
|---|---|
| Solar Cell | M2(156.75mm), G1(158mm), M6(166mm) |
| Dimensions LxWxH | 770mm x 670mm x 30mm, Customizable |
| Weight | 6.0kg |
| Glass | 3.2mm Tempered |
| Pmax | 75/80/85/90 Watts |
| Vmp | 18.1/18.2/18.4/18.7V |
| Imp | 4.14/4.40/4.62/4.81A |
| Voc | 22.1/22.3/22.4/22.7V |
| Isc | 4.39/4.66/4.90/5.11A |
| Junction Box | ≧ IP67 Rated |
| Connectors & Cable | MC4, 2.5/4.0mm², 90cm |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000V DC |
| Max. Series Fuse Rating | 10A |
| Product Warranty | 10 Years |
| Performance Warranty | 25 Years |
| Certificates & Standards | IEC 61215 & IEC 61730 |

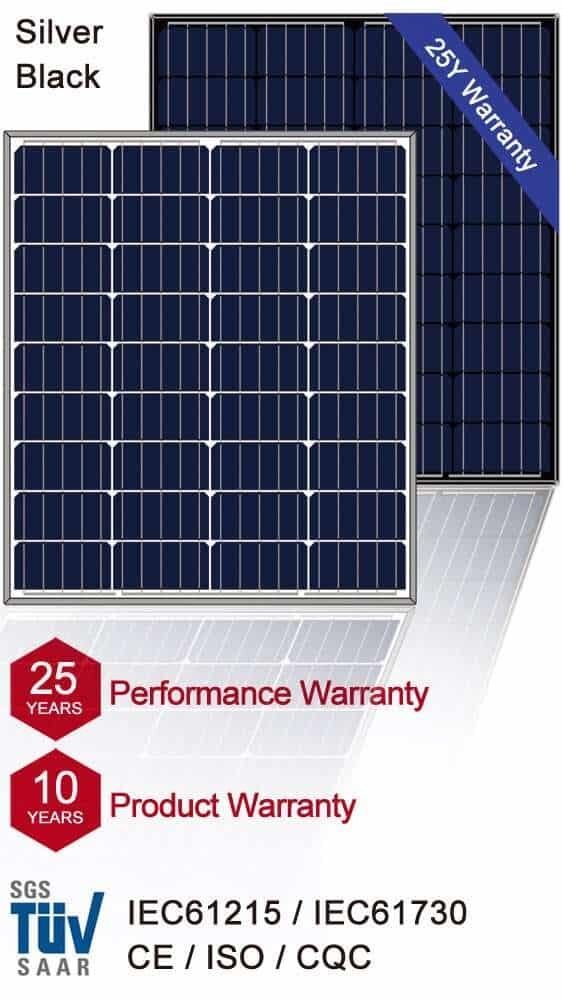

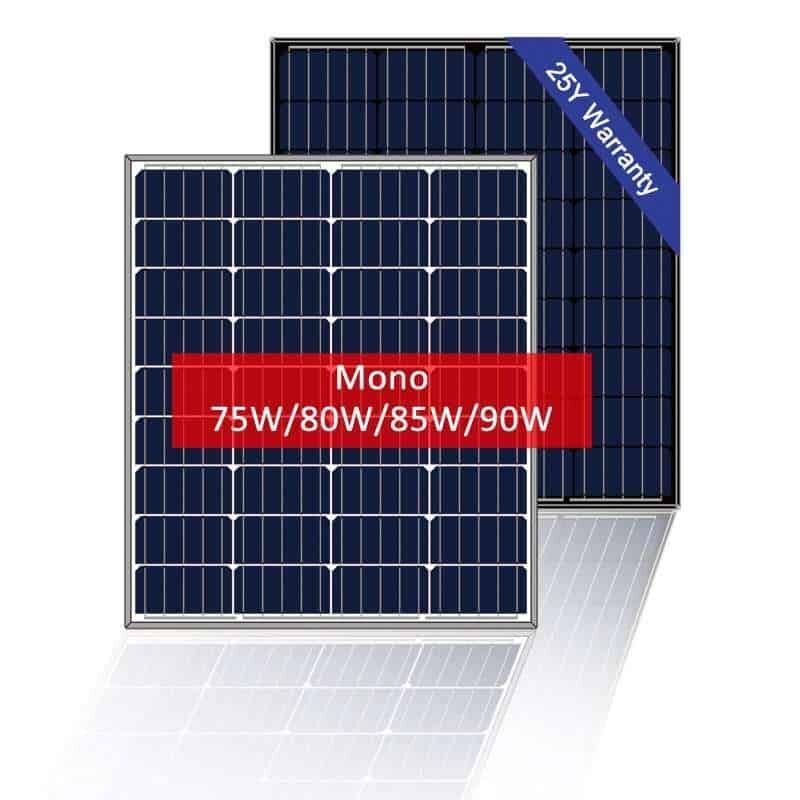

Mono Solar Module 80W
Versatile 80W mono solar panel by Couleenergy. Compact size with pre-drilled mounting holes for easy installation. Built-in bypass diodes minimize power drop during partial shading. Ideal for 12V battery systems in mobile and remote applications. Ships worldwide with flexible payment options. Available in 75W-90W variants. Customizable branding.
$0.15
About This Solar Panel
Couleenergy 80W Mono Solar Panels are perfect for RVs, boats, cabins, or backup power. These panels are small enough to carry but powerful enough to charge batteries and run small devices.
Main Benefits
Makes More Power in Small Spaces
These special high-efficiency mono cells make more electricity in less space than regular panels.
Works When It’s Cloudy
Couleenergy solar panels work in many weather conditions – sunny days, cloudy days, and even light rain.
Lasts a Long Time
Comes with 10-year product warranty and 25-year power warranty. This panel is built to last.
Use It Anywhere
Perfect size for fixed spots or moving around. Not too big, not too small.
Save Money Over Time
Costs more at first than cheaper panels, but works better and lasts longer, saving you money.
Add More Panels Later
Start with one panel now and add more later as you need more power.
Ways to Use This Panel
For RVs and Vans
Put on your RV roof to charge batteries while camping. No need for noisy generators.
For Boats
Mount on your boat to power lights, GPS, and small devices without running the engine.
For Cabins
Give power to weekend homes away from power lines. Run lights and charge phones.
For Emergency Power
Connect to a battery to have backup power ready for storms or power outages.
For Farms
Power fences, water pumps, or cameras in fields far from electrical lines.
For Camping
Bring to camping trips to charge phones, run LED lights, and power small devices.
Technical Information
| Specification | Details |
|---|---|
| Model Number | CLM-080M-36 Series |
| Brand | Couleenergy (Your brand name available) |
| Power Options | 75W / 80W / 85W / 90W |
| Minimum Order | 1 pallet |
| Lead Time | 7-15 days after payment |
| Certificates | IEC61215, IEC61730 |
Shipping & Payment
- Shipping Methods: By air or by sea from China
- Delivery Time: usually 15-40 days by sea, 5-7 days by air
- Payment Terms: T/T, L/C, D/P, Paypal, Western Union
- Packaging: Export-standard cartons and pallets
- Sample Available: Yes, with shipping cost
Our Warranty
- 10-Year Product Warranty: We fix or replace if panel has problems
- 25-Year Power Warranty: Panel keeps making at least 80% of rated power after 25 years
- After-Sale Support: 24-hour email response, technical help always available
Order Now
Get Couleenergy 80W Mono Solar Panel today. We can put your brand name on the panels (OEM available).
Tell Us What You Need
