Remark: customized frame color and cable length available upon request.
Module Type: CL150M6-36 Series
Brand: Coulee (OEM Available)
Maximum Power: 150Watt / 160Watt / 170Watt / 180Watt / 185Watt
Lead Time: In 7 working days for quantity ≤ 20000pcs
Lead Time: Negotiable when quantity ＞ 20000pcs
Shipping: By air or by sea from China
Payment Terms: T/T, L/C, D/P, Paypal, Western Union
10-Year Product Warranty
25-Year Performance Warranty
IEC61215, IEC61730 Certified Product

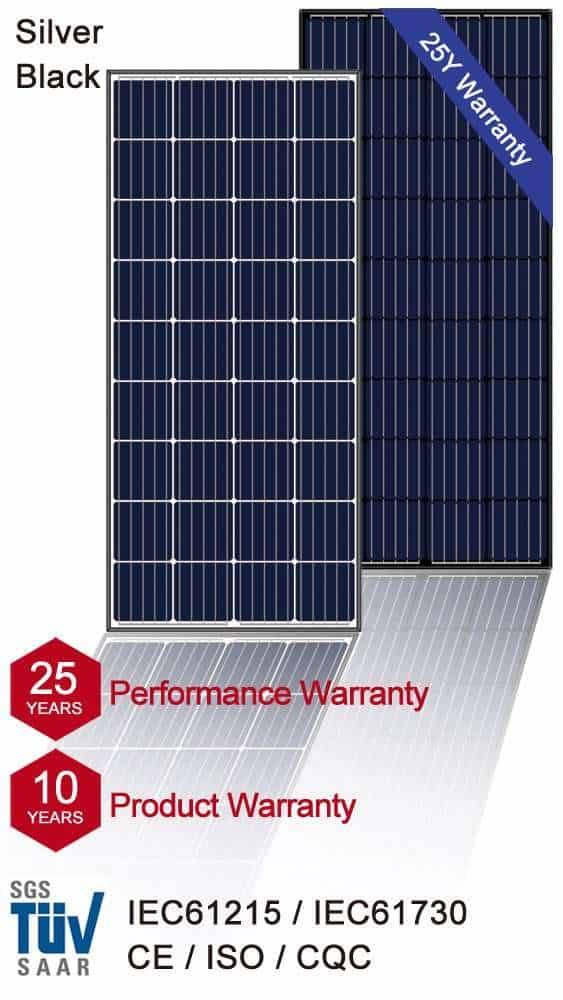

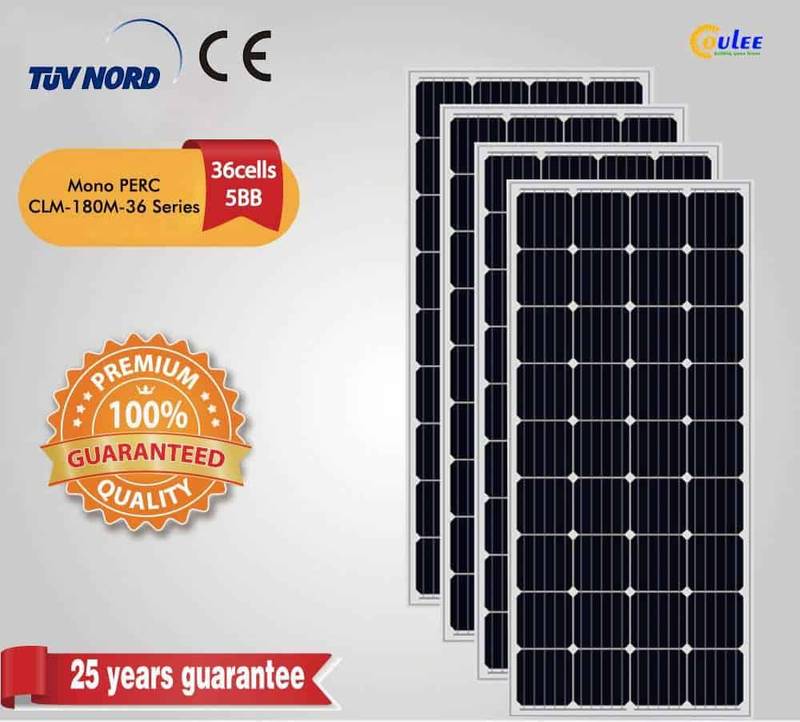

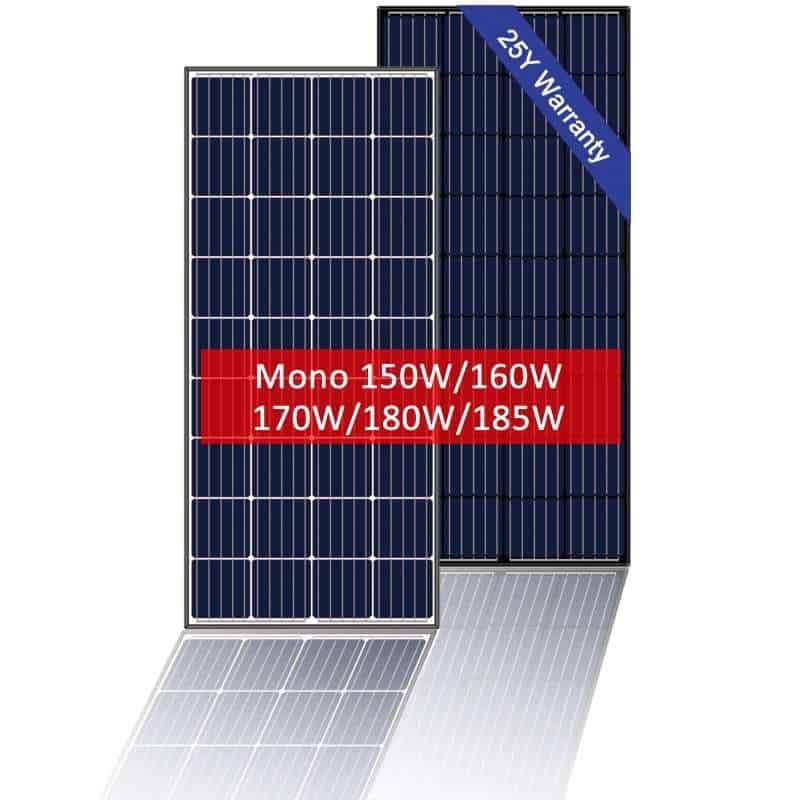

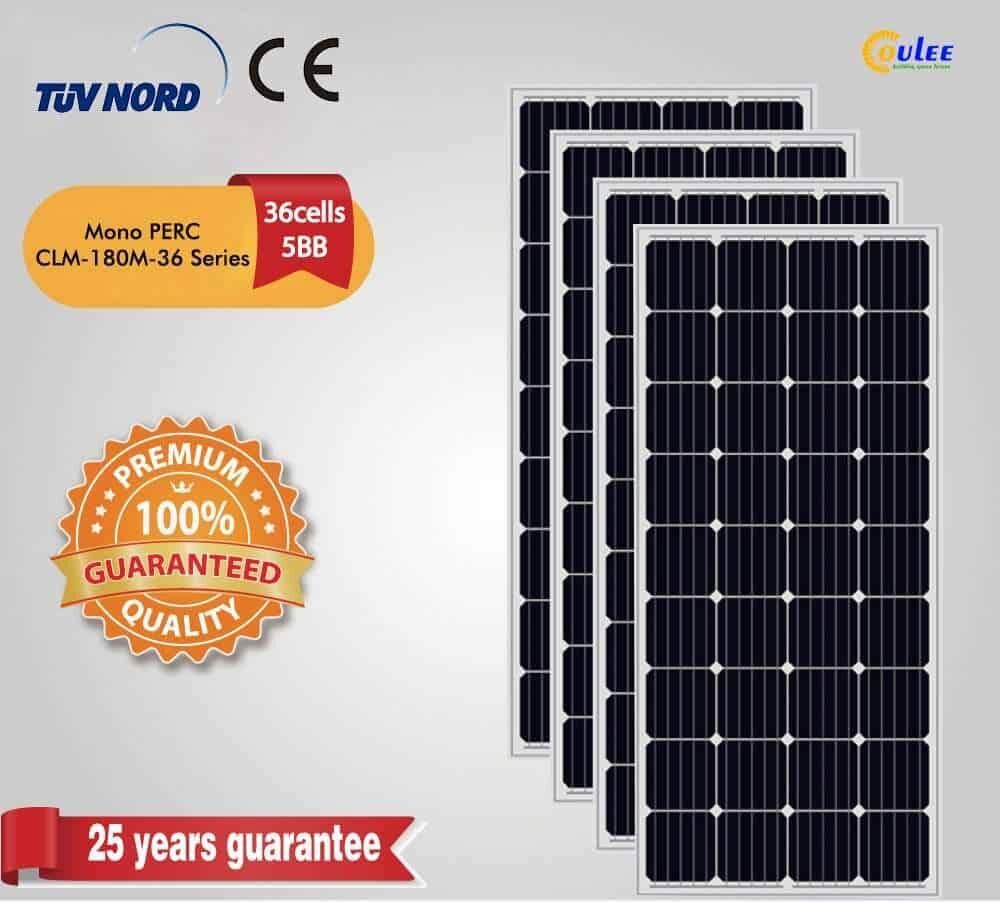

Coulee Limited’s TUV certified 150watt, 160watt, 170watt, 180watt, 185watt monocrystalline solar panel (CL150M6-36 / CL160M6-36 / CL170M6-36 / CL180M6-36 / CL185M6-36) is ideal for recharging small electronics while being away from the Power Grid. This exceptional panel is small and light-weight, making it easy to store, reposition when needed. Featuring an IP75 junction box with MC4 plugs, connecting the panel to a charge controller or additional panels is as easy as 1-2-3. The panel can withstand heavy wind load 2400Pa & snow load 5400Pa. Start producing free, clean power from the sun with Coulee Limited solar panels!
Specifications
| Module Type | CL150M6-36 | CL160M6-36 | CL170M6-36 | CL180M6-36 | CL185M6-36 |
|---|---|---|---|---|---|
| Maximum Power at STC - Pmax | 150Wp | 160Wp | 170Wp | 180Wp | 185Wp |
| Maximum Power Voltage - Vmp | 18.1V | 18.2V | 18.4V | 18.6V | 18.8V |
| Maximum Power Current - Imp | 8.29A | 8.79A | 9.24A | 9.68A | 9.84A |
| Open Circuit Voltage - Voc | 22.1V | 22.2V | 22.4V | 22.6V | 22.8V |
| Short Circuit Current - Isc | 8.69A | 9.32A | 9.79A | 10.26A | 10.33A |
| Temperature Coefficients of Pmax | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ | -0.45%/℃ |
| Temperature Coefficients of Voc | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ | -0.35%/℃ |
| Temperature Coefficients of Isc | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ | +0.04%/℃ |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC:
Irradiance: 1000W/m²
Cell Temperature: 25°C
AM = 1.5
NOCT:
Irradiance: 800W/m²
Abmient Temperature: 20°C
AM = 1.5
Wind Speed: 1m/s
Packaging:
2pcs per Carton or 30pcs per Carton
Customized Package Available
Mechanical Characteristics
| Cell Size (mm) | 156.75 × 156.75 Mono |
|---|---|
| Module Dimensions (mm) | 1480 × 670 × 35 |
| Number of Cells | 36 (9 × 4) |
| Moduel Weight (kg) | 11.5 |
| Front Glass | 3.2mm,LowIron,TemperedGlass |
| Backsheet | TPT (White OR Black) |
| Frame | AnodizedAluminiumAlloy (Silver OR Black) |
| Junction Box (Protection Degree) | ≥ IP67 |
| Cables & Plug Connectors | 4.0mm² & MC4 Compatible, CustomizedLength |
Operating Conditions
| Max. System Voltage | 1000VDC (IEC) |
|---|---|
| Operating Temperature Range | -40℃~+85℃ |
| MaximumSeriesFuseRating (A) | 10 |
| Max. Static Load , Front (e.g., snow) | 5400Pa |
| Max. Static Load, Back (e.g., Wind) | 2400Pa |
| Max. Hailstone Load | 23m/s, 7.53g |
| NOCT | 45 ± 2℃ |
| Application Class | Class A |
