| Model | CLM-520M-BC |
|---|---|
| Solar Cell | ABC, 182mm x 91.875mm |
| Dimensions LxWxH | 1954×1134×30mm, Customizable |
| Weight | 27.2 ± 3% kg |
| Glass | 2.0 + 2.0mm coated semi tempered glass |
| Pmax | 520/510/500 Watts |
| Vmp | 37.90/38.10/38.30V |
| Imp | 13.21/13.39/13.58A |
| Voc | 45.02/45.22/45.42V |
| Isc | 14.05/14.17/14.29A |
| Junction Box | IP68, Three Diodes |
| Connectors & Cable | MC4, 4.0mm², ±1200mm (Length Customizable) |
| Operating Temperature | -40°C ~ +85°C |
| Max. Series Fuse Rating | 25A |
| Maximum System Voltage | 1500V DC |
| Packaging | 37pcs per pallet / 185pcs per 20'GP / 888pcs per 40'HC |
| Product Warranty | 25 Years |
| Performance Warranty | 30 Years |
| Certificates & Standards | IEC 61215 & IEC 61730 |

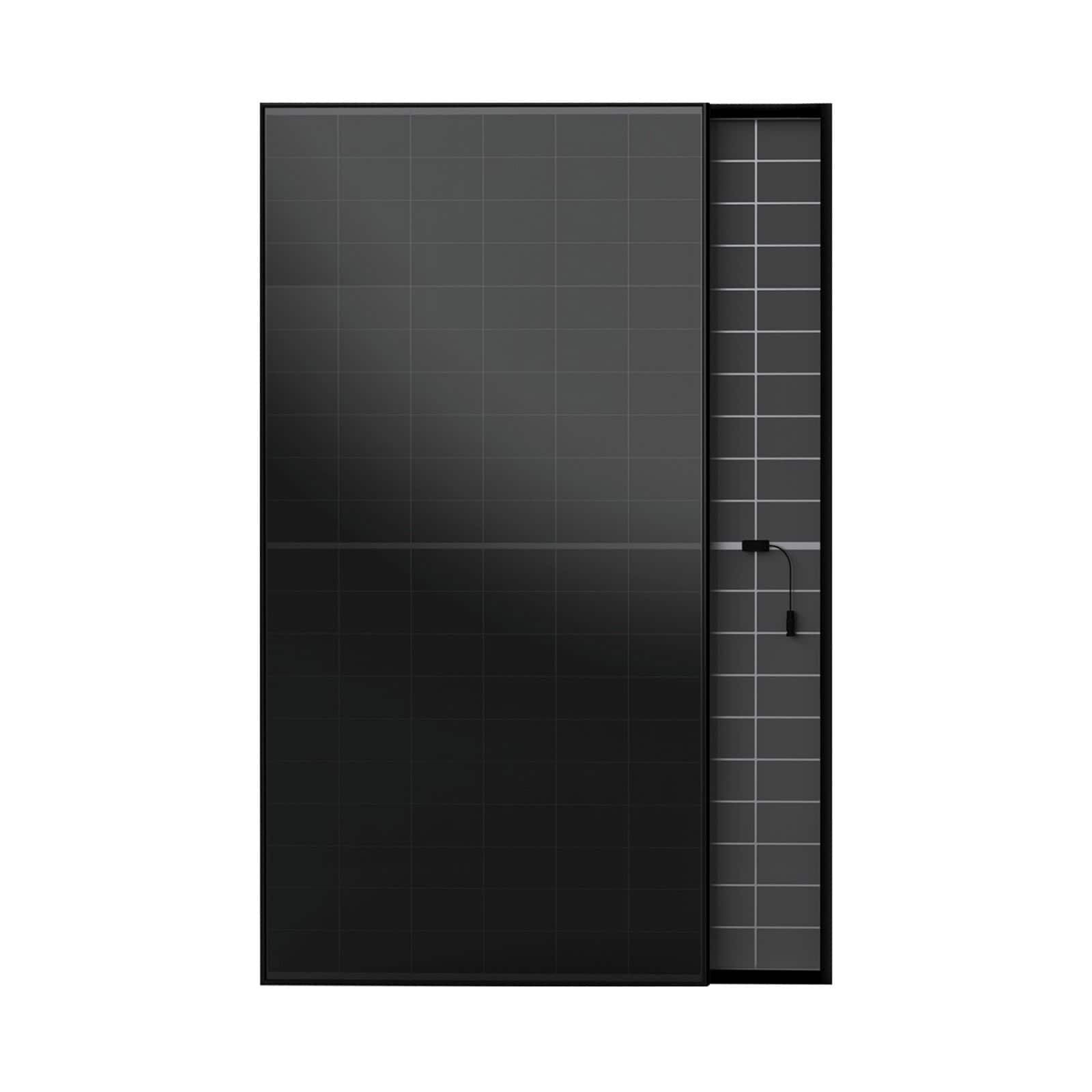

ABC Dual-Glass 500W–520W Solar Panels with Bespoke Solutions
Built with advanced N-Type ABC cells, the NEOSTAR dual glass panel delivers high power and reliability. Couleenergy supports tailored solar module production, helping customers achieve exact project goals when off-the-shelf panels fall short.
$0.13
The Aiko NEOSTAR 2S+60 is a next-generation dual glass solar panel built with N-Type ABC cells. It delivers high power, sleek aesthetics, and long-lasting reliability. Each module offers up to 520W output with 23.5% efficiency, making it a smart choice for demanding B2B projects.
Key Features:
-
High Power & Efficiency – Up to 520W with advanced N-Type ABC technology.
-
Long-Term Reliability – 30-year linear performance warranty and strong resistance to micro-cracks.
-
Dual Glass Design – 2.0 + 2.0mm semi-tempered glass for strength, fire safety, and better weather resistance.
-
Better Performance in Heat & Shade – Optimized for partial shading, with low temperature coefficient for stable output.
-
Built to Last – IEC Class A fire rating, 5400Pa front load, and hail-tested durability.
But at Couleenergy, we know not every project fits a standard panel size. That’s why we go beyond distribution. As an ABC solar panel manufacturer, we specialize in bespoke solar panel solutions. If the NEOSTAR’s 1954 × 1134 × 30 mm format doesn’t suit your design, our team can deliver tailored solar module production—from custom dimensions to unique power ratings.
This flexibility means you get the best of both worlds: world-class technology from Aiko, plus customized panels engineered to match your exact B2B requirements.
👉 Looking for a panel that doesn’t exist in the catalog? Couleenergy makes it possible. Contact us today to discuss your project.
Email: info@couleenergy.com
Phone: +1 737 702 0119
Website: couleenergy.com
Couleenergy – Your Partner in Solar Excellence
