| Model | CLM-160M-BC |
|---|---|
| Solar Cell | BC, 182mm x 30.625mm |
| Dimensions LxWxH | 1035 x 765 x 2.8mm, Customizable |
| Weight | 2.3kg |
| Glass | Japanese ETFE |
| Pmax | 160 Watts |
| Vmp | 17.6V |
| Imp | 9.10A |
| Voc | 21.9V |
| Isc | 9.56A |
| Junction Box | ≧ IP67 Rated |
| Connectors & Cable | MC4, 4.0mm², Length Customizable |
| Operating Temperature | -40°C ～ +85°C |
| Max. Series Fuse Rating | 20A |
| Maximum System Voltage | 600V DC |
| Packaging | 36pcs/CTN, Customizable |
| Product Warranty | 3 Years |
| Performance Warranty | 25 Years |
| Certificates & Standards | IEC 61215 & IEC 61730 |

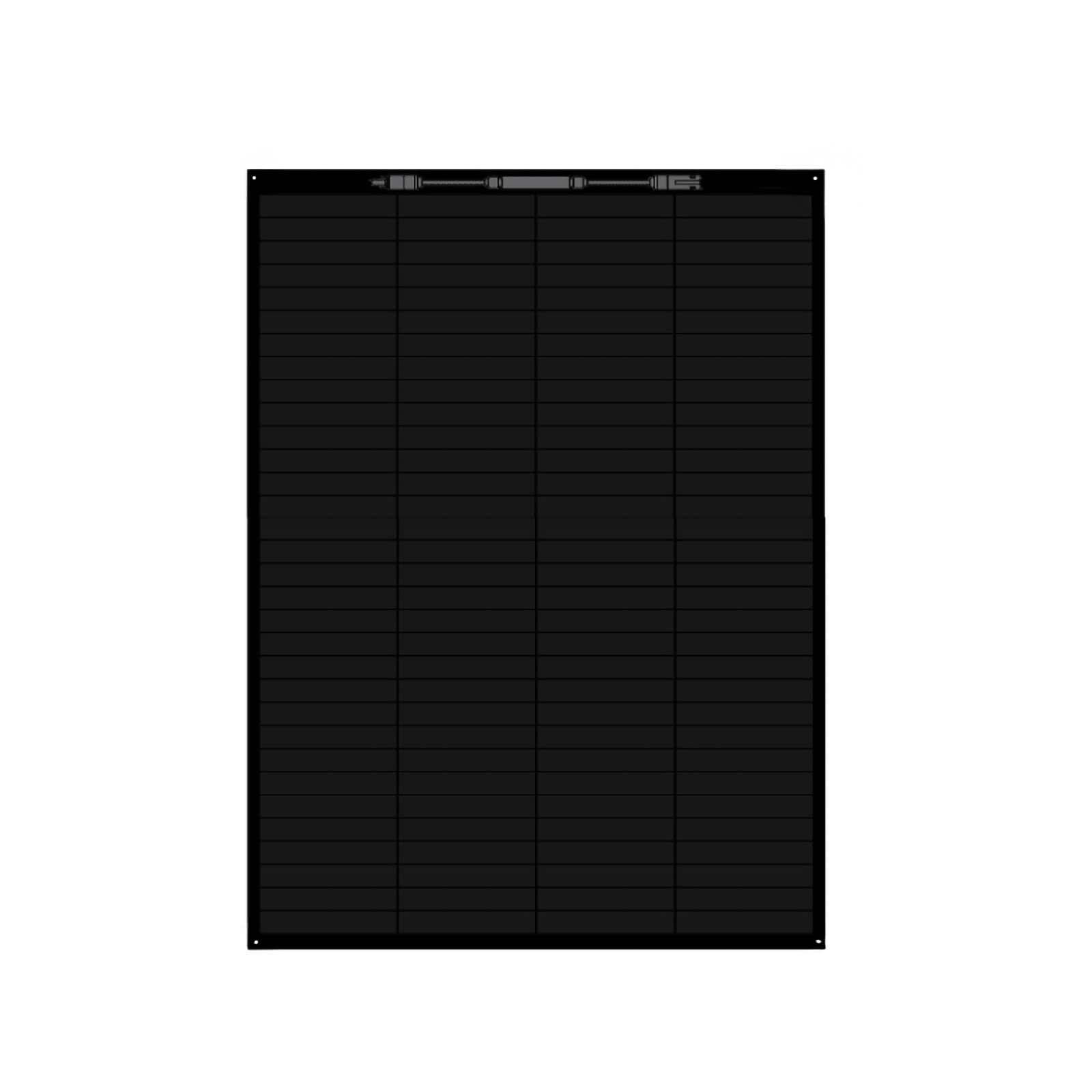

160W HPBC All-Black Lightweight Bendable Solar Panel
Designed specifically for applications where traditional rigid panels fail. Our 160W HPBC flexible solar panel weighs around 5 lbs and bends up to 240° for perfect curved surface installation on RV roofs, boat decks, and architectural features. Generates 640-800 Wh daily with superior performance in hot climates and partial shade. All-black, grid-line-free design enhances vehicle and building aesthetics. ETFE coating provides self-cleaning surface and salt-water resistance. Available with extensive customization options. Minimum order: 100 units.
$0.43
Premium Flexible Solar Solution for OEMs, Distributors & System Integrators
🏭 MOQ: 100 Units
⚡ 25.8% Cell Efficiency
🎯 Product Overview
The 160W HPBC (Hybrid Passivated Back Contact) All-Black Bendable Solar Panel represents the cutting edge of flexible photovoltaic technology. Designed specifically for solar applications requiring superior performance, aesthetic excellence, and installation versatility, this solar panel combines world-record efficiency technology with practical flexibility for curved surface applications.
Ideal for OEM manufacturers, marine equipment suppliers, RV/camper builders, architectural solar integrators, and renewable energy distributors, our 160W HPBC solar panel solves critical pain points that traditional rigid panels cannot address while delivering premium performance backed by international certifications.
💡 Why HPBC Technology Matters
🔬 Record-Breaking Efficiency
Based on technology achieving 27.81% lab efficiency (ISFH certified) and 25.4% module world record (Fraunhofer ISE certified). Commercial flexible solar panels deliver 20-22% efficiency.
🌡️ Superior Heat Tolerance
Temperature coefficient of -0.26% to -0.29%/°C delivers 7-10% more power in hot conditions compared to standard PERC technology (-0.45%/°C).
🎨 Premium All-Black Aesthetic
Zero front-side grid lines create a uniform, premium appearance perfect for architectural integration and high-end applications where aesthetics drive purchasing decisions.

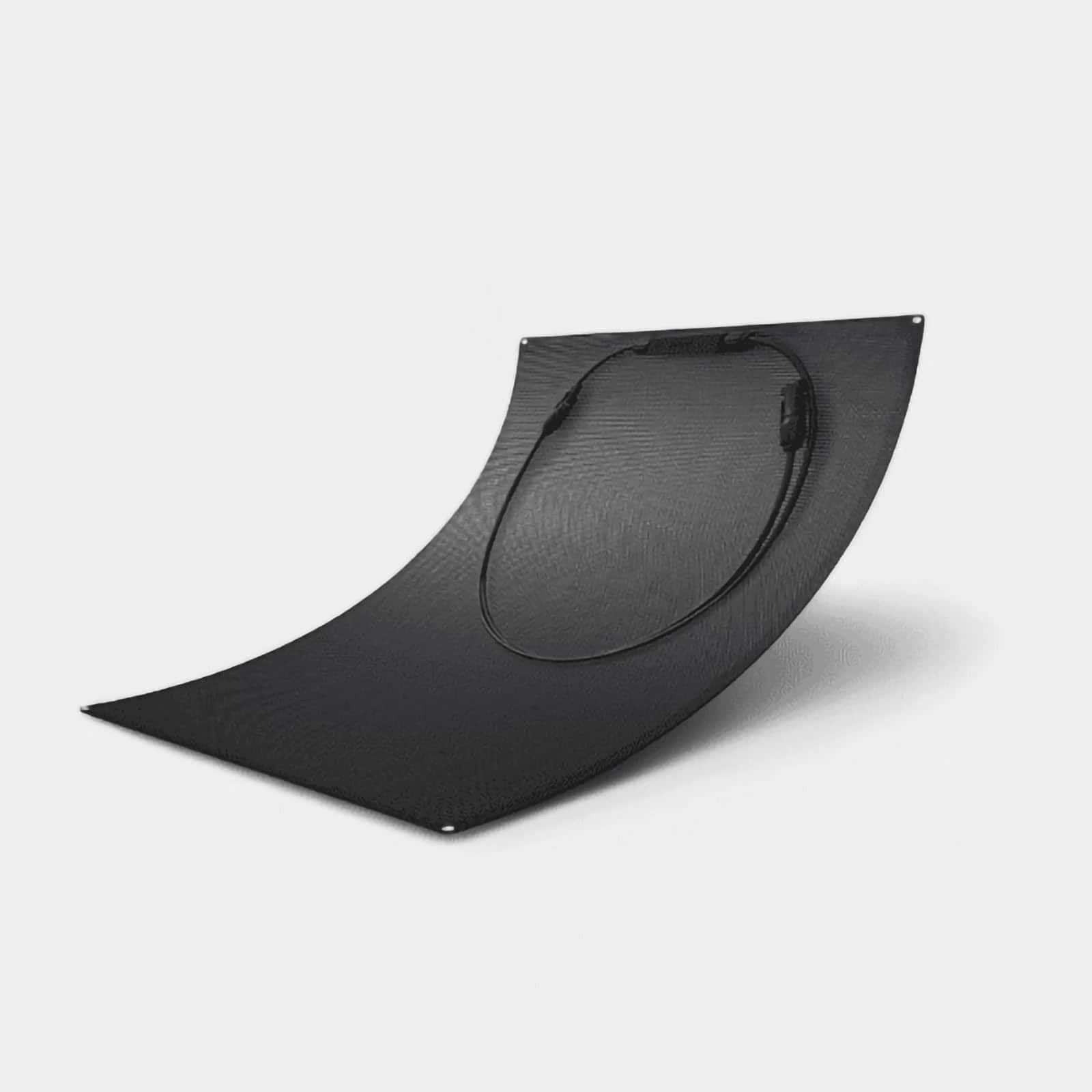

🔄 Maximum Flexibility
Bends up to 240 degrees for curved surface installations. Ultra-lightweight design (under 10 lbs) enables applications impossible with rigid panels.
🛡️ ETFE Coating Technology
85-95% light transmission with self-cleaning properties. Marine-grade durability withstands salt water, UV exposure, and extreme temperatures (-200°C to 150°C).
⚙️ Full Customization
Low 100-unit MOQ with extensive customization: dimensions, voltage, connectors, branding, and packaging. Rapid prototyping within 30 days.
📊 Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Rated Power Output | 160W ±3% | Under standard test conditions (STC) |
| Module Efficiency | 20.21% | Commercial production specification |
| Cell Technology | HPBC (Hybrid Passivated Back Contact) | Based on 27.81% lab efficiency technology |
| Surface Coating | ETFE (Ethylene Tetrafluoroethylene) | 25/50/100μm thickness, 85-95% light transmission |
| Temperature Coefficient (Pmax) | -0.26% ~ -0.29%/°C | Superior to standard PERC (-0.45%/°C) |
| Operating Temperature Range | -40°C to +85°C | Extended range for harsh environments |
| Maximum System Voltage | 600V DC | Compatible with standard inverters |
| Open Circuit Voltage (Voc) | 21.9V | Optimized for 12V/24V systems |
| Flexibility | Up to 240° bend angle | Enables curved surface installation |
| Weight | 2.3 kg | 70-80% lighter than rigid panels |
| Dimensions | Customizable | Standard and custom sizes available |
| Certifications | IEC 61215, IEC 61730 | International safety and performance standards |
| Expected Lifespan | 10-15 years | With proper installation and ventilation |
| Warranty | 3+ years | Product warranty standard |
| Daily Energy Production | 640-800 Wh/day | Based on 4-5 peak sun hours |
🚀 Value Proposition
- Market Differentiation: Offer cutting-edge HPBC technology to your customers, positioning your business as an innovation leader
- Premium Pricing Potential: Superior performance and aesthetics justify premium pricing, improving your margins
- Expanded Market Access: Serve applications impossible with rigid panels (marine, RV, architectural integration)
- Low Entry Barrier: 100-unit MOQ enables market testing and niche applications without massive inventory commitment
- Customization Flexibility: Private label and customize for your brand, creating exclusive product lines
- Direct Factory Pricing: Eliminate middlemen margins, improving your cost structure and competitiveness
- Technical Support: Engineering guidance and documentation support your sales process and customer success
- Rapid Prototyping: 30-day sample production enables quick customer demos and project validation
🎯 Target Applications & Markets
Lightweight design perfect for roof weight limits. Curved installation capability. Premium appearance enhances vehicle value.
Salt-water resistant ETFE coating. Flexible for boat deck contours. Reliable power for navigation systems.
All-black aesthetic for BIPV projects. Flexible for curved facades. Premium appearance for high-end buildings.
Full customization available. Private labeling included. Low MOQ for product development.
Portable and easy to transport. Reliable performance in remote locations. Modular expansion capability.
Compact storage. Quick deployment. Reliable backup power solution.
⚙️ Customization Options
Available Customizations (100+ Unit Orders)
| Customization Type | Options Available |
|---|---|
| Power Output | 5W to 710W+ (160W optimized for mobile applications) |
| Dimensions | Custom sizes to fit specific installation requirements |
| Voltage Configuration | 12V, 24V, 48V system optimization |
| Connector Types | MC4, Anderson, custom connectors per specification |
| Cable Length | Standard or extended lengths per project requirements |
| Branding | Private label, logo placement, custom model numbers |
| Packaging | Custom packaging with your branding and specifications |
| Frame Design | Frameless or custom mounting solutions |
| Color Options | All-black standard, custom backsheet colors available |
| Testing/Certification | Additional certifications per target market requirements |
🏭 Manufacturing & Quality Assurance
Our Manufacturing Excellence
✓ Quality Control
Multi-stage testing including EL (electroluminescence) inspection, performance verification, and durability testing.
✓ Rapid Turnaround
Prototype samples: 2-4 weeks. Production orders: 3-6 weeks from approval. Expedited options available.
✓ Engineering Support
Technical consultation within 12-48 hours. Design optimization recommendations. Installation guidance documentation.
✓ Scalable Production
From 100-unit test orders to 100,000+ unit production runs. Consistent quality at all volumes.
✓ Global Standards
Compliance support for IEC and regional certifications. Technical documentation in multiple languages.
💼 Partnership Benefits
What You Get as Our Partner
- Direct Factory Pricing: Eliminate distributor margins, maximize your profitability
- Technical Documentation: Comprehensive spec sheets, installation guides, marketing materials
- Engineering Support: Pre-sales technical consultation, custom solution design, troubleshooting assistance
- Marketing Support: Product photography, technical content, certification documentation
- Quality Guarantee: Consistent quality standards, performance testing, warranty support
- Flexible Terms: Scalable order volumes, customization without excessive MOQ, rapid prototyping
- Global Compliance: IEC certified, regional certification support, documentation in multiple languages
- Responsive Communication: Dedicated account management, transparent production updates, fast response times
📈 Market Opportunity
The flexible solar panel market is projected to reach $6.2 billion by 2033 with a CAGR of 17.2%. HPBC technology, representing the cutting edge of back-contact cell design, is predicted to become mainstream by 2030, potentially replacing current TOPCon technology as the industry standard.
Key market drivers:
- Growing RV and marine recreational vehicle market
- Increasing demand for building-integrated photovoltaics (BIPV)
- Rise of van life and nomadic living trends
- Off-grid and emergency preparedness market expansion
- Architectural emphasis on aesthetic solar integration
- Mobile and portable power requirements across industries
Position your business at the forefront of this growth by offering premium HPBC technology that serves markets traditional panels cannot reach.
🚀 Ready to Add Premium Solar to Your Product Line?
Partner with Couleenergy for cutting-edge HPBC technology, flexible customization, and responsive manufacturing support.
Contact Information:
📧 Email: info@couleenergy.com
📞 Phone: +1 737 702 0119
🌐 Website: couleenergy.com
Couleenergy – Advanced Solar Manufacturing
Specialized in HPBC technology | Low MOQ custom solutions | Direct factory access
